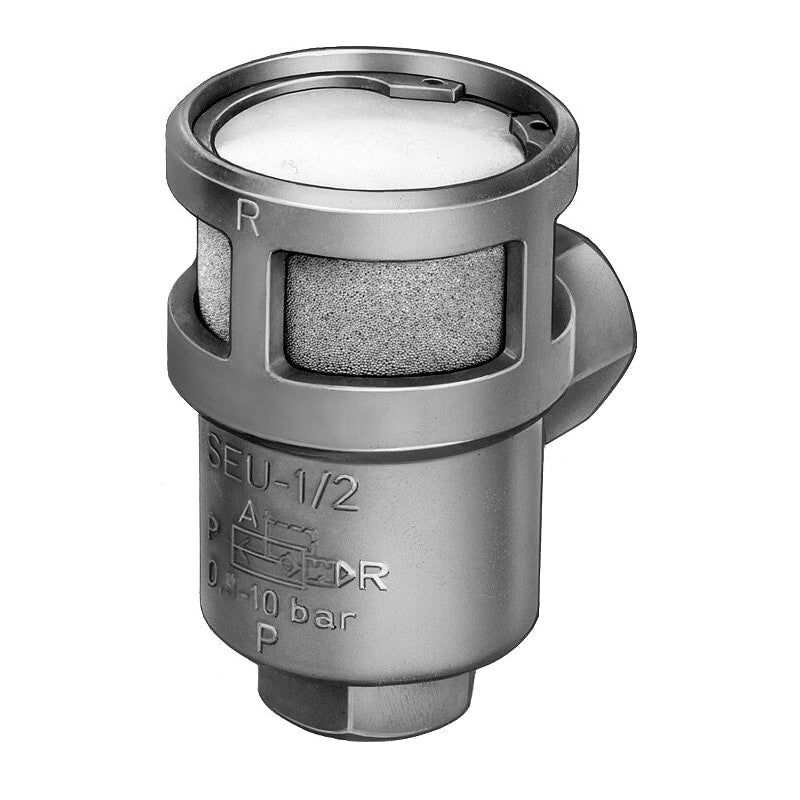

Quick exhaust valve
SEU-1/2-NPT
9801
GTIN 4052568303518
Vendor Festo
- Valve function
- Quick exhaust
- Pneumatic connection 1
- 1/2 NPT
- Standard nominal flow rate exhaust air 6->5 bar
- 4020 l/min
- Operating pressure
- 0.3 bar - 10 bar
Regular price
$169.62
Unit price
SEU-1/2-NPT is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SEU-1/2-NPT
Regular price
$169.62
Unit price
SEU-1/2-NPT is backordered and will ship as soon as it is back in stock.
Screw-in exhaust air control with balanced noise emission.
| Type code | SE |
|---|---|
| Valve function | Quick exhaust |
| Pneumatic connection 1 | G3/4 |
| Pneumatic connection 2 | G3/4 |
| Type of mounting | With through-hole |
| Standard nominal flow rate exhaust air 6->5 bar | 7500 l/min |
| Standard nominal flow rate pressurization 6->5 bar | 2500 l/min |
| Operating pressure | 0.5 bar ... 10 bar |
| Ambient temperature | -20 °C ... 75 °C |
| Housing material | AnodizedWrought aluminum alloy |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Nominal width | 19 mm |
| Mounting position | Any |
| Symbol | 00991459 |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | -20 °C ... 75 °C |
| Product weight | 710 g |
| Pneumatic connection 3 | G3/4 |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
