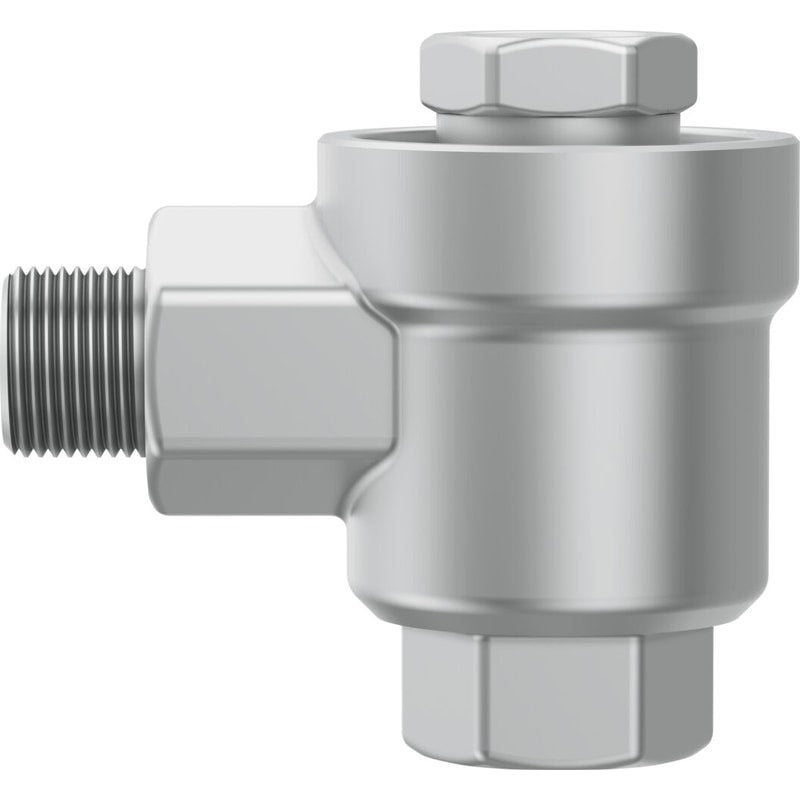

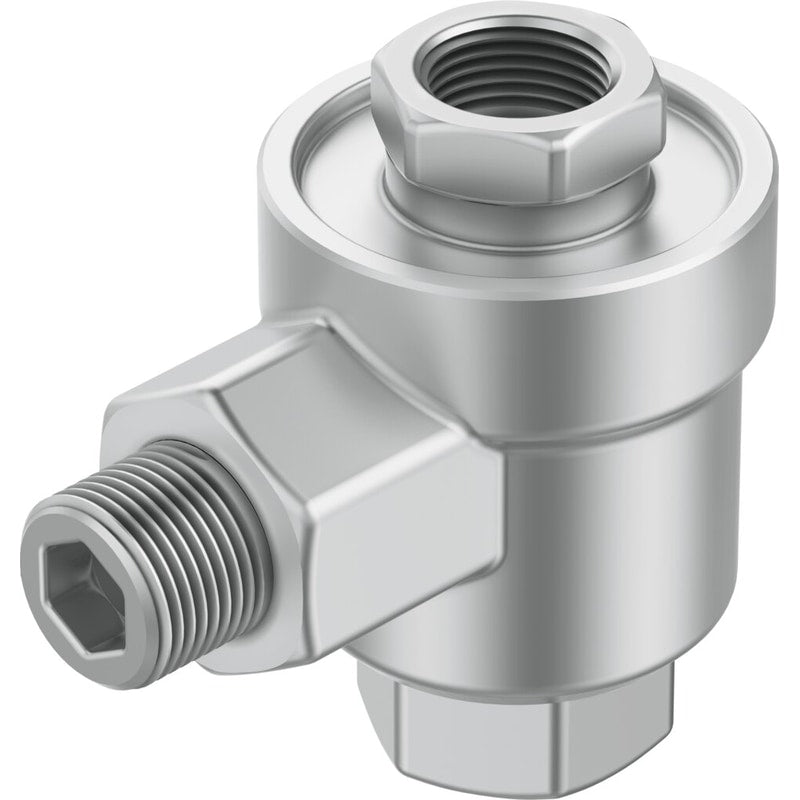

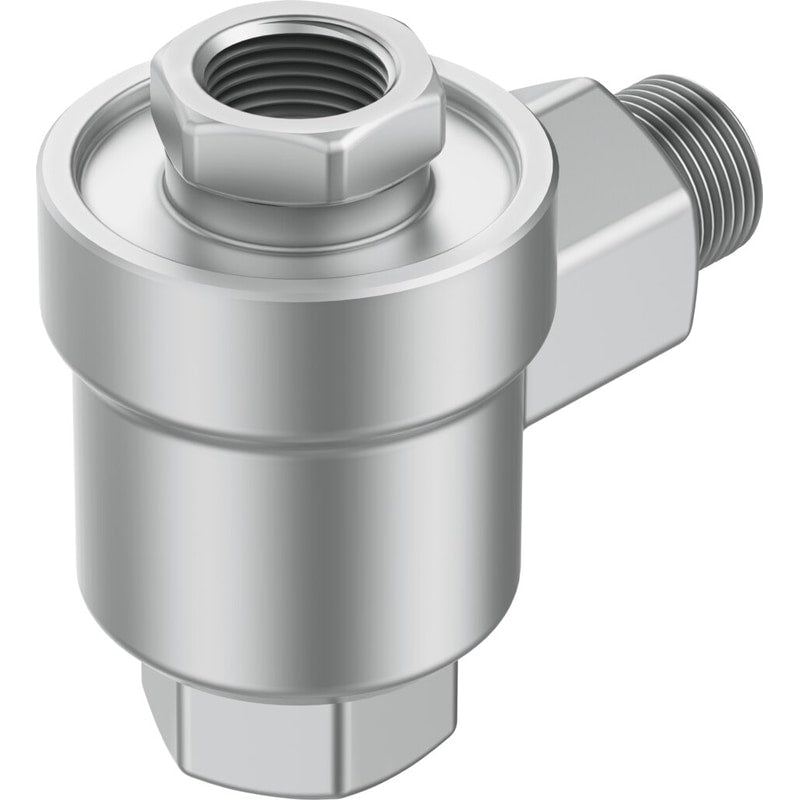

Quick exhaust valve
SE-1/4-B
9686
GTIN 4052568001988
Vendor Festo
- Valve function
- Quick exhaust
- Pneumatic connection 1
- G1/4
- Standard nominal flow rate exhaust air 6->5 bar
- 1200 l/min
- Operating pressure
- 0.5 bar - 10 bar
Regular price
$85.79
Unit price
SE-1/4-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SE-1/4-B
Regular price
$85.79
Unit price
SE-1/4-B is backordered and will ship as soon as it is back in stock.
Flat, screw-in exhaust air control with calibrated noise emission.
| Type code | VBQF-U |
|---|---|
| Valve function | Quick exhaust |
| Selection of additional function | With pneumatic muffler |
| Pneumatic connection 1 | QS-6 |
| Pneumatic connection 2 | G1/8 |
| Type of mounting | Screw-in |
| Standard flow rate exhaust 6-> 0 bar | 1300 l/min |
| Standard nominal flow rate pressurization 6->5 bar | 350 l/min |
| Operating pressure | 0.5 bar ... 10 bar |
| Ambient temperature | -10 °C ... 60 °C |
| Housing material | Die-cast zincDie-cast aluminum |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Nominal width | 5 mm |
| Mounting position | Any |
| Symbol | 00991460 |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Temperature of medium | -10 °C ... 60 °C |
| Noise level | 75 dB(A) |
| Product weight | 85.5 g |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
