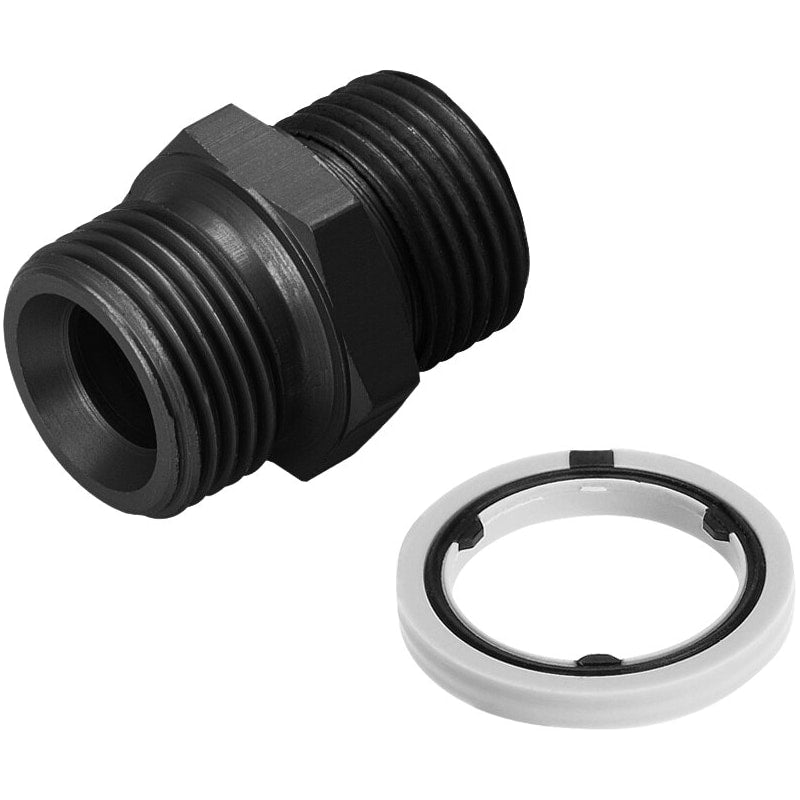

Double nipple
E-G1/8-1/8NPT
9630
GTIN 4052568303433
Vendor Festo
Regular price
$3.20
Unit price
E-G1/8-1/8NPT Double nipple is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
E-G1/8-1/8NPT
Regular price
$3.20
Unit price
E-G1/8-1/8NPT Double nipple is backordered and will ship as soon as it is back in stock.
double nipple E-G1/8-1/8NPT With 2 sealing rings. Nominal size=5,95 mm, Operating pressure complete temperature range=-0,95 - 10 bar, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:-:-], Note on operating and pilot medium=Lubricated operation possible, Corrosion resistance classification CRC=1 - Low corrosion stress
| Fitting Type | n/a |
|---|---|
| Nominal size | 5.95 mm |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Max. tightening torque, pneumatic connection 1 | 6 Nm |
| Max. tightening torque, pneumatic connection 2 | 7 Nm |
| Nominal tightening torque | 10.55 Nm |
| Tolerance for nominal tightening torque | ± 20 % |
| Product weight | 9.1 g |
| connection 1 | G1/8 |
| connection 2 | NPT1/8-27 |
| Materials note | Conforms to RoHS |
