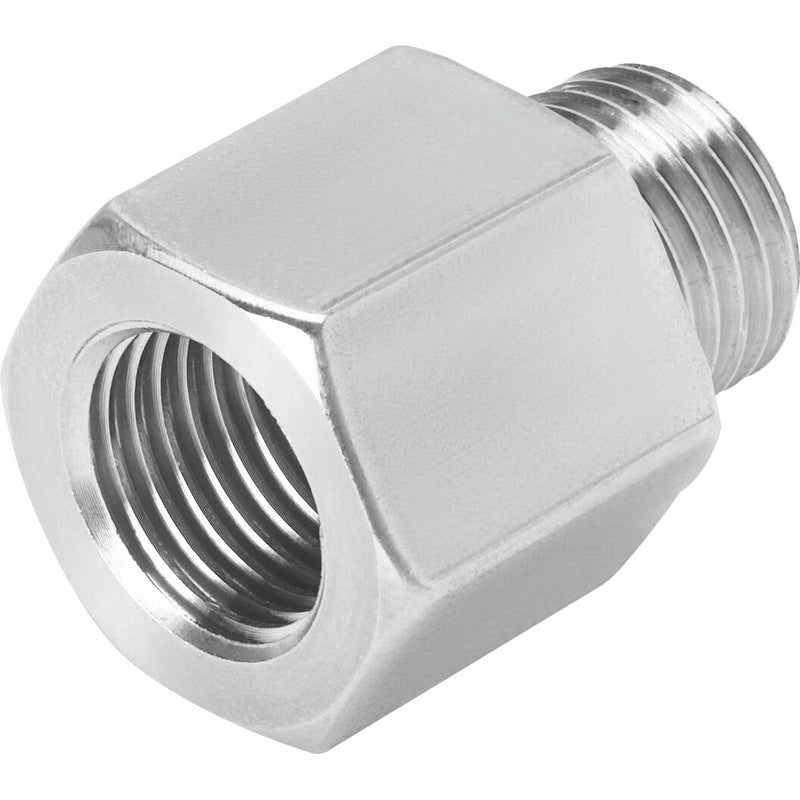

Adapter
AD-1/4NPT-G1/4-I
9625
GTIN 4052568303402
Vendor Festo
- Pneumatic connection 1
- external thread 1/4 NPT
- Pneumatic connection 2
- Internal thread G1/4
Regular price
$6.66
Unit price
AD-1/4NPT-G1/4-I Adapter is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
AD-1/4NPT-G1/4-I
Regular price
$6.66
Unit price
AD-1/4NPT-G1/4-I Adapter is backordered and will ship as soon as it is back in stock.
adapter AD-1/4NPT-G1/4-I Female thread one one side, male thread on the other. Nominal size=7,95 mm, Operating pressure complete temperature range=-0,95 - 10 bar, Corrosion resistance classification CRC=1 - Low corrosion stress, Ambient temperature=-10 - 60 °C, Max. tightening torque, pneumatic connection 1=12 Nm
| Fitting Type | n/a |
|---|---|
| Nominal size | 7.95 mm |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Max. tightening torque, pneumatic connection 1 | 12 Nm |
| Max. tightening torque, pneumatic connection 2 | 11 Nm |
| Product weight | 21 g |
| connection 1 | NPT1/4-18 |
| connection 2 | G1/4 |
| Materials note | Conforms to RoHS |
