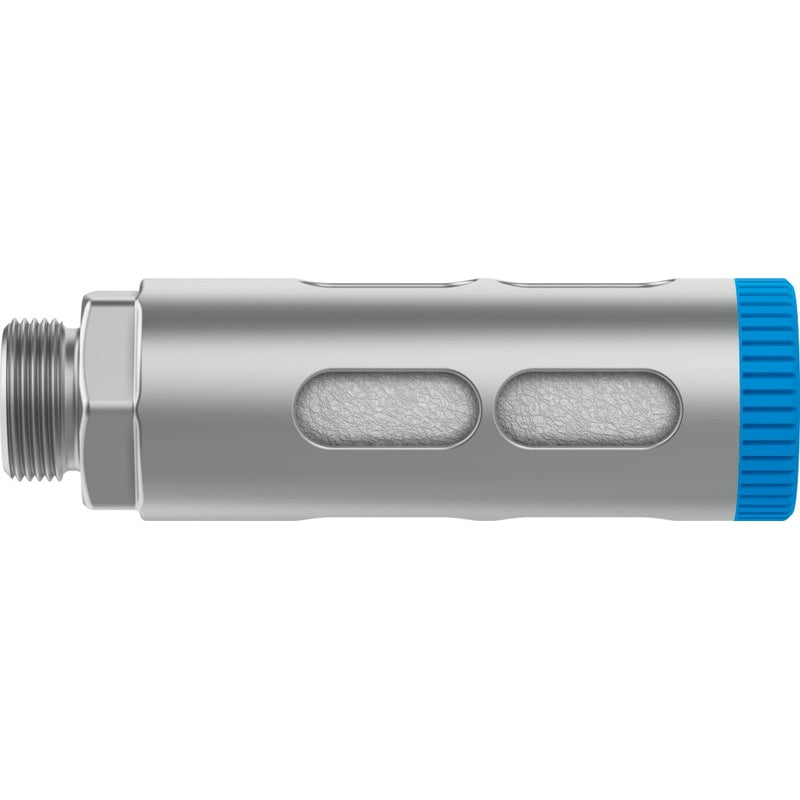

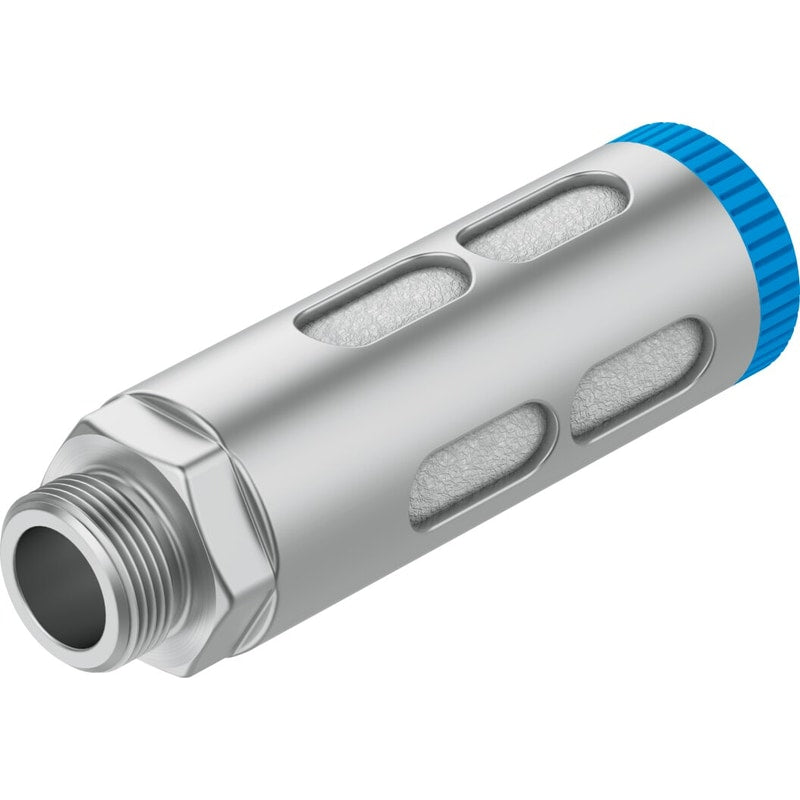

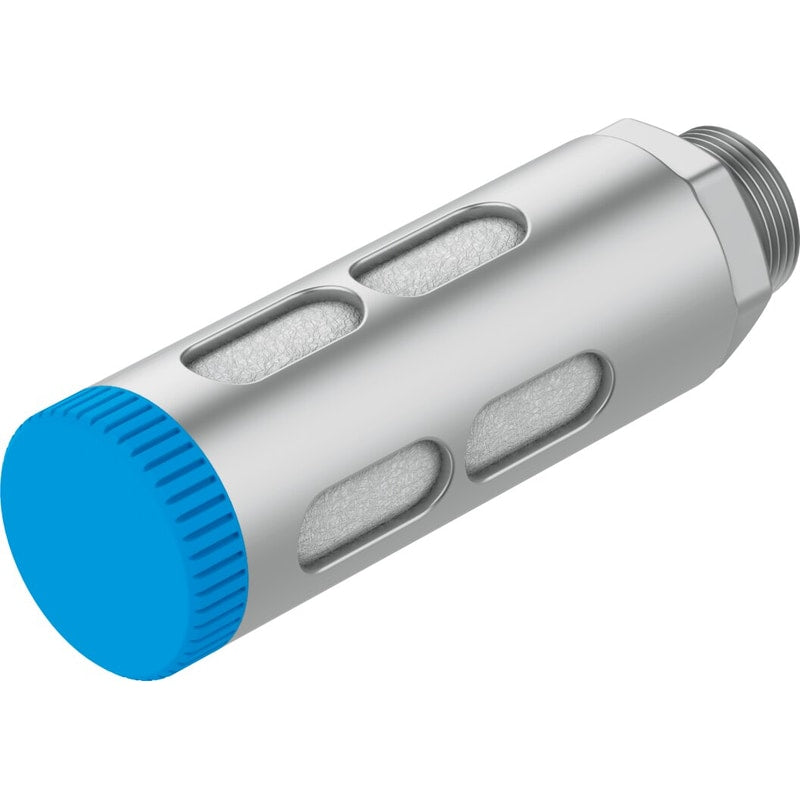

Flow control/muffler
GRU-1/2-B
9519
GTIN 4052568001919
Vendor Festo
- Valve function
- Sound pressure flow control function
- Pneumatic connection 1
- G1/2
- Adjusting element
- Slotted screw
Regular price
$62.79
Unit price
GRU-1/2-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
GRU-1/2-B
Regular price
$62.79
Unit price
GRU-1/2-B is backordered and will ship as soon as it is back in stock.
flow control/silencer GRU-1/2-B Flow control valve with integrated silencer for exhaust air flow control with certain designs of valves. Valve function=Flow control – silencer function, Pneumatic connection, port 1=G1/2, Adjusting element=Slotted head screw, Mounting type=Threaded, Standard flow rate 6 -> 0 bar=0 - 4000 l/min
| Valve function | Flow control – silencer function |
|---|---|
| connection 1 | G1/2 |
| Adjusting element | Slotted head screw |
| Mounting type | Threaded |
| Standard flow rate 6 -> 0 bar | 0 ... 4,000 l/min |
| Ambient temperature | '-10 ... 70 °C |
| Material housing | Aluminium |
| Assembly position | Any |
| Operating pressure complete temperature range | 0 ... 10 bar |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible |
| Medium temperature | '-10 ... 70 °C |
| Product weight | 100 g |
| Design | Flow Control Muffler |
