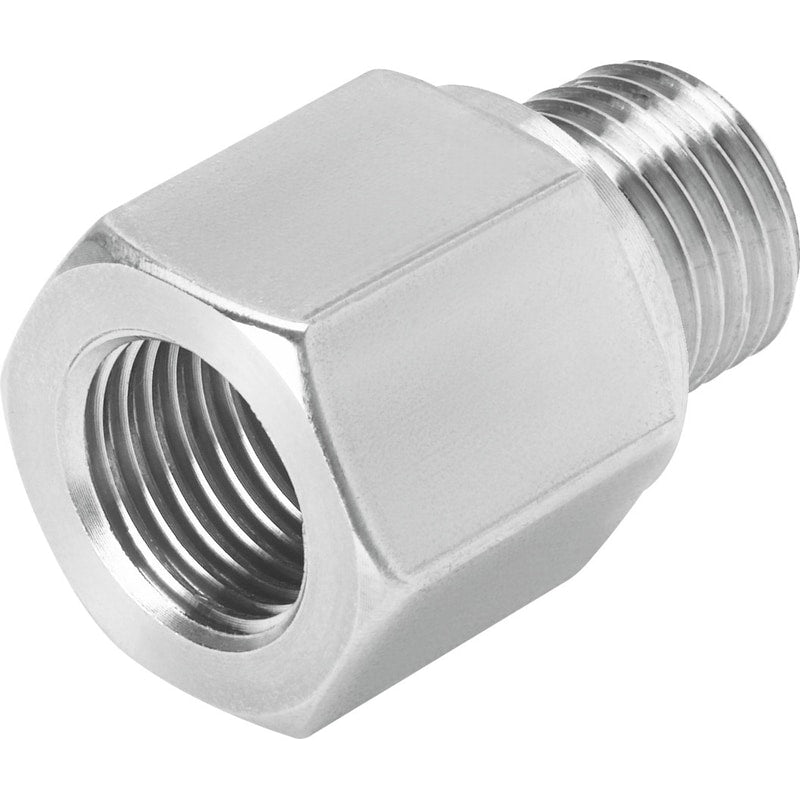

Adapter
AD-G1/2-1/2NPT-I
9398
GTIN 4052568303365
Vendor Festo
- Pneumatic connection 1
- External thread G1/2
- Pneumatic connection 2
- Female thread 1/2 NPT
Regular price
$12.15
Unit price
AD-G1/2-1/2NPT-I is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
AD-G1/2-1/2NPT-I
Regular price
$12.15
Unit price
AD-G1/2-1/2NPT-I is backordered and will ship as soon as it is back in stock.
Sold in Pack of 10 adapter AD-G1/2-1/2NPT-I Female thread one one side, male thread on the other. Nominal size=14,3 mm, Operating pressure complete temperature range=-0,95 - 10 bar, Corrosion resistance classification CRC=1 - Low corrosion stress, Ambient temperature=-10 - 60 °C, Max. tightening torque, pneumatic connection 1=40 Nm
| Fitting Type | n/a |
|---|---|
| Nominal size | 14.3 mm |
| Operating pressure complete temperature range | '-0.95 ... 10 bar |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-10 ... 60 °C |
| Max. tightening torque, pneumatic connection 1 | 40 Nm |
| Max. tightening torque, pneumatic connection 2 | 28 Nm |
| Nominal tightening torque | 47.9 Nm |
| Tolerance for nominal tightening torque | ± 20 % |
| Product weight | 51.89 g |
| connection 1 | G1/2 |
| connection 2 | NPT1/2-14 |
| Materials note | Conforms to RoHS |
