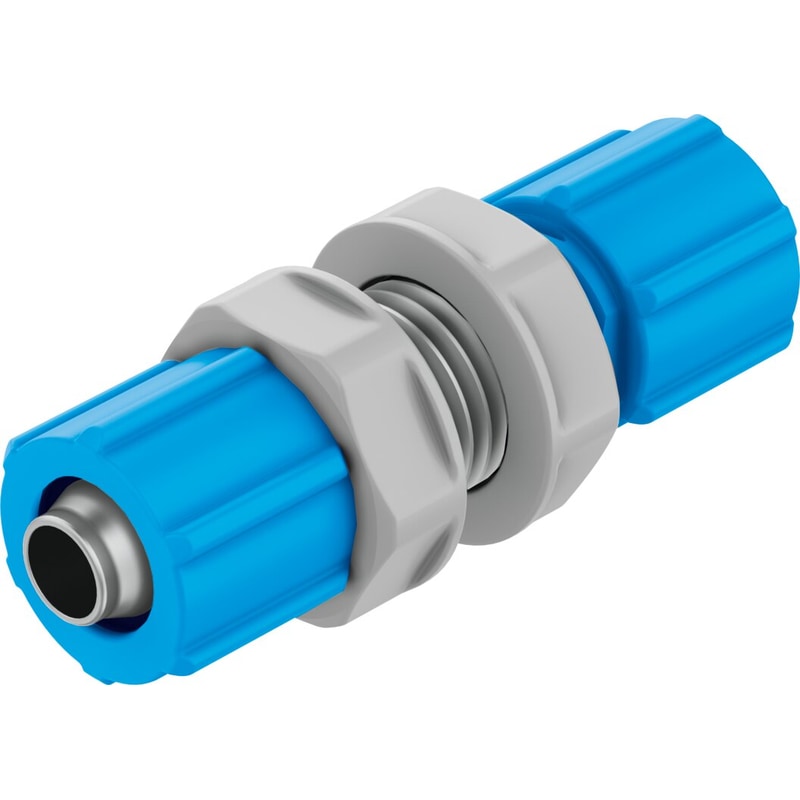

Bulkhead quick connector
SCK-PK-6-KU
9389
GTIN 4052568020675
Vendor Festo
- Pneumatic connection 1
- for pneumatic tubing outside diameter 8 mm - For barbed fitting, inside diameter 6 mm, with union nut
- Pneumatic connection 2
- for pneumatic tubing outside diameter 8 mm - for barbed fitting, inside diameter 6 mm, with nut
- Ambient temperature
- -10 °C - 60 °C
Regular price
$10.47
Unit price
SCK-PK-6-KU Bulkhead quick connector is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SCK-PK-6-KU
Regular price
$10.47
Unit price
SCK-PK-6-KU Bulkhead quick connector is backordered and will ship as soon as it is back in stock.
bulkhead quick connector SCK-PK-6-KU Polymeric design. Nominal size=5,3 mm, Assembly position=Any, Operating pressure complete temperature range=0 - 10 bar, Ambient temperature=-10 - 60 °C, Pneumatic connection, port 1=for barbed connector internal diameter 6 mm with nut
| Fitting Type | n/a |
|---|---|
| Nominal size | 5.3 mm |
| Assembly position | Any |
| Operating pressure complete temperature range | 0 ... 10 bar |
| Ambient temperature | '-10 ... 60 °C |
| connection 1 | for barbed connector internal diameter 6 mm with nut |
| Materials note | Free of copper and PTFEConforms to RoHS |
| Material housing | POM |
