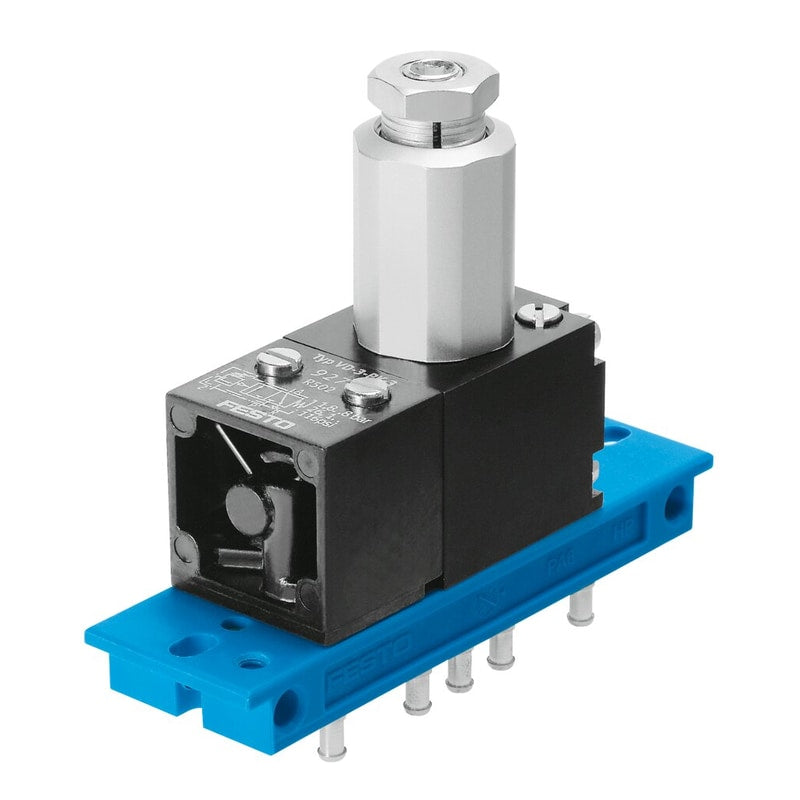

Pressure sequence valve
VD-3-PK-3
9270
GTIN 4052568008888
Vendor Festo
- Normal nominal flow rate (normalized to DIN 1343)
- 100 l/min
- Pneumatic connection 1
- PK-3
- Operating pressure
- 1.8 bar - 8 bar
Regular price
$569.29
Unit price
VD-3-PK-3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VD-3-PK-3
Regular price
$569.29
Unit price
VD-3-PK-3 is backordered and will ship as soon as it is back in stock.
pressure sequence valve VD-3-PK-3 With sub-base 2n for tube ND 3 mm. Standard nominal flow rate=100 l/min, Operating pressure=1,8 - 8 bar, Nominal size=2,5 mm, Operating medium=Compressed air in accordance with ISO8573-1:2010 [7:4:4], Note on operating and pilot medium=Lubricated operation possible (subsequently required for further operation)
| Standard nominal flow rate | 100 l/min |
|---|---|
| Operating pressure | 1.8 ... 8 bar |
| Nominal size | 2.5 mm |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC | 0 - No corrosion stress |
| Medium temperature | '-10 ... 60 °C |
| Product weight | 220 g |
| Mounting type | with through hole |
| Pneumatic connection, port 1 | PK-3 |
| Pneumatic connection, port 2 | PK-3 |
| Pneumatic connection, port 3 | PK-3 |
