Rod eye
SGS-M10
9256
GTIN 4052568065539
Vendor Festo
Regular price
$34.39
Unit price
SGS-M10 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SGS-M10
Regular price
$34.39
Unit price
SGS-M10 is backordered and will ship as soon as it is back in stock.

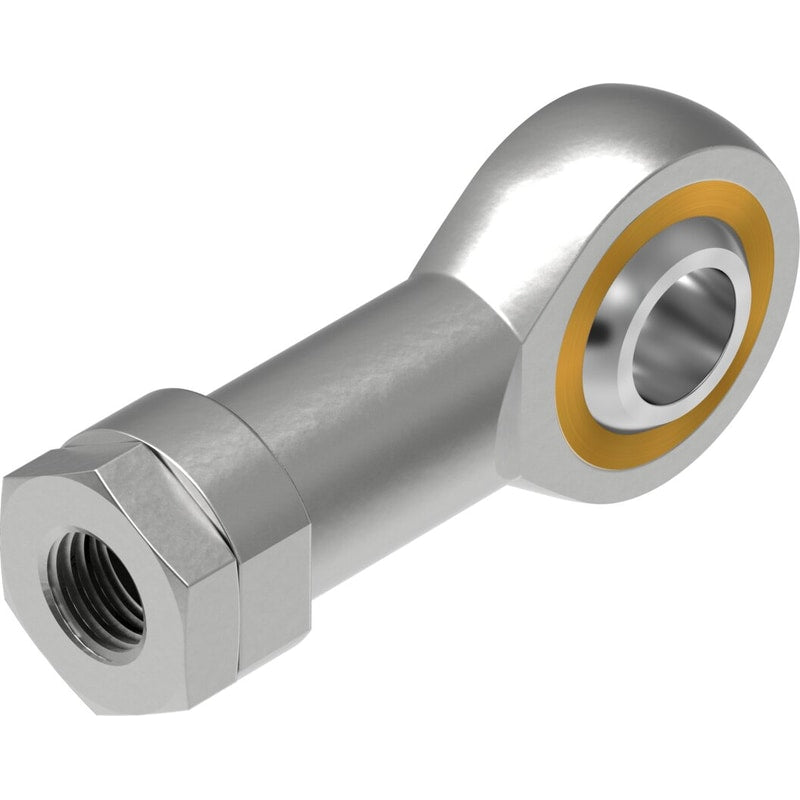

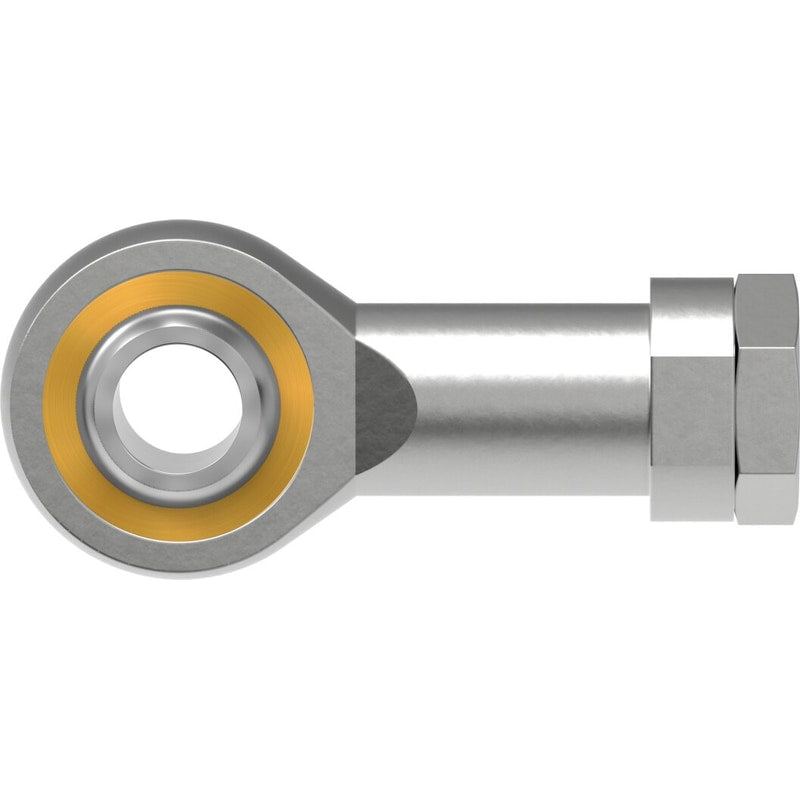

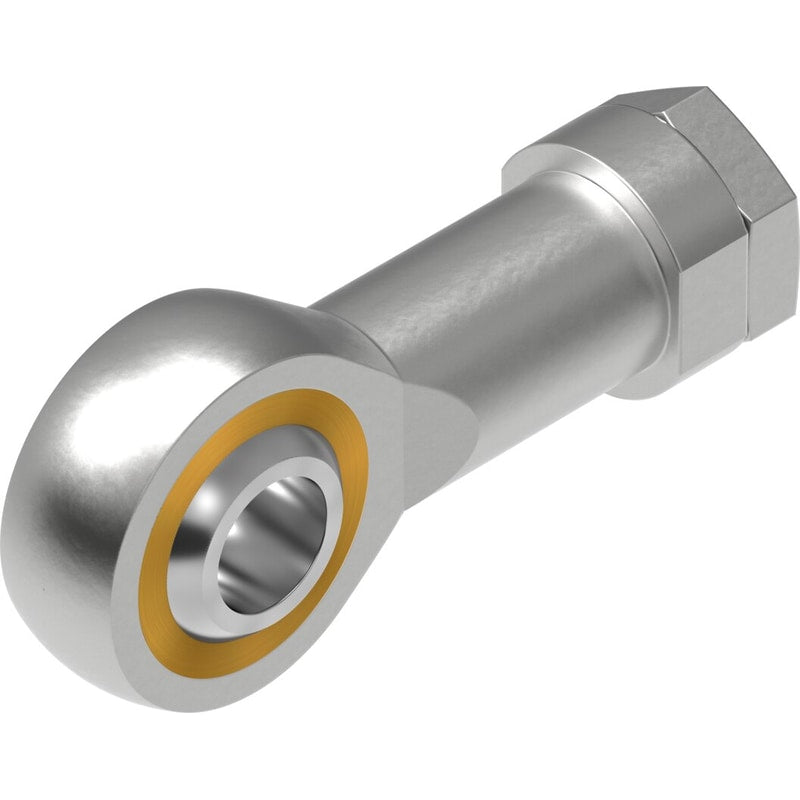

rod eye SGS-M10 With hexagonal nut, for spherical swivelling cylinder mounting (piston rod side) as per DIN ISO 8139. Size=M10, Based on the standard=ISO 12240-4, Corrosion resistance classification CRC=2 - Moderate corrosion stress, Ambient temperature=-40 - 150 °C, Product weight=88 g
| Size | M10 |
|---|---|
| Based on the standard | ISO 12240-4 |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-40 ... 150 °C |
| Product weight | 88 g |
| Materials note | Conforms to RoHS |
| Material of outer ring | Brass |
| Material housing | SteelGalvanised |
| Material of inner ring | Steel |
| Material nut | SteelGalvanised |
