SGS-M6
Regular price
$21.51
Unit price
SGS-M6 is backordered and will ship as soon as it is back in stock.

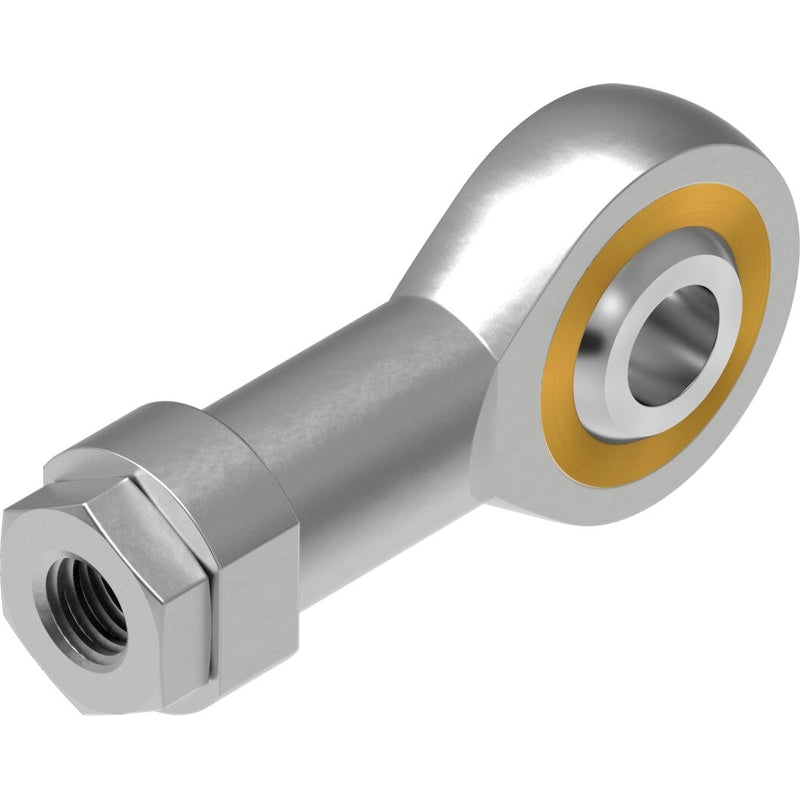

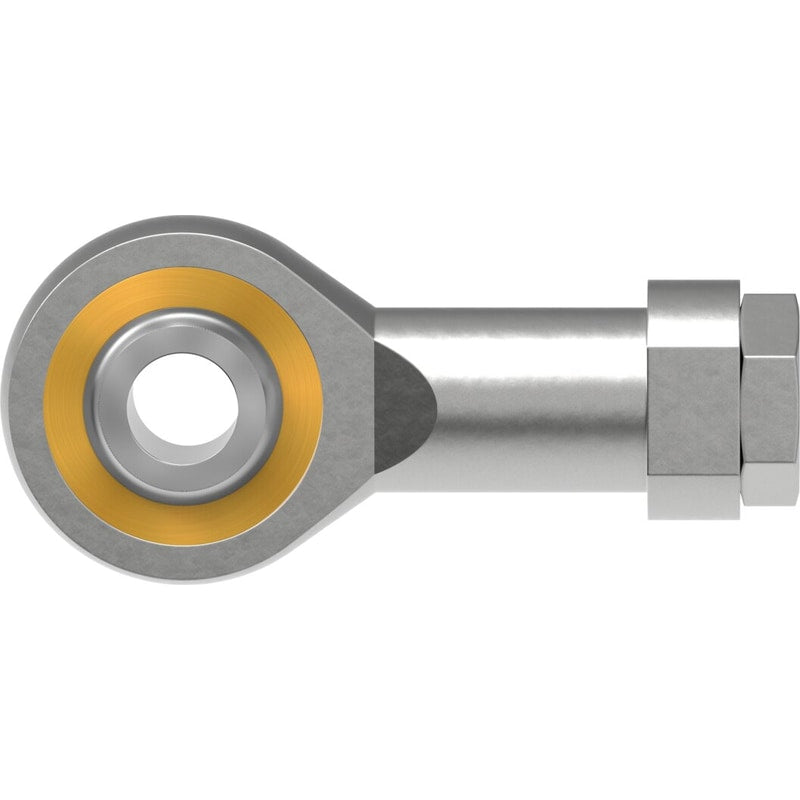

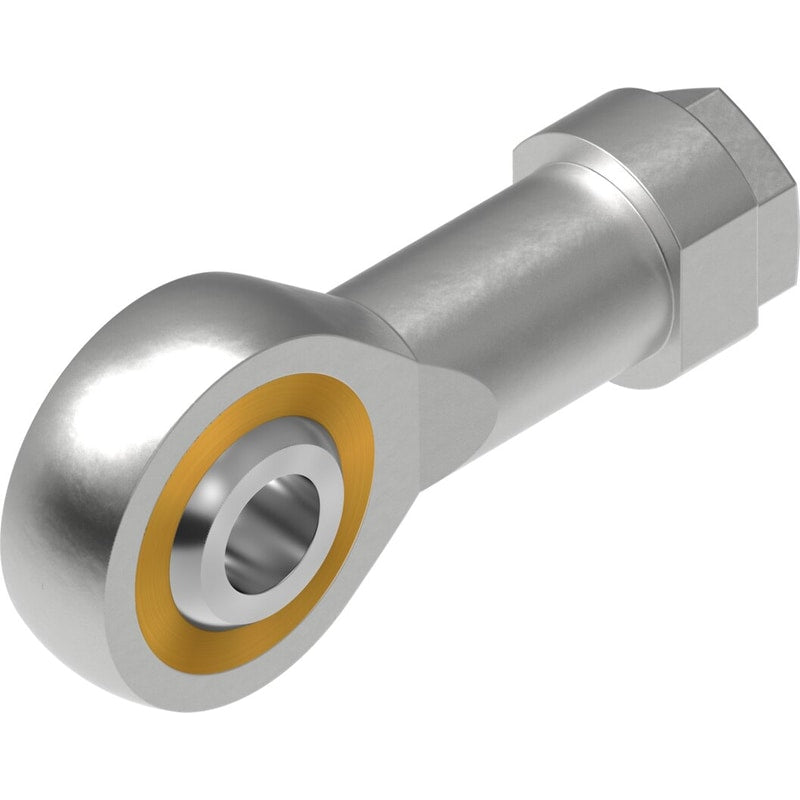

rod eye SGS-M6 With hexagonal nut, for spherical swivelling cylinder mounting (piston rod side) as per DIN ISO 8139. Size=M6, Based on the standard=ISO 12240-4, Corrosion resistance classification CRC=2 - Moderate corrosion stress, Ambient temperature=-40 - 150 °C, Product weight=29 g
| Size | M6 |
|---|---|
| Based on the standard | ISO 12240-4 |
| Corrosion resistance classification CRC | 1 - Low corrosion stress |
| Ambient temperature | '-40 ... 150 °C |
| Product weight | 29 g |
| Materials note | Conforms to RoHS |
| Material of outer ring | Brass |
| Material housing | SteelGalvanised |
| Material of inner ring | Steel |
| Material nut | SteelGalvanised |
