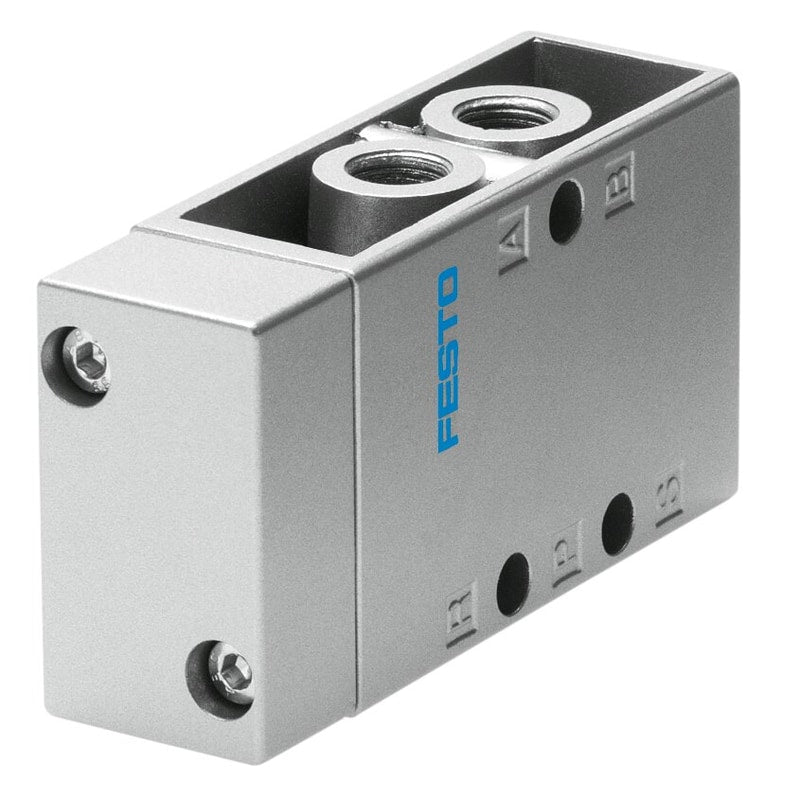

Pneumatic valve
VL-5-1/4
9199
GTIN 4052568008864
Vendor Festo
Regular price
$228.25
Unit price
VL-5-1/4 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VL-5-1/4
Regular price
$228.25
Unit price
VL-5-1/4 is backordered and will ship as soon as it is back in stock.
pneumatic valve VL-5-1/4 5/2-way function, pneumatically actuated, with spring return Valve function=5/2 monostable, Type of actuation=pneumatic, Valve size=30,5 mm, Width=30,5 mm, Standard nominal flow rate=800 l/min
| Valve function | 5/2 monostable |
|---|---|
| Type of actuation | pneumatic |
| Valve size | 30.5 mm |
| Width | 30.5 mm |
| Standard nominal flow rate | 800 l/min |
| Operating pressure | 0 ... 8 bar |
| Design structure | Poppet seat |
| Type of reset | mechanical spring |
| Protection class | IP65 |
| Authorisation | c UL us - Recognized (OL) |
| Nominal size | 7 mm |
| Grid dimension | 32 mm |
| Exhaust-air function | throttleable |
