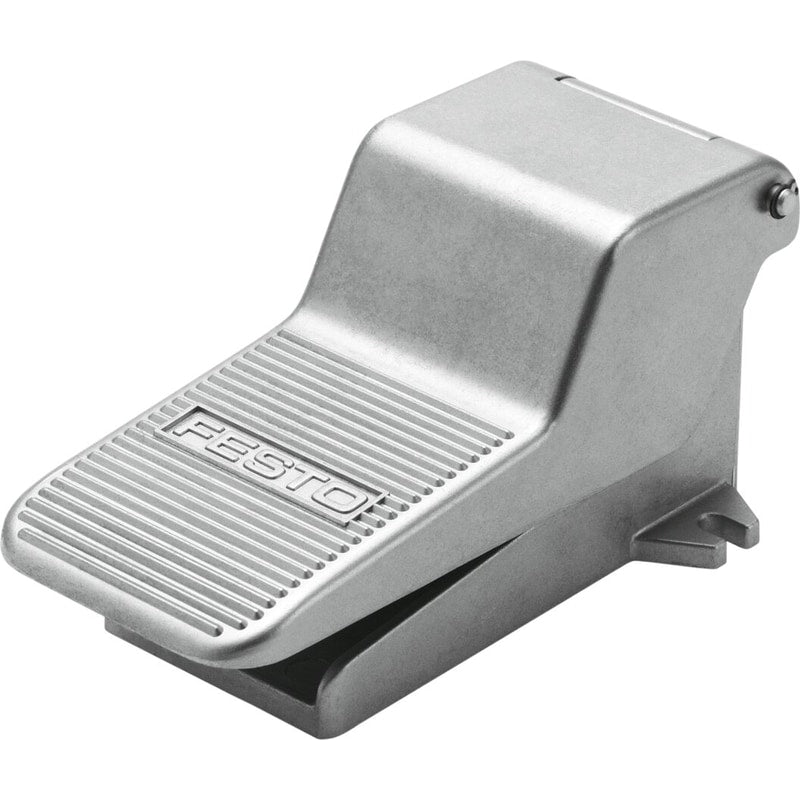

Foot valve
FO-3-1/4-B
8988
GTIN 4052568111311
Vendor Festo
Regular price
$354.69
Unit price
FO-3-1/4-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
FO-3-1/4-B
Regular price
$354.69
Unit price
FO-3-1/4-B is backordered and will ship as soon as it is back in stock.
foot valve FO-3-1/4-B Non-detenting. Valve function=3/2 open, monostable, Type of actuation=manual, Standard nominal flow rate=600 l/min, Operating pressure=-0,95 - 10 bar, Design structure=Poppet seat
| Valve function | 3/2 open, monostable |
|---|---|
| Type of actuation | manual |
| Standard nominal flow rate | 600 l/min |
| Operating pressure | '-0.95 ... 10 bar |
| Design structure | Poppet seat |
| Type of reset | mechanical spring |
| Nominal size | 7 mm |
| Assembly position | Any |
| Type of piloting | direct |
| Flow direction | non reversible |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Ambient temperature | '-10 ... 60 °C |
| Actuating force | 55 N |
