Roller lever valve
L-3-1/4-B
8982
GTIN 4052568111298
Vendor Festo
Regular price
$341.60
Unit price
L-3-1/4-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
L-3-1/4-B
Regular price
$341.60
Unit price
L-3-1/4-B is backordered and will ship as soon as it is back in stock.

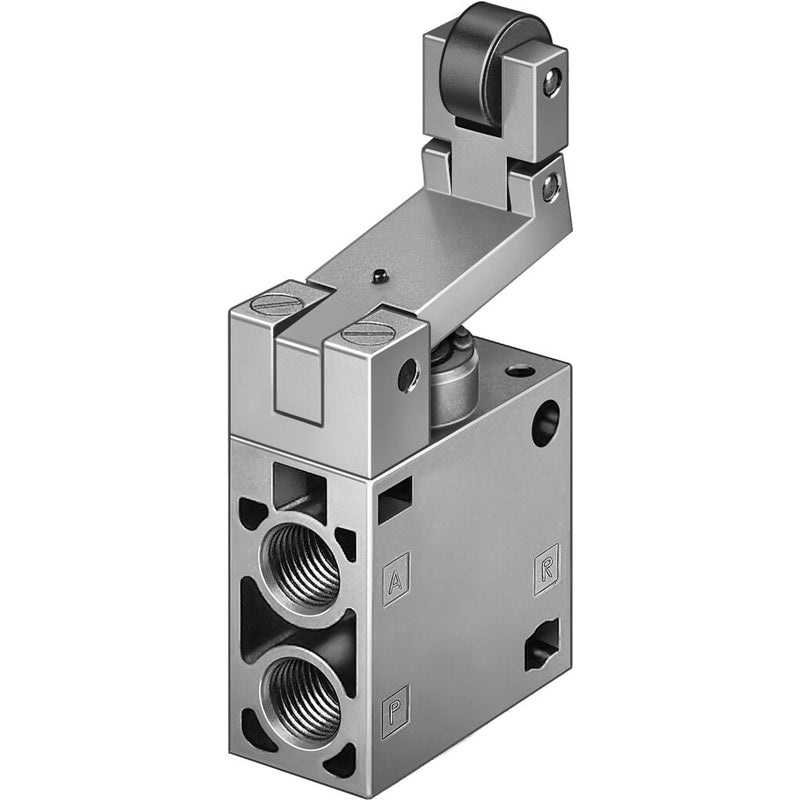

Roller lever valve L-3-1/4-B With idle return. Function unactuated, no through flow. Valve function=3/2 closed, monostable, Type of actuation=mechanical, Standard nominal flow rate=600 l/min, Operating pressure=-0,95 - 10 bar, Design structure=Piston seat
| Valve function | 3/2 closed, monostable |
|---|---|
| Type of actuation | mechanical |
| Standard nominal flow rate | 600 l/min |
| Operating pressure | '-0.95 ... 10 bar |
| Design structure | Poppet seat |
| Nominal size | 7 mm |
| Type of piloting | direct |
| Ambient temperature | '-10 ... 60 °C |
| Actuating force | 24.5 N |
| Product weight | 250 g |
| Mounting type | with through hole |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | G1/4 |
