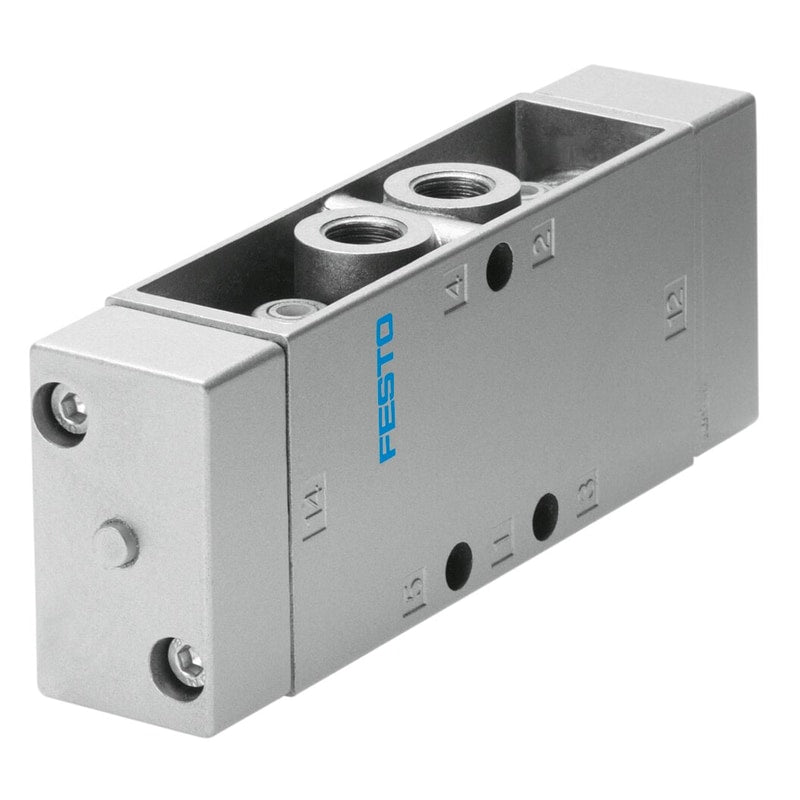

Pneumatic valve
JDH-5-1/8
8824
GTIN 4052568111281
Vendor Festo
Regular price
$214.87
Unit price
JDH-5-1/8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
JDH-5-1/8
Regular price
$214.87
Unit price
JDH-5-1/8 is backordered and will ship as soon as it is back in stock.

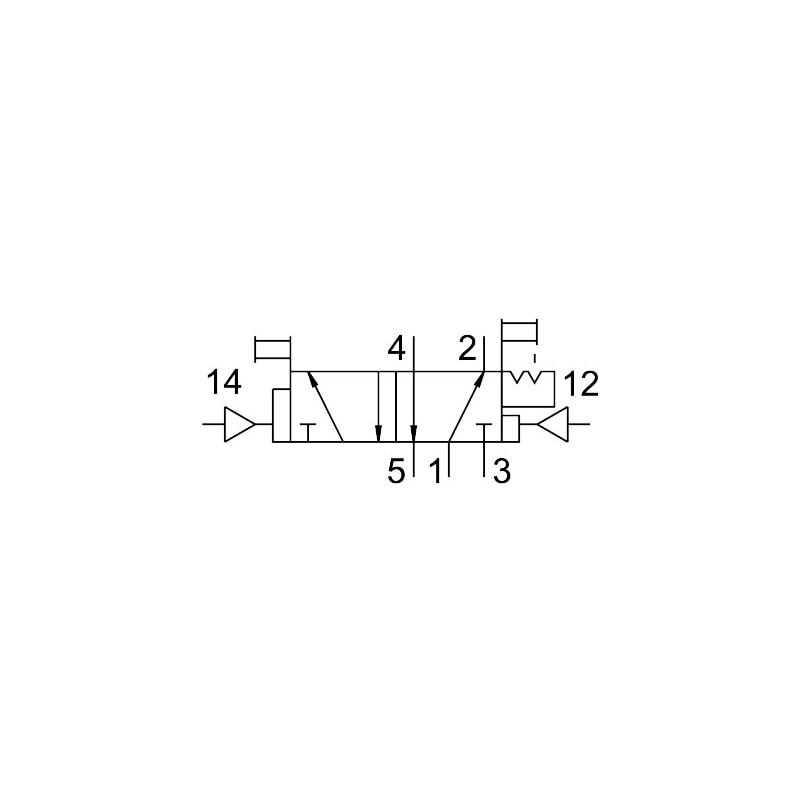

pneumatic valve JDH-5-1/8 Valve function=5/2 bistable-dominant, Type of actuation=pneumatic, Width=26 mm, Standard nominal flow rate=600 l/min, Operating pressure=0 - 10 bar
| Valve function | 5/2 bistable-dominant |
|---|---|
| Type of actuation | pneumatic |
| Width | 26 mm |
| Standard nominal flow rate | 600 l/min |
| Operating pressure | 0 ... 10 bar |
| Design structure | Poppet seat |
| Protection class | IP65 |
| Nominal size | 5 mm |
| Grid dimension | 27 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
| Type of piloting | direct |
