JMFH-5-1/8
Regular price
$341.06
Unit price
JMFH-5-1/8 is backordered and will ship as soon as it is back in stock.

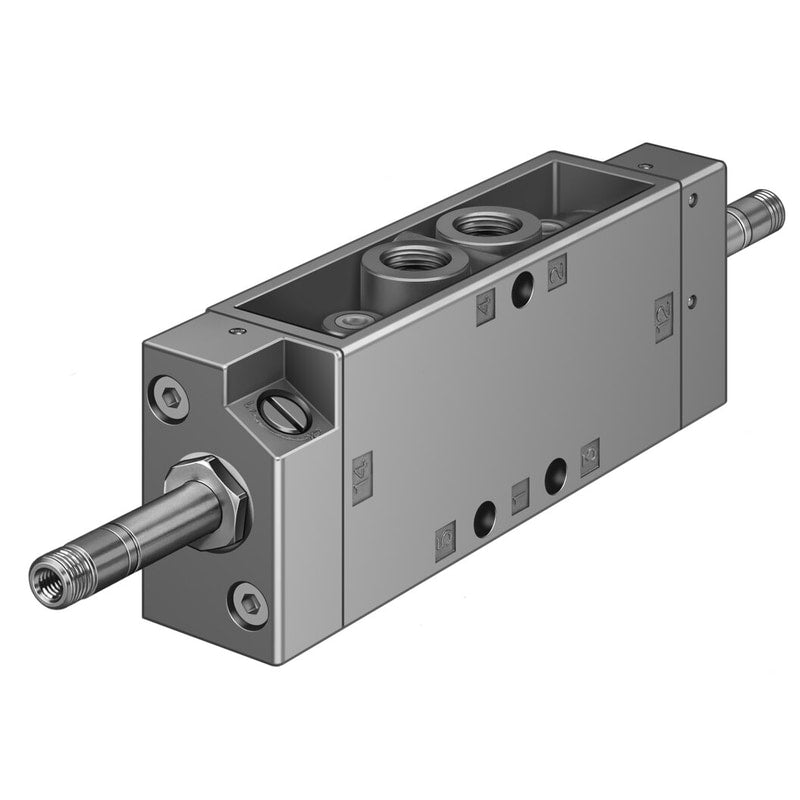

solenoid valve JMFH-5-1/8 With manual overrides, without solenoid coils or sockets. Solenoid coils and sockets should be ordered separately. Valve function=5/2 bistable, Type of actuation=electrical, Width=26 mm, Standard nominal flow rate=600 l/min, Operating pressure=1,5 - 8 bar
| Valve function | 5/2 bistable |
|---|---|
| Type of actuation | electrical |
| Width | 26 mm |
| Standard nominal flow rate | 600 l/min |
| Operating pressure | 1.5 ... 8 bar |
| Design structure | Poppet seat |
| Protection class | IP65 |
| Authorisation | c UL us - Recognized (OL) |
| Nominal size | 5 mm |
| Grid dimension | 27 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Assembly position | Any |
