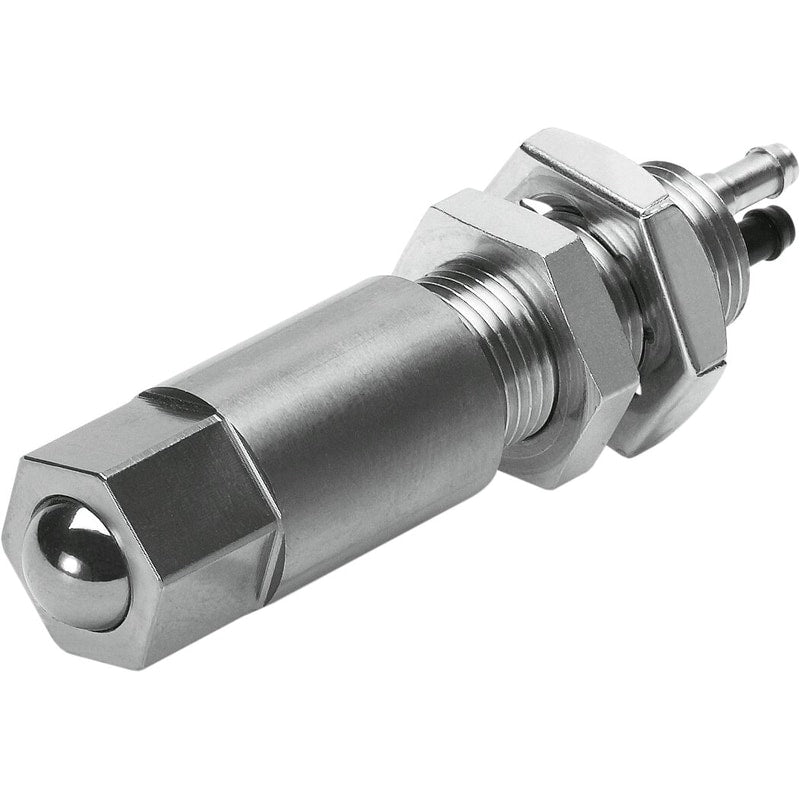

End stop limit switch
SDK-3-PK-3
8714
GTIN 4052568111236
Vendor Festo
- Valve function
- 3/2, closed, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 16 l/min
- Nominal width
- 0.6 mm
- Pneumatic working port
- PK-3
- Operating pressure
- 0 bar - 8 bar
Regular price
$198.07
Unit price
SDK-3-PK-3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SDK-3-PK-3
Regular price
$198.07
Unit price
SDK-3-PK-3 is backordered and will ship as soon as it is back in stock.
limit switch SDK-3-PK-3 With ball actuator Valve function=3/2 closed, monostable, Type of actuation=mechanical, Standard nominal flow rate=16 l/min, Operating pressure=0 - 8 bar, Design structure=Spherical seat
| Valve function | 3/2 closed, monostable |
|---|---|
| Type of actuation | mechanical |
| Standard nominal flow rate | 16 l/min |
| Operating pressure | 0 ... 8 bar |
| Design structure | Spherical seat |
| Type of reset | mechanical spring |
| Nominal size | 0.6 mm |
| Exhaust-air function | throttleable |
| Sealing principle | soft |
| Type of piloting | direct |
| Flow direction | non reversible |
| Operating medium | Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (subsequently required for further operation) |
