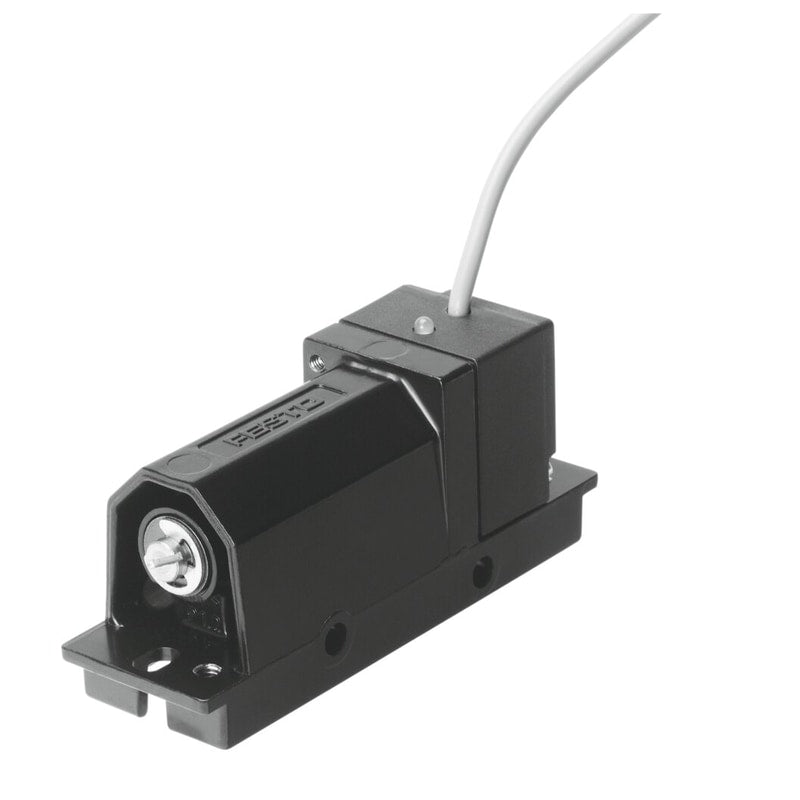

PE converter
PEN-M5
8625
GTIN 4052568008819
Vendor Festo
- DC operating voltage range
- 12 V - 30 V
- Operating pressure
- -1 bar - 8 bar
- Switching element function
- N/O contact
- Pneumatic connection
- M5
- Electrical connection
- Cable - Open end
Regular price
$407.20
Unit price
PEN-M5 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
PEN-M5
Regular price
$407.20
Unit price
PEN-M5 is backordered and will ship as soon as it is back in stock.
| Type code | PEN |
|---|---|
| Symbol | 991891 |
| Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| Note on materials | RoHS-compliantFree of copper and PTFE |
| Measured variable | Relative pressureDifferential pressure |
| Method of measurement | Pneumatic/electric differential pressure switch |
| Operating pressure | -1 bar ... 8 bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Temperature of medium | -20 °C ... 60 °C |
| Ambient temperature | -20 °C ... 60 °C |
| Switching output | PNP |
| Switching element function | N/O contact |
| Max. switching frequency | 70 Hz |
| Max. output current | 350 mA |
| Short-circuit protection | yes |
| DC operating voltage range | 12 V ... 30 V |
| Electrical connection | 3-wireCableOpen end |
| Cable length | 2.5 m |
| Type of mounting | Optionally:With through-holeOn 2n mounting frame |
| Mounting position | Any |
| Pneumatic connection | M5 |
| Housing material | Die-cast zinc |
| Switching status indication | LED yellow |
| Threshold value setting range | -0.8 bar ... 8 bar |
| Degree of protection | IP67 |
