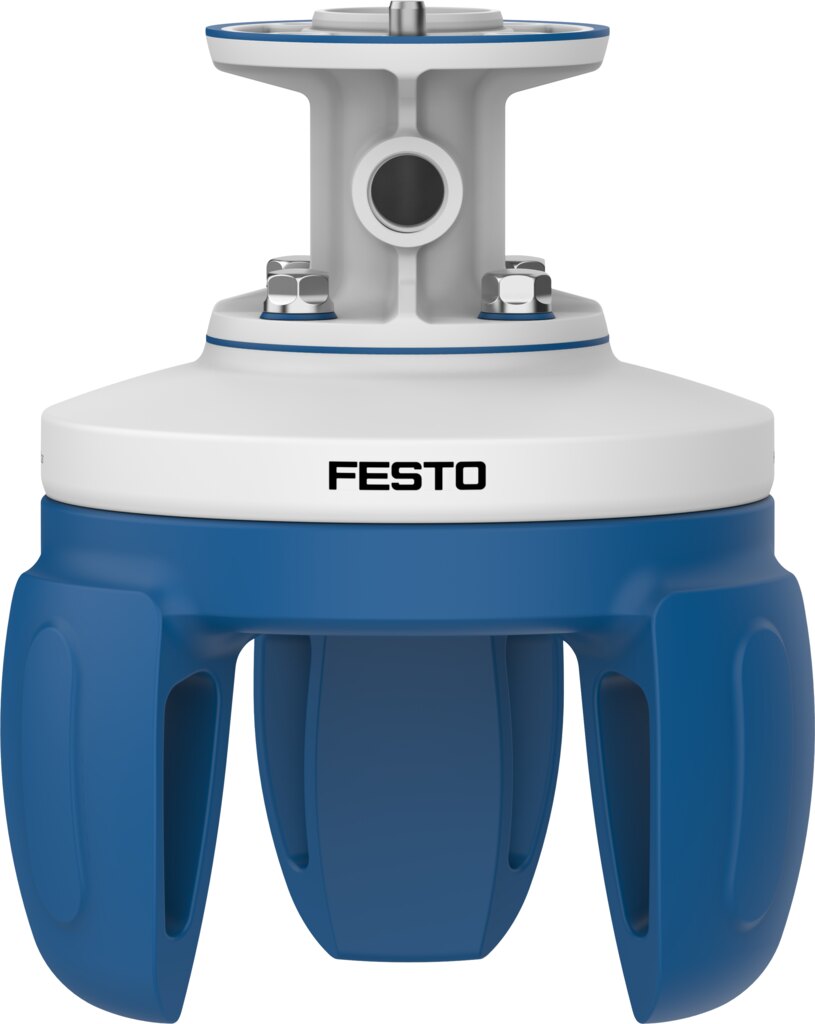

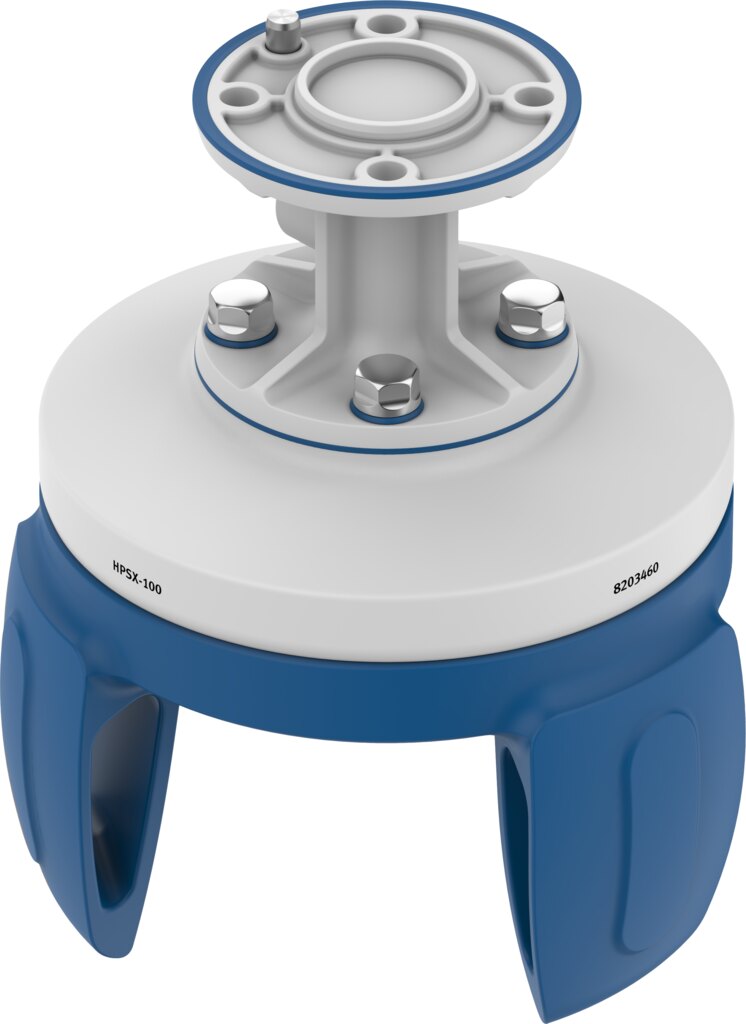

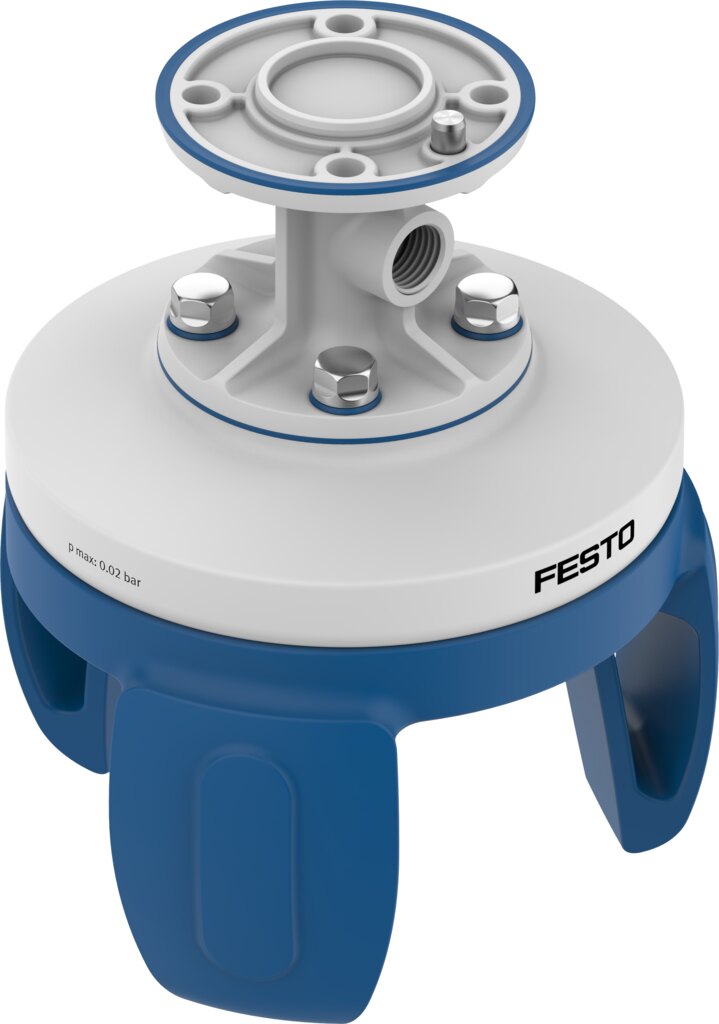

Soft gripper
HPSX-100-3-S-40-BU-RA50
8207892
GTIN 4052568799601
Vendor Festo
- Size
- 100
- Working stroke
- 30 mm - 125 mm
- Min. diameter to be gripped
- 80 mm
- Max. diameter to be gripped
- 110 mm
- Total gripping force
- 22 N
Regular price
$992.76
Unit price
Soft gripper HPSX-100-3-S-40-BU-RA50 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
HPSX-100-3-S-40-BU-RA50
Regular price
$992.76
Unit price
Soft gripper HPSX-100-3-S-40-BU-RA50 is backordered and will ship as soon as it is back in stock.
Soft gripper HPSX-100-3-S-40-BU-RA50 Size=100, Working stroke=30 mm ... 125 mm, Min. diameter to be gripped=80 mm, Max. diameter to be gripped=110 mm, Actuator system=Pneumatic, Mounting position=Any, Mode of operation=Double-acting, Gripper function=Adaptive, Number of Gripper fingers=3, Structural design=form-fit ... frictionally engaged, Symbol=00997558, Operating pressure=-0.085 MPa ... 0.02 MPa, Operating pressure=-0.85 bar ... 0.2 bar, Operating pressure=-12.325 psi ... 2.9 psi, Burst pressure of cap=0.06 MPa, Burst pressure of cap=0.6 bar, Burst pressure of cap=8.7 psi, Max. operating frequency of pneumatic gripper=5 Hz, Operating medium=Compressed air as per ISO 8573-1:2010 [7:4:4], Corrosion resistance class (CRC)=4 - Particularly high corrosion stress, LABS (PWIS) conformity=VDMA24364 Zone III, For use in the food industry=See supplementary material information, Ambient temperature=0 °C ... 60 °C, Vibration resistance=Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6, Degree of protection=IP69K, Total gripping force=22 N, Product weight=582 g, Type of mounting=after ISO 9409-1-50-4-M6, Pneumatic connection=G1/4, Note on materials=RoHS compliant, Adapter material=PA-reinforced, Material of screws=High-grade steel, Gripper finger material=VMQ (silicone), metal detectable, Cap material=PA-reinforced, Color=Blue, Shore hardness=A 40 +5
| Size | 100 |
|---|---|
| Working stroke | 30 mm ... 125 mm |
| Min. diameter to be gripped | 80 mm |
| Max. diameter to be gripped | 110 mm |
| Actuator system | Pneumatic |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Gripper function | Adaptive |
| Number of Gripper fingers | 3 |
| Structural design | form-fit ... frictionally engaged |
| Symbol | 00997558 |
| Operating pressure | -0.085 MPa ... 0.02 MPa |
| Operating pressure | -0.85 bar ... 0.2 bar |
| Operating pressure | -12.325 psi ... 2.9 psi |
| Burst pressure of cap | 0.06 MPa |
| Burst pressure of cap | 0.6 bar |
| Burst pressure of cap | 8.7 psi |
| Max. operating frequency of pneumatic gripper | 5 Hz |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
| LABS (PWIS) conformity | VDMA24364 Zone III |
| For use in the food industry | See supplementary material information |
| Ambient temperature | 0 °C ... 60 °C |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Degree of protection | IP69K |
| Total gripping force | 22 N |
| Product weight | 582 g |
| Type of mounting | after ISO 9409-1-50-4-M6 |
| Pneumatic connection | G1/4 |
| Note on materials | RoHS compliant |
| Adapter material | PA-reinforced |
| Material of screws | High-grade steel |
| Gripper finger material | VMQ (silicone), metal detectable |
| Cap material | PA-reinforced |
| Color | Blue |
| Shore hardness | A 40 +5 |
