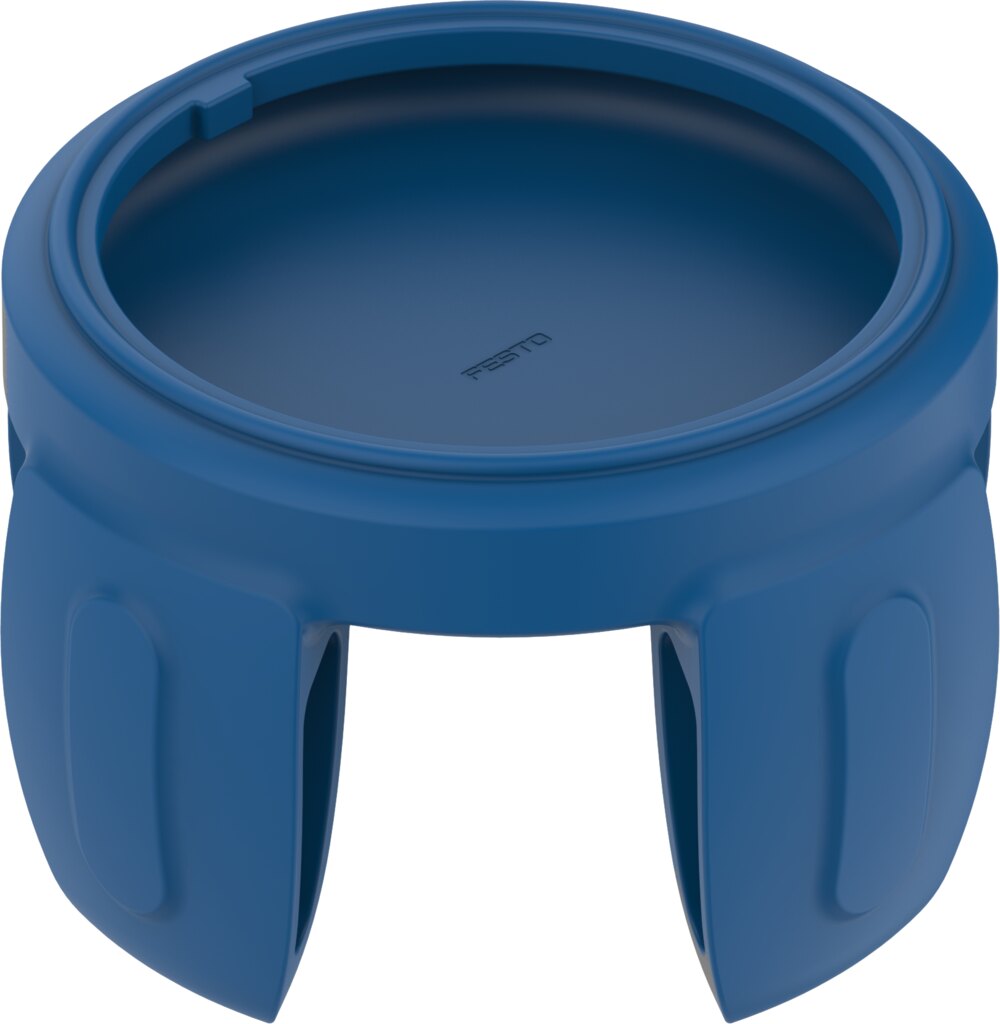

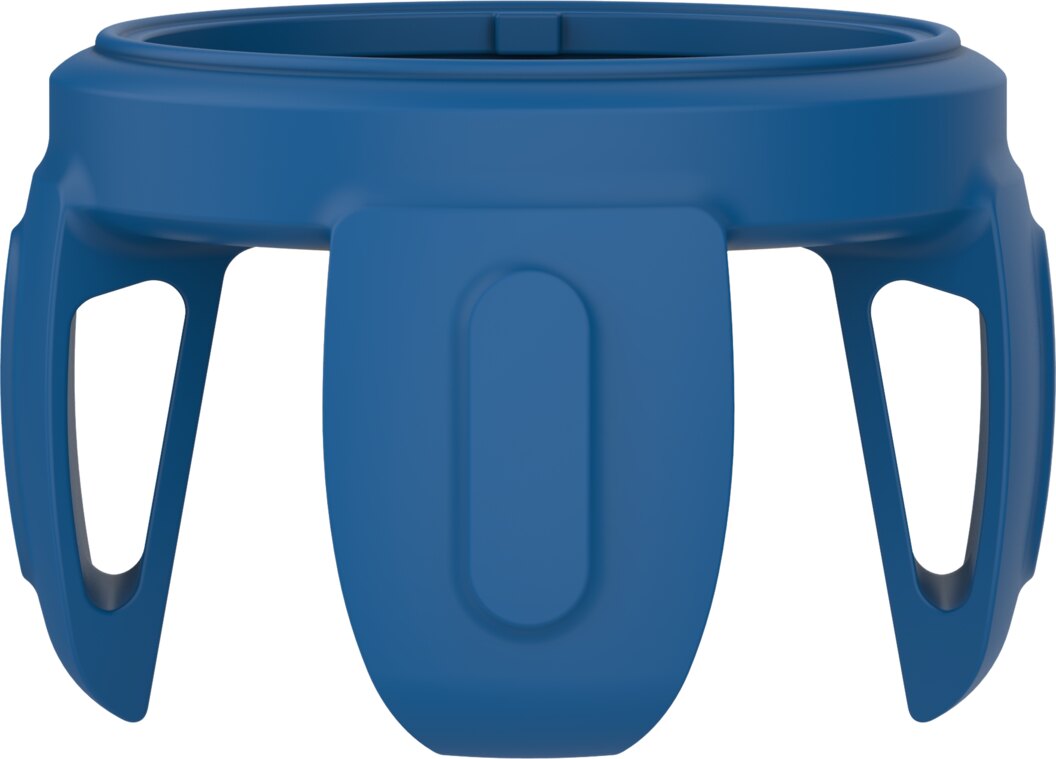

Gripper finger cap
HAMA-GA-B33-70-4-S-40-BU
8203486
GTIN 4052568799526
Vendor Festo
Regular price
$496.38
Unit price
Gripper finger cap HAMA-GA-B33-70-4-S-40-BU is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
HAMA-GA-B33-70-4-S-40-BU
Regular price
$496.38
Unit price
Gripper finger cap HAMA-GA-B33-70-4-S-40-BU is backordered and will ship as soon as it is back in stock.
Gripper finger cap HAMA-GA-B33-70-4-S-40-BU Size=70, Min. diameter to be gripped=55 mm, Max. diameter to be gripped=80 mm, Working stroke=20 mm ... 90 mm, Number of Gripper fingers=4, Design=For gripper, Structural design=form-fit ... frictionally engaged, Operating medium=Compressed air as per ISO 8573-1:2010 [7:4:4], LABS (PWIS) conformity=VDMA24364 Zone III, For use in the food industry=See supplementary material information, Ambient temperature=0 °C ... 60 °C, Product weight=125 g, Color=Blue, Shore hardness=A 40 +5, Note on materials=RoHS compliant, Gripper finger material=VMQ (silicone), metal detectable
| Size | 70 |
|---|---|
| Min. diameter to be gripped | 55 mm |
| Max. diameter to be gripped | 80 mm |
| Working stroke | 20 mm ... 90 mm |
| Number of Gripper fingers | 4 |
| Design | For gripper |
| Structural design | form-fit ... frictionally engaged |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| LABS (PWIS) conformity | VDMA24364 Zone III |
| For use in the food industry | See supplementary material information |
| Ambient temperature | 0 °C ... 60 °C |
| Product weight | 125 g |
| Color | Blue |
| Shore hardness | A 40 +5 |
| Note on materials | RoHS compliant |
| Gripper finger material | VMQ (silicone), metal detectable |
