Filter

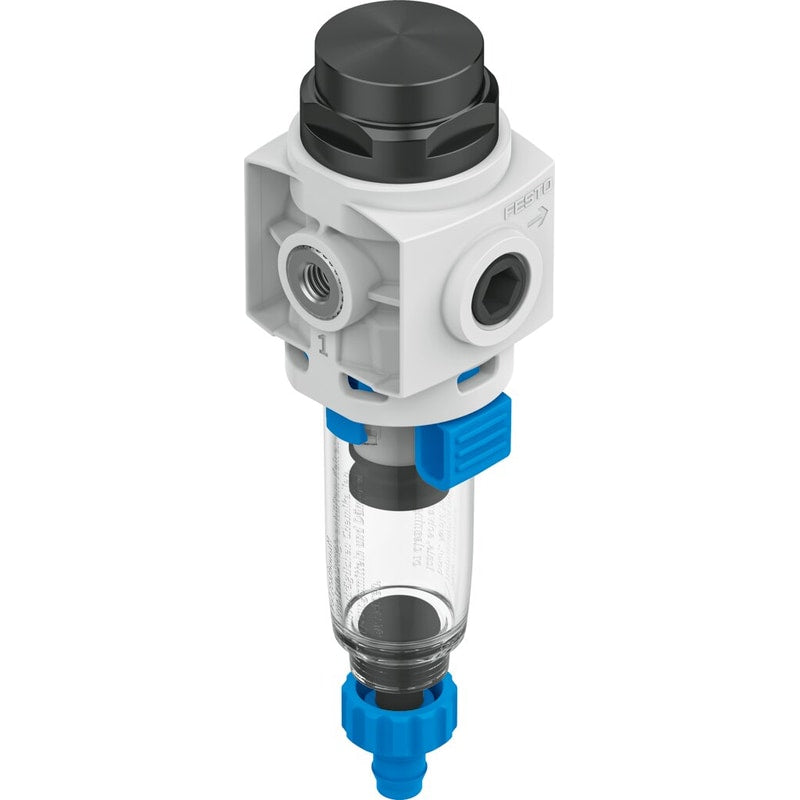

MS2-LF-M5-C-M-B
8183325
GTIN 4052568626945
Vendor Festo
- Pneumatic connection 1
- M5
- Normal nominal flow rate (normalized to DIN 1343)
- 225 l/min
Regular price
$31.72
Unit price
MS2-LF-M5-C-M-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS2-LF-M5-C-M-B
Regular price
$31.72
Unit price
MS2-LF-M5-C-M-B is backordered and will ship as soon as it is back in stock.
| Size | 2 |
|---|---|
| Series | MS |
| Mounting position | Vertical +/- 5° |
| Grade of filtration | 5µm |
| Condensate drain | Manually rotating |
| Structural design | Sinter filter with centrifugal separator |
| Max. condensate volume | 3ml |
| Symbol | 00991519 |
| Operating pressure | 0.1MPa |
| Operating pressure | 1bar |
| Operating pressure | 14.5psi |
| Standard nominal flow rate | 225l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils |
| Cleanroom class | Class 1 according to ISO 14644-1 |
| Storage temperature | -5°C |
| Air quality class at the output | Compressed air as per ISO 8573-1:2010 [6:4:4] |
| Temperature of medium | -5°C |
| Ambient temperature | -5°C |
| Product weight | 45.3g |
| Type of mounting | Optionally: |
| Pneumatic connection 1 | M5 |
| Pneumatic connection 2 | M5 |
| Note on materials | RoHS-compliant |
| Seals material | NBR |
| Material of spring | High-alloy steel |
| Compressed air filter material | PE |
| Housing material | PA-reinforced |
| Diaphragm material | NBR |
