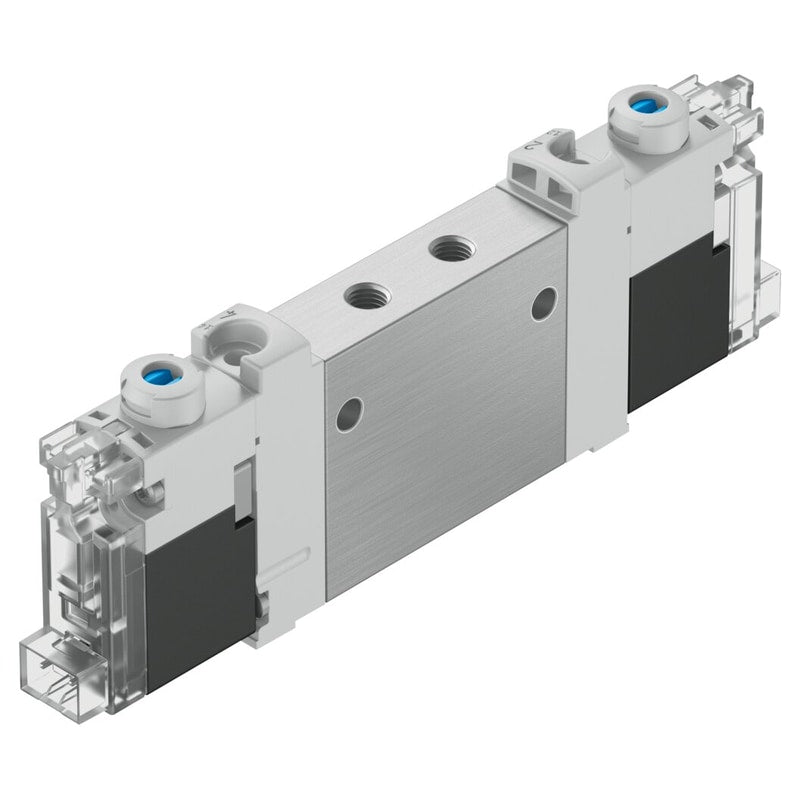

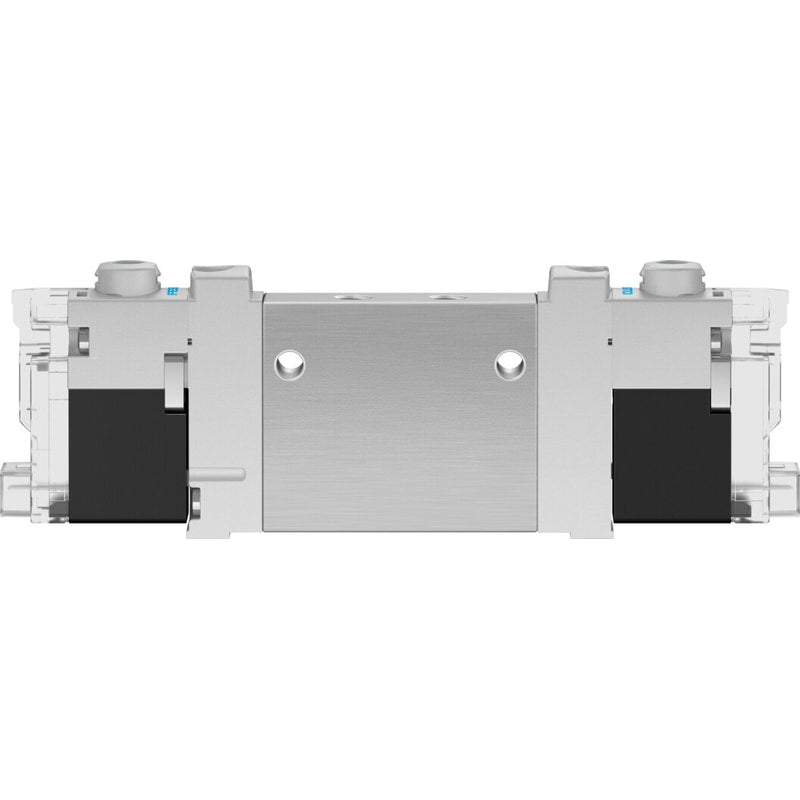

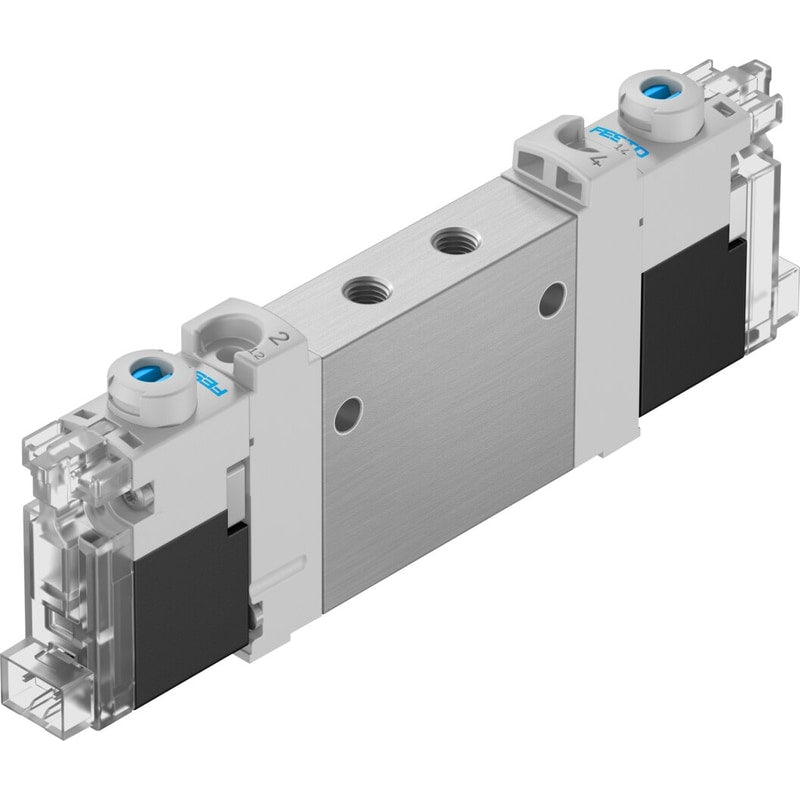

Solenoid valve
VUVG-LK10-T32C-AT-M5-1H2L-F1A
8173199
GTIN 4052568607074
Vendor Festo
- Valve function
- 2x3/2, closed, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 180 l/min
- Pneumatic working port
- M5
- Actuation type
- Electrical
Regular price
$81.33
Unit price
VUVG-LK10-T32C-AT-M5-1H2L-F1A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VUVG-LK10-T32C-AT-M5-1H2L-F1A
Regular price
$81.33
Unit price
VUVG-LK10-T32C-AT-M5-1H2L-F1A is backordered and will ship as soon as it is back in stock.
| Valve function | 2x3/2, closed, monostable |
|---|---|
| Actuation type | Electrical |
| Valve size | 10mm |
| Standard nominal flow rate | 180l/min |
| Pneumatic working port | M5 |
| Operating voltage | 24V DC |
| Operating pressure | 0.15MPa |
| Operating pressure | 1.5bar |
| Structural design | Piston slide with sealing ring |
| Reset method | Pneumatic spring |
| Certification | c UL us - Recognized (OL) |
| Certificate issuing authority | UL MH19482 |
| Degree of protection | IP40 |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Detenting |
| Type of control | Pilot-controlled |
| Pilot air supply port | Internal |
| Flow direction | Non-reversible |

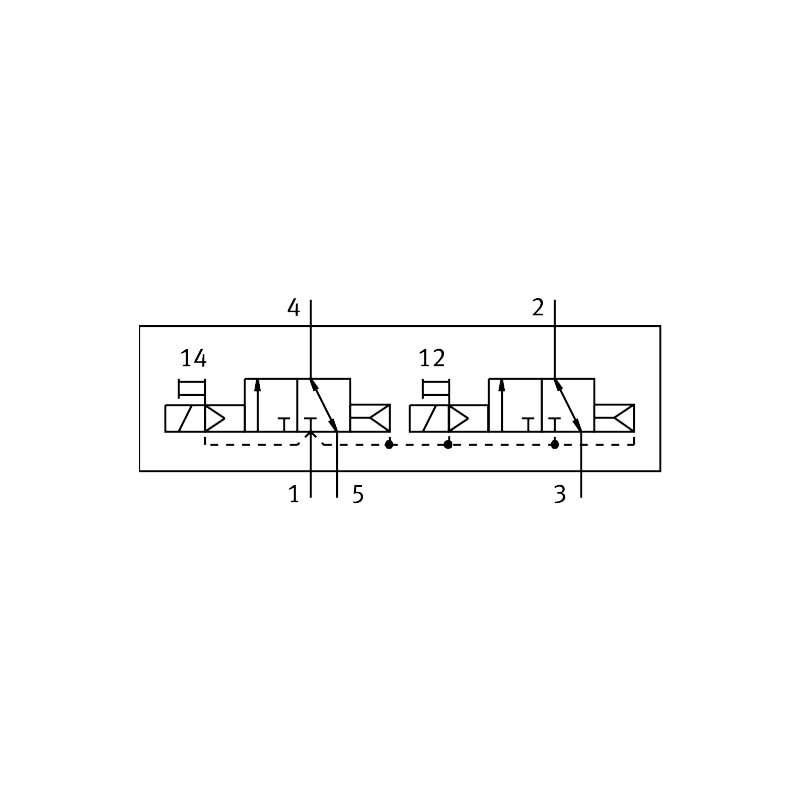

| Symbol | 00992904 |
| Lap | Overlap |
| Signal status display | LED |
| Max. switching frequency | 2Hz |
| Switching time off | 14ms |
| On switching time | 12ms |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 1600µs |
| Max. negative test pulse on 1 signal | 3000µs |
| Coil characteristics | 24 V DC: 0.8 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for the production of Li-ion batteries | Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils |
| Cleanroom class | Class 6 according to ISO 14644-1 |
| Temperature of medium | -5°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5°C |
| Product weight | 55g |
| Electrical connection | 2-pin |
| Type of mounting | Optionally: |
| Pneumatic connection 2 | M5 |
| Pneumatic connection 4 | M5 |
| Note on materials | RoHS-compliant |
| Seals material | HNBR |
| Housing material | Wrought aluminum alloy |
