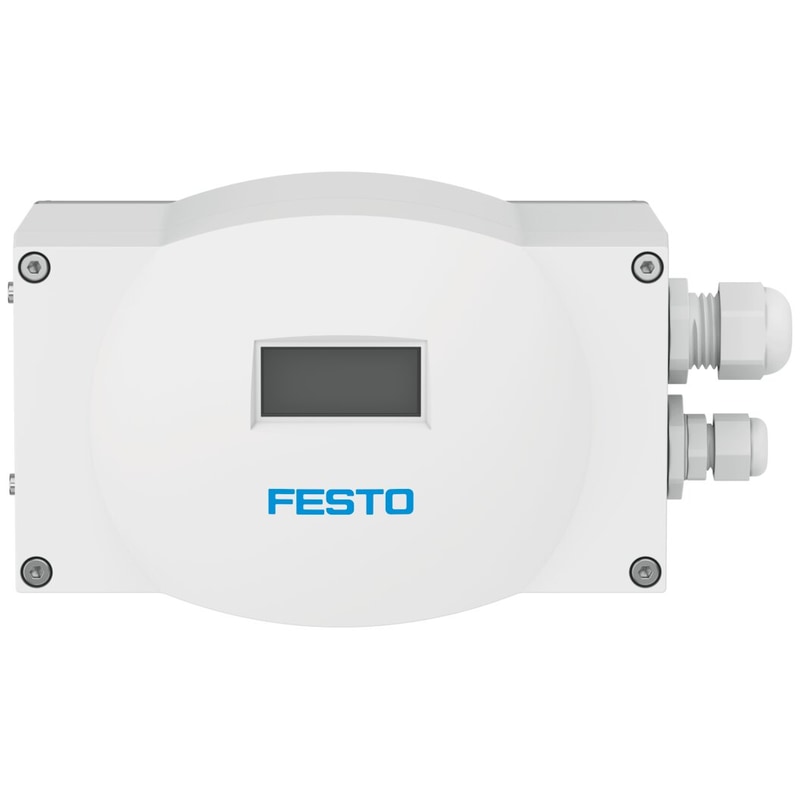

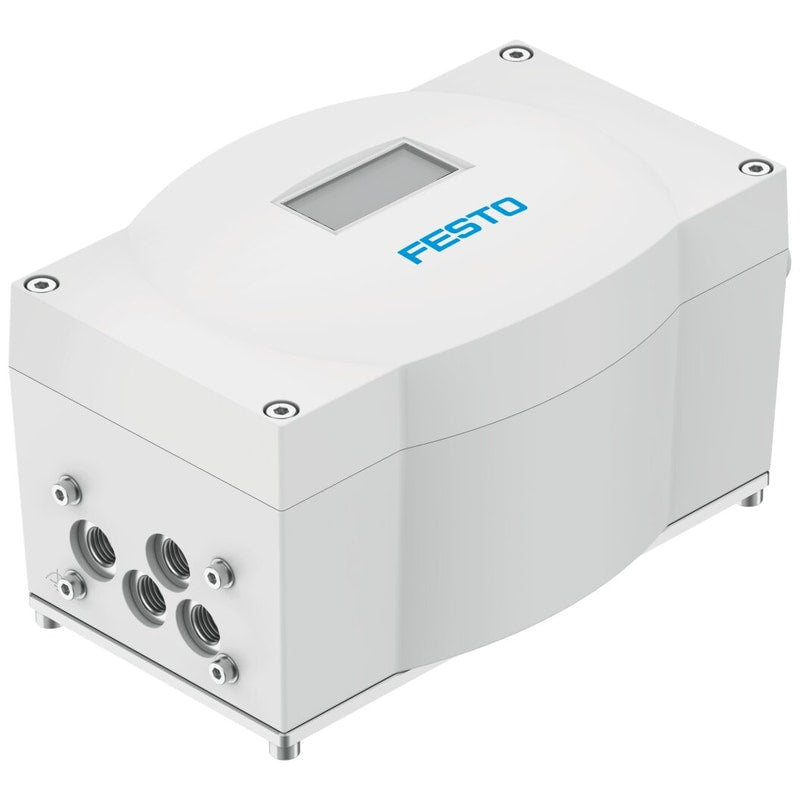

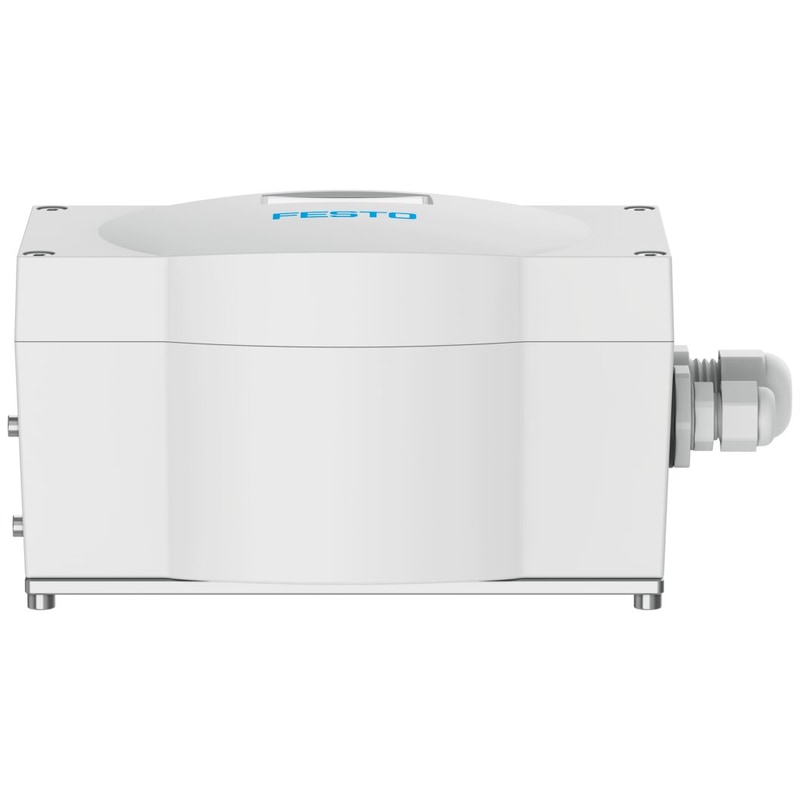

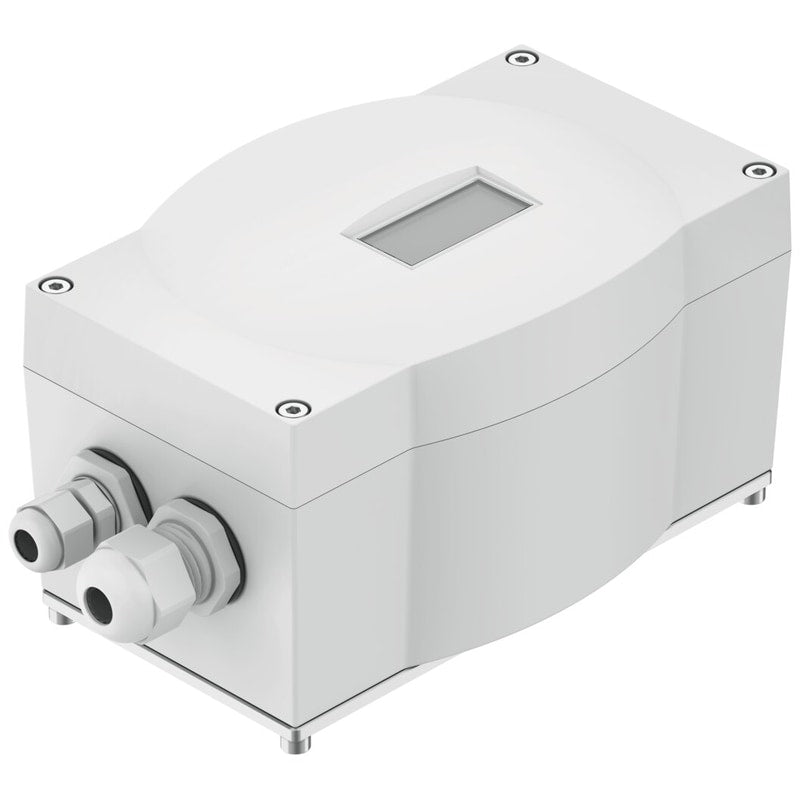

Positioner
CMSX-P-SE-C-U-F1-D-50-A
8171507
GTIN 4052568616229
Vendor Festo
Regular price
$1,134.04
Unit price
CMSX-P-SE-C-U-F1-D-50-A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CMSX-P-SE-C-U-F1-D-50-A
Regular price
$1,134.04
Unit price
CMSX-P-SE-C-U-F1-D-50-A is backordered and will ship as soon as it is back in stock.
| Structural design | digital, electropneumatic positioner |
|---|---|
| Mode of operation | Double-acting |
| Design features | Safety position – pneumatic outlet 4 exhausted |
| Mounting position | Any |
| Type of mounting | With accessories |
| Measuring principle of linear potentiometer | Potentiometer |
| Display | 7-segment |
| Setting options | Via display and pushbuttons |
| Size of dead space | 0.5% |
| Operating pressure | 0.3MPa |
| Operating pressure | 3bar |
| Operating pressure | 43.5psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| Standard nominal flow rate | 50l/min |
| Pneumatic connection | G1/8 |
| Nominal operating voltage DC | 24V |
| DC operating voltage range | 21.6V |
| Max. current consumption | 600mA |
| Reverse polarity protection | for operating voltage connections |
| Connection resistance | 80kOhm |
| Analog inputs, signal range | 0 - 10 V |
| Analog inputs, max. dynamic range | 0 - 24 mA |
| Analog inputs, linearity error at 25°C | 0.5 % |
| Analog inputs, temperature coefficient | 0.02%FS/K |
| Analog inputs, resolution | 16 bit |
| Analog inputs, overload protection | yes |
| Analog inputs, galvanic isolation | no |
| Analog outputs, signal range | 4 - 20 mA |
| Analog outputs, max. load resistance | 600Ohm |
| Analog outputs, linearity error at 25°C | 0.5% |
| Analog outputs, temperature coefficient | 0.02%FS/K |
| Analog outputs, resolution | 12 bit |
| Analog outputs, reverse polarity protection | yes |
| Analog outputs, short-circuit protection | yes |
| Analog outputs, overload protection | yes |
| Analog outputs, galvanic isolation | no |
| Input characteristics | As per IEC 61131-2, type 3 |
| Switching input | PNP |
| Digital inputs, reverse polarity protection | yes |
| Digital inputs, electrical isolation | Yes, optocoupler |
| Digital outputs, reverse polarity protection | yes |
| Switching output | 3 x PNP or 3 x NPN switchable |
| Digital outputs, output current | 100 mA |
| Digital outputs, short circuit current rating | yes |
| Digital outputs, overload protection | yes |
| Digital outputs, potential separation | Yes, optocoupler |
| Electrical connection 1, function | 3x digital output |
| Electrical connection 1, connection type | Terminal strip |
| Electrical connection 1, connection technology | Screw terminal |
| Electrical connection 1, number of pins/wires | 13 |
| Electrical connection 1, tightening torque | 0.6Nm |
| Electrical connection 1, conductor cross section | 1.5mm² |
| Electrical connection 2, function | External path/angle sensor |
| Electrical connection 2, connection type | Terminal strip |
| Electrical connection 2, connection technology | Screw terminal |
| Electrical connection 2, number of pins/wires | 3 |
| Electrical connection 2, tightening torque | 0.6Nm |
| Electrical connection 2, conductor cross section | 1.5mm² |
| Cable fitting | M12 x 1.5 for electrical connection 2 |
| Approved cable diameter | 3-6.5 mm for electrical connection 2 |
| Max. cable length | 3 m for electrical connection 2 |
| Ambient temperature | -5°C |
| Storage temperature | -20°C |
| Relative air humidity | 93 % |
| Degree of protection | IP65 |
| Shock resistance | Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27 |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Contamination level | 3 |
| Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| Housing material | PC-reinforced |
| Inspection window material | PC |
| Base plate material | Wrought aluminum alloy, anodized |
| Shaft material | High-alloy stainless steel |
| Quick-coupling material | High-alloy stainless steel |
| Material of screws | High-alloy stainless steel |
| Seals material | NBR |
| Material for cable connector | PA |
| Blanking plug material | PA |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant |
| Product weight | 970g |
| Dimensions W x L x H | 190 mm x 105 mm x 130 mm |
