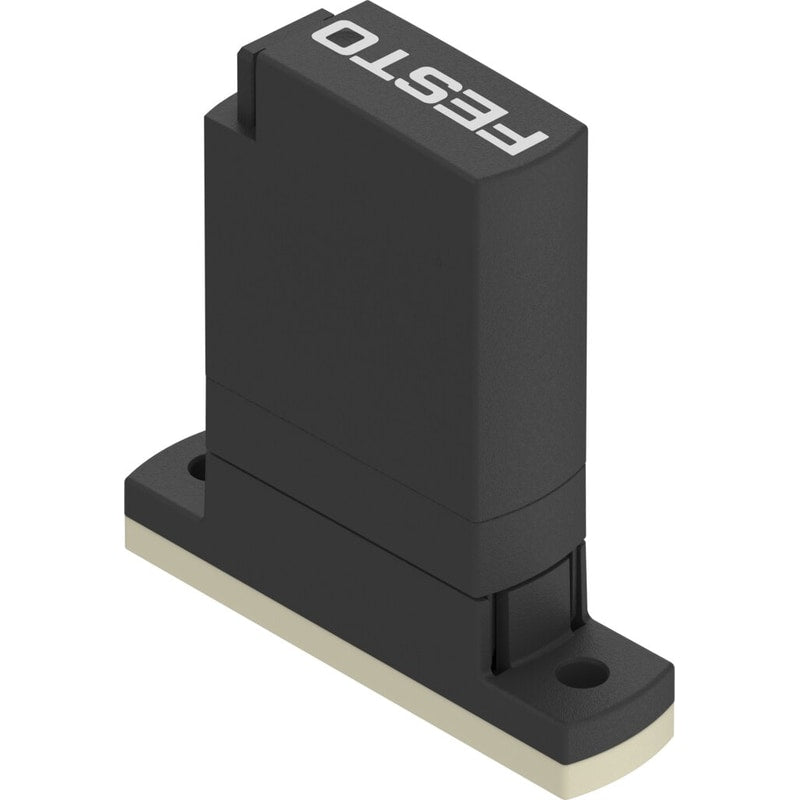

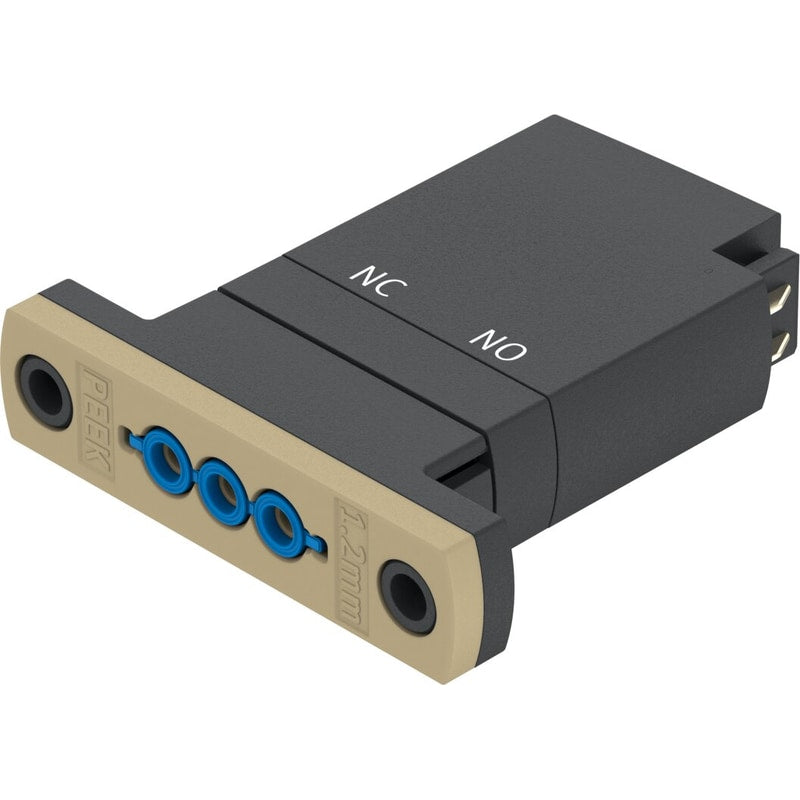

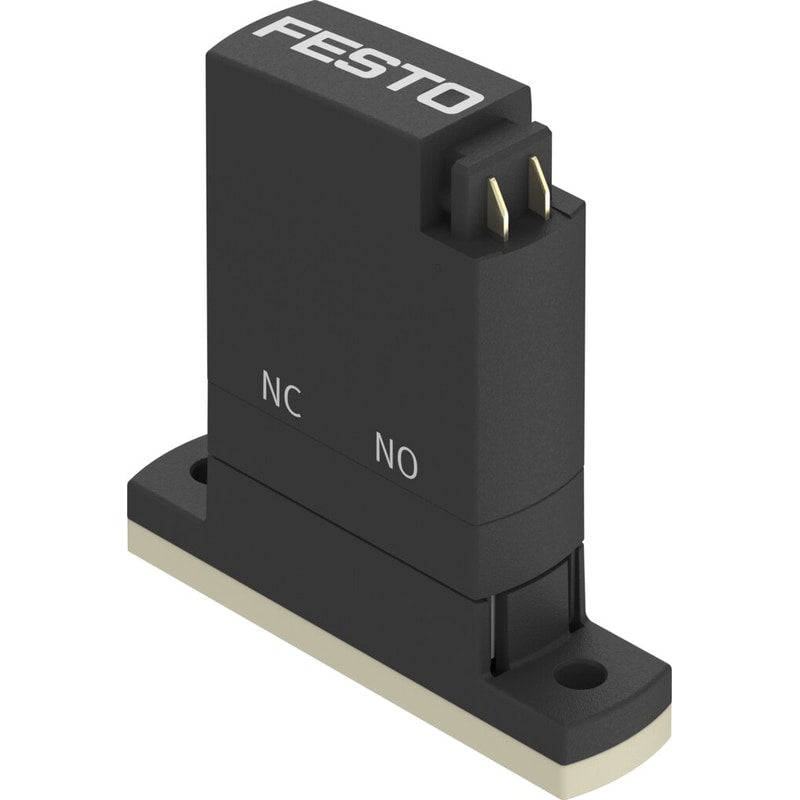

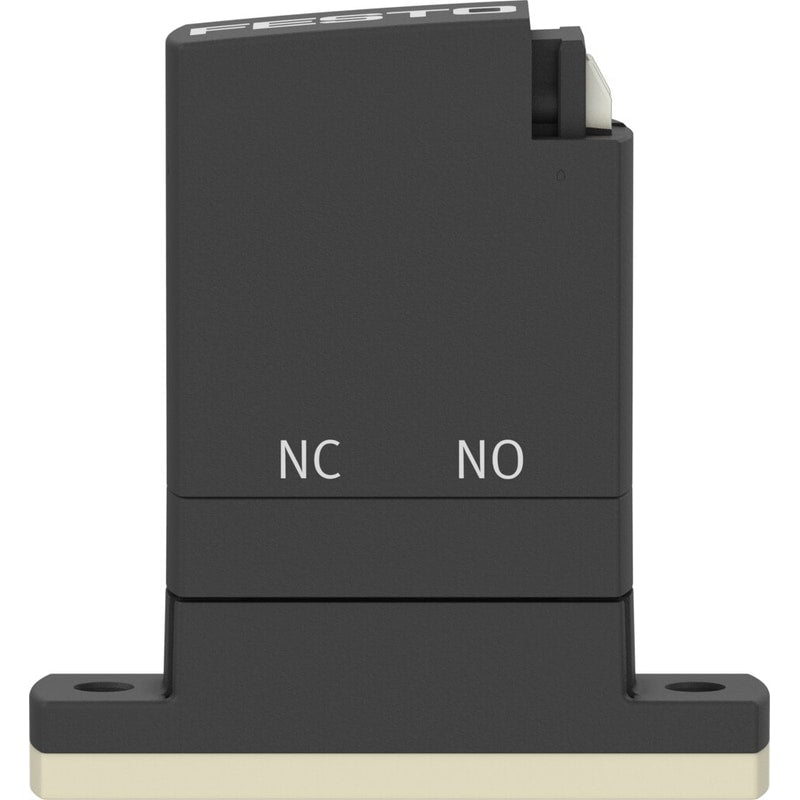

Media separated solenoid valve
VYKA-F7-M32-12-PE-5YQ7
8170085
GTIN 4052568614515
Vendor Festo
- Structural design
- Rocker valve with diaphragm seal
- Valve function
- 3/2, open/closed, monostable
- Water flow rate at max. operating pressure
- 0.03 m³/h - 0.5 l/min
- Flow rate Kv
- 0.021 m³/h
Regular price
$102.01
Unit price
VYKA-F7-M32-12-PE-5YQ7 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VYKA-F7-M32-12-PE-5YQ7
Regular price
$102.01
Unit price
VYKA-F7-M32-12-PE-5YQ7 is backordered and will ship as soon as it is back in stock.
| Structural design | Rocker valve with diaphragm seal |
|---|---|
| Sealing principle | Soft |
| Materials in contact with the media | EPDM |
| For use in the food industry | See supplementary material information |
| Valve function | 3/2, open/closed, monostable |
| Nominal width | 1.2mm |
| Flow direction | Reversible with restrictions |
| Actuation type | Electrical |
| Type of control | Direct |
| Reset method | Mechanical spring |
| Manual override | None |
| Mounting position | Any |
| Type of mounting | With through-hole for M2 screw |
| Electrical connection 1, connection type | Socket |
| Electrical connection 1, connection technology | Connection diagram Q7 |
| Electrical connection 1, number of pins/wires | 2 |
| Electrical connection for input 1, connection pattern | 00997312 |
| Size | 7 |
| Width dimension | 7.5mm |
| Fluid connector | Flange |
| Medium | Liquid media |
| Information on medium | Observe resistance of materials that come into contact with media |
| Internal volume | 16 µl fluid space valve |
| Temperature of liquid media | 0°C |
| Medium temperature gaseous media | 0°C |
| Ambient temperature | 0°C |
| Storage temperature | -20°C |
| Medium pressure | -0.05MPa |
| Medium pressure | -0.5bar |
| Medium pressure | -7.25psi |
| Note on the medium pressure | COM: -0.25 – 2 bar / -0.025 – 0.2 MPa / -3.625 – 29 psi |
| Pressure difference | 0.2MPa |
| Differential pressure | 2bar |
| Pressure difference | 29psi |
| Burst pressure | 2.3MPa |
| Burst pressure | 23bar |
| Burst pressure | 333.5psi |
| DC operating voltage range | 12V |
| Note on operating voltage range DC | With electrical sub-base VAVE-K1-… |
| Permissible voltage fluctuations | +/- 10 % |
| Electrical power consumption | 3.5W |
| Note on power consumption | Low-current phase 0.3 W, high-current phase 3.5 W for 60 ms, in combination with VAVE-K1-… |
| Coil characteristics | 12 - 26 V DC: low-current phase 0.06 W, high-current phase 2.2 W |
| Insulation class | B |
| Duty cycle | 100% in combination with holding current reduction |
| Max. switching frequency | 6Hz |
| Note on switching frequency | Dependent on the ambient temperature and installation state |
| Response time "on" for liquid media | 5ms |
| Switching time on gaseous media | 5ms |
| Response time "off" for liquid media | 5ms |
| Switching time off gaseous media | 5ms |
| Standard nominal flow rate | 11l/min |
| Note on standard nominal flow rate | At a pressure drop of 1 -> 0 bar (gaseous media) |
| Flow rate Kv | 0.021m³/h |
| Flow rate Kv | 0.35l/min |
| Note on flow rate Kv | For the medium water |
| Water flow rate at max. operating pressure | 0.5 l/min |
| Symbol | 00992967 |
| Housing material | PA-reinforced |
| Diaphragm material | EPDM |
| Seals material | EPDM |
| Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Product weight | 10.9g |
| Degree of protection | IP40 |
| Note on degree of protection | In mounted state |
| Application note | For indoor use only |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
