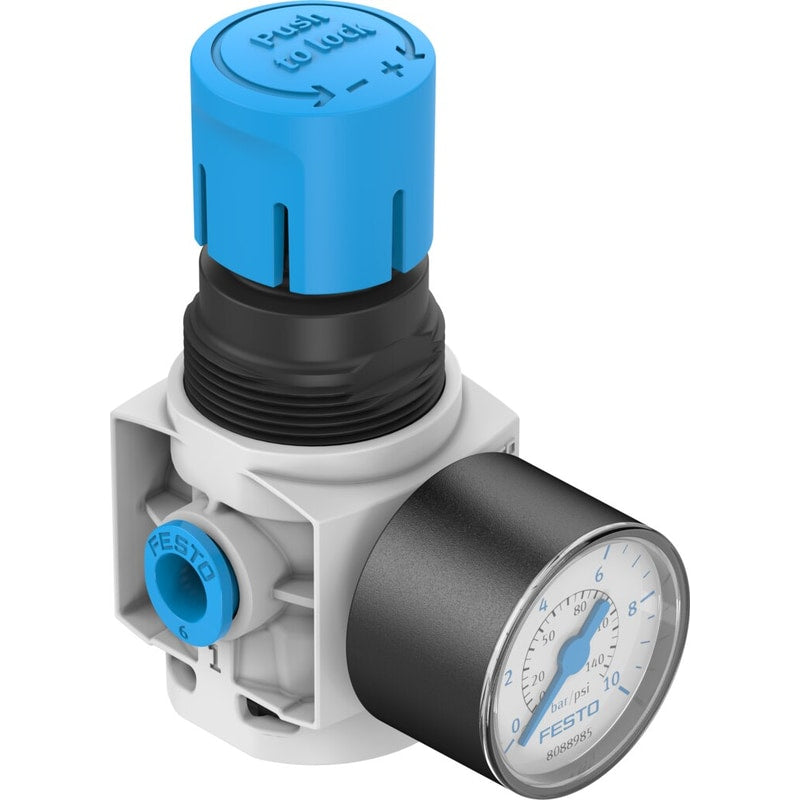

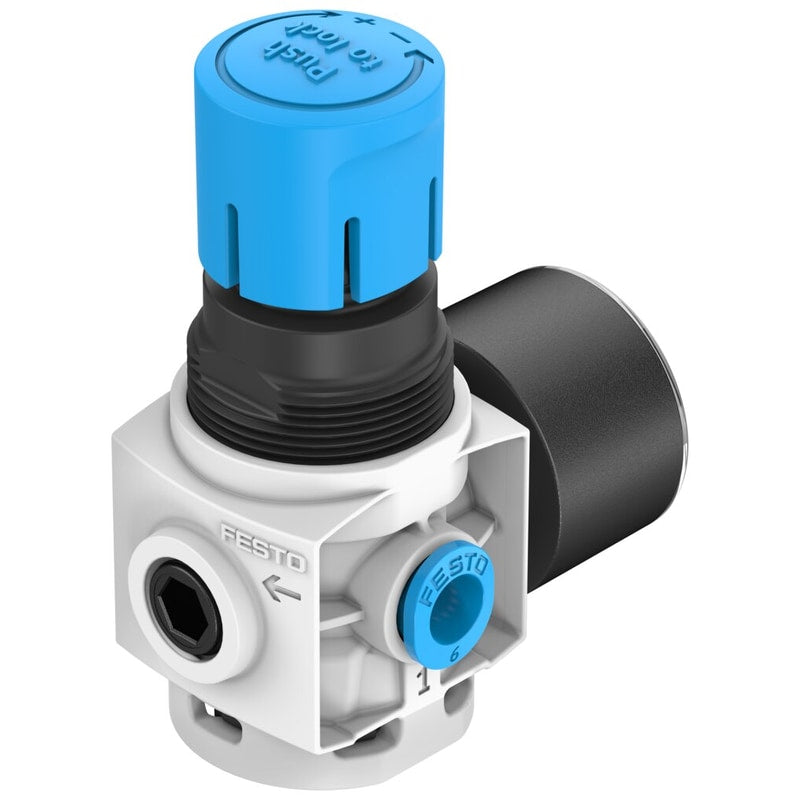

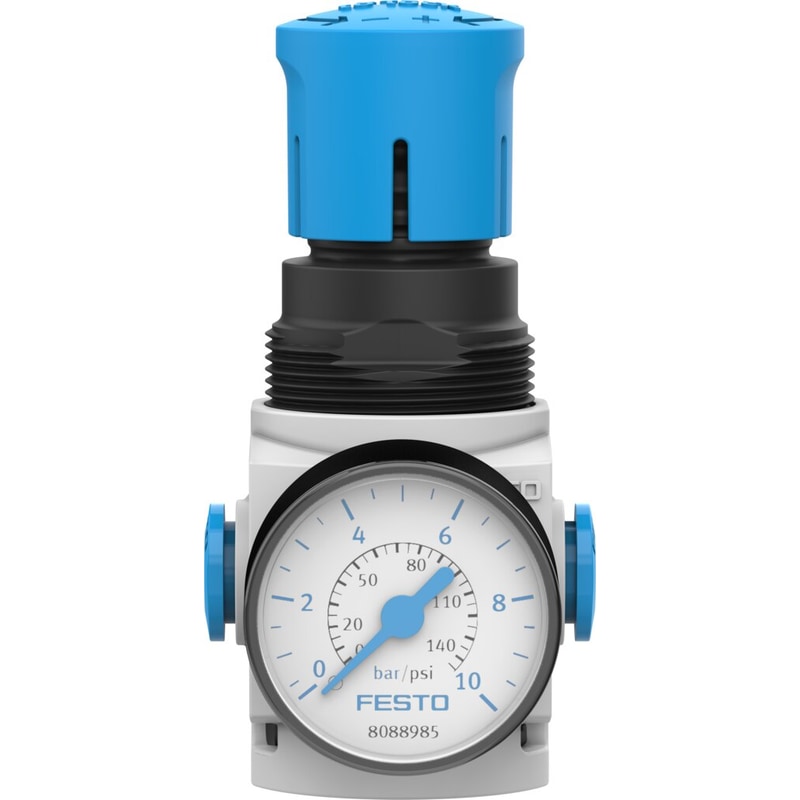

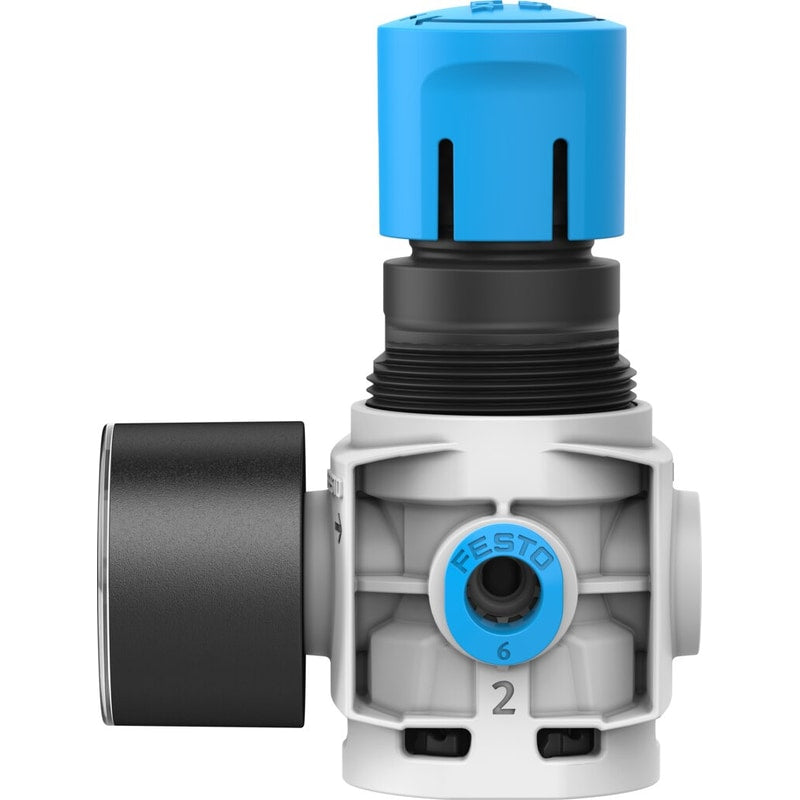

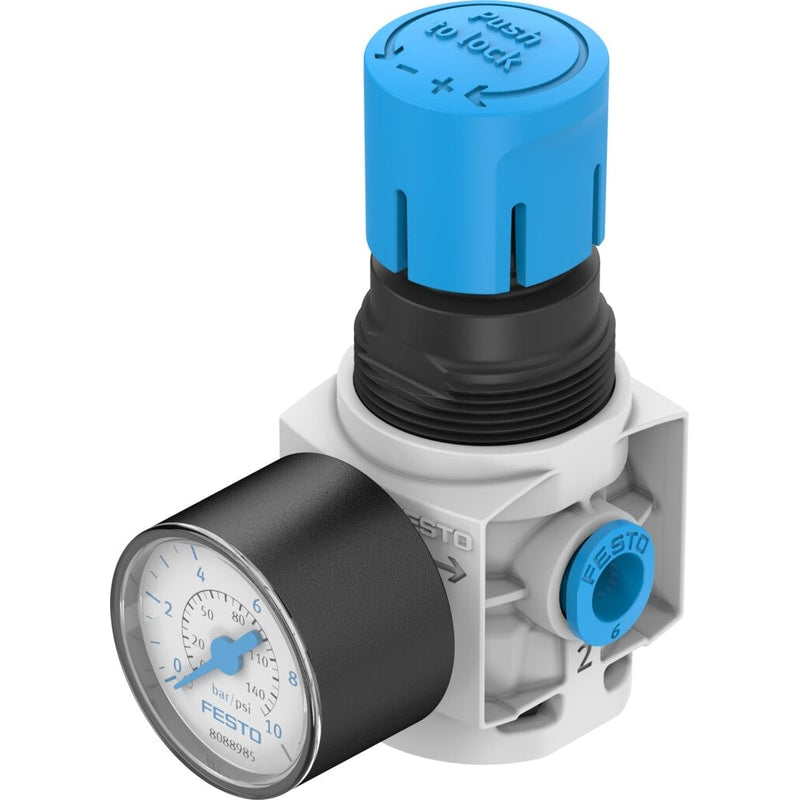

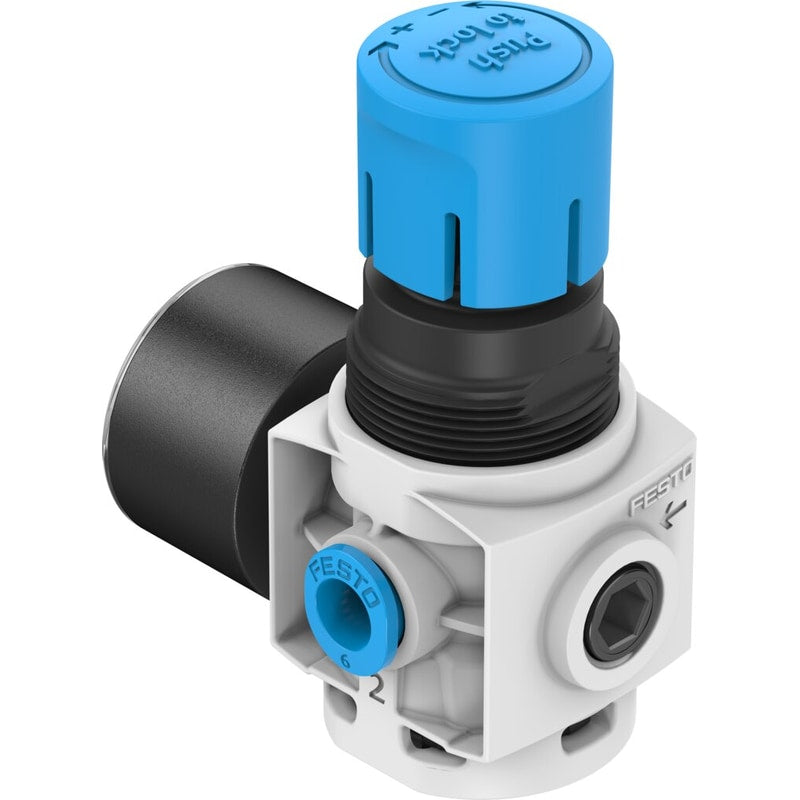

Pressure regulator
MS2-LR-QS6-D6-AR-BAR-F1A-B
8167261
GTIN 4052568606107
Vendor Festo
- Pneumatic connection 1
- QS-6
- Normal nominal flow rate (normalized to DIN 1343)
- 350 l/min
- Pressure regulation range
- 0.5 bar - 7 bar
- Max. pressure hysteresis
- 0.25 bar
Regular price
$51.25
Unit price
Pressure regulator MS2-LR-QS6-D6-AR-BAR-F1A-B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MS2-LR-QS6-D6-AR-BAR-F1A-B
Regular price
$51.25
Unit price
Pressure regulator MS2-LR-QS6-D6-AR-BAR-F1A-B is backordered and will ship as soon as it is back in stock.
| Size | 2 |
|---|---|
| Series | MS |
| Actuator lock | Rotary knob with detent |
| Mounting position | Any |
| Structural design | Directly controlled diaphragm regulator |
| Controller function | Outlet pressure constant |

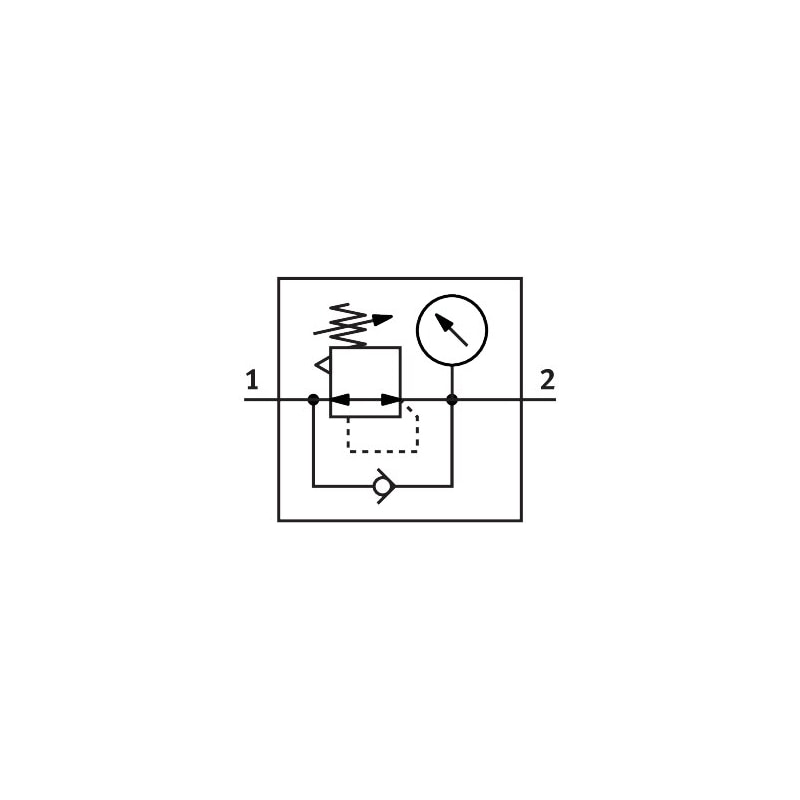

| Symbol | 00991558 |
| Displayable unit(s) | bar |
| Pressure gauge | with pressure gauge |
| Operating pressure | 0.1MPa |
| Operating pressure | 1bar |
| Pressure regulation range | 0.5bar |
| Max. pressure hysteresis | 0.025MPa |
| Max. pressure hysteresis | 0.25bar |
| Max. pressure hysteresis | 3.625psi |
| Standard nominal flow rate | 350l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils |
| Cleanroom class | Class 1 according to ISO 14644-1 |
| Storage temperature | -5°C |
| Temperature of medium | -5°C |
| Ambient temperature | -5°C |
| Product weight | 36.1g |
| Type of mounting | Optionally: |
| Pneumatic connection 1 | QS-6 |
| Pneumatic connection 2 | QS-6 |
| Note on materials | RoHS-compliant |
| Lower cover material | PA |
| Seals material | NBR |
| Rotary knob material | POM |
| Material of spring | High-alloy steel |
| Housing material | PA-reinforced |
| Diaphragm material | NBR |
| Valve tappet material | Wrought aluminum alloy |
