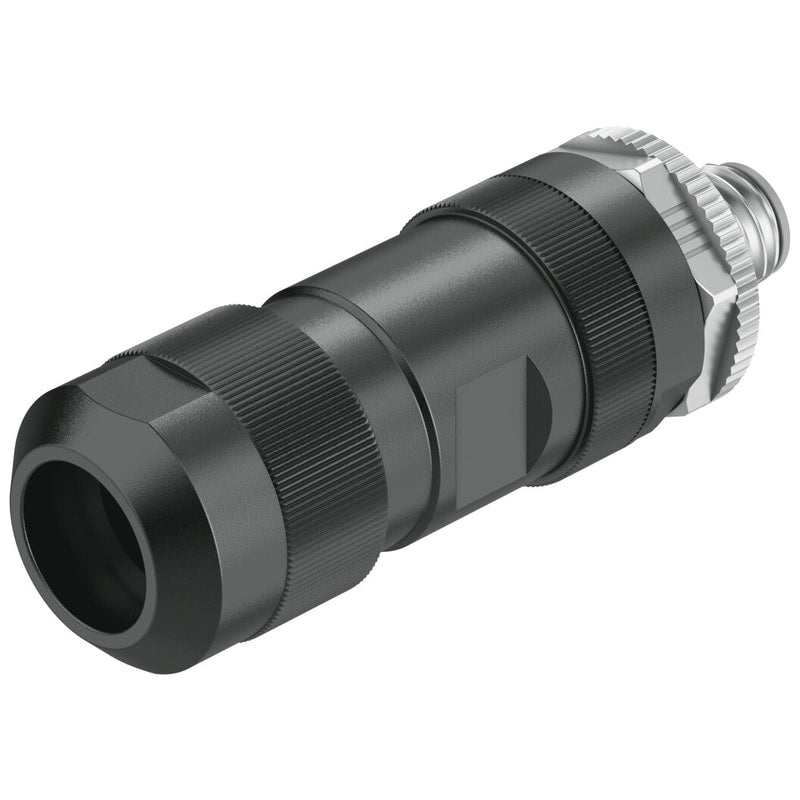

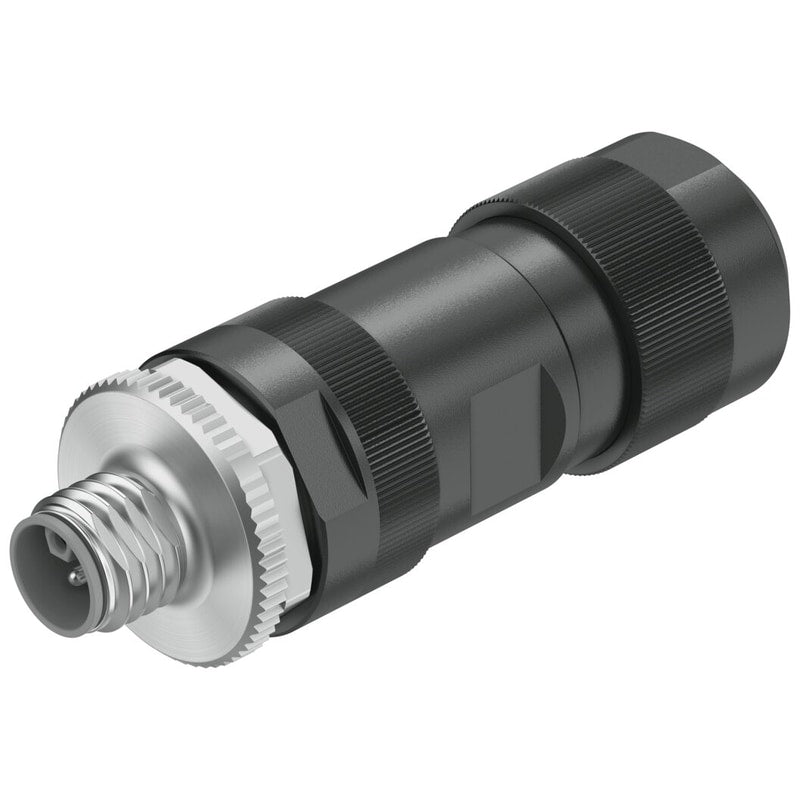

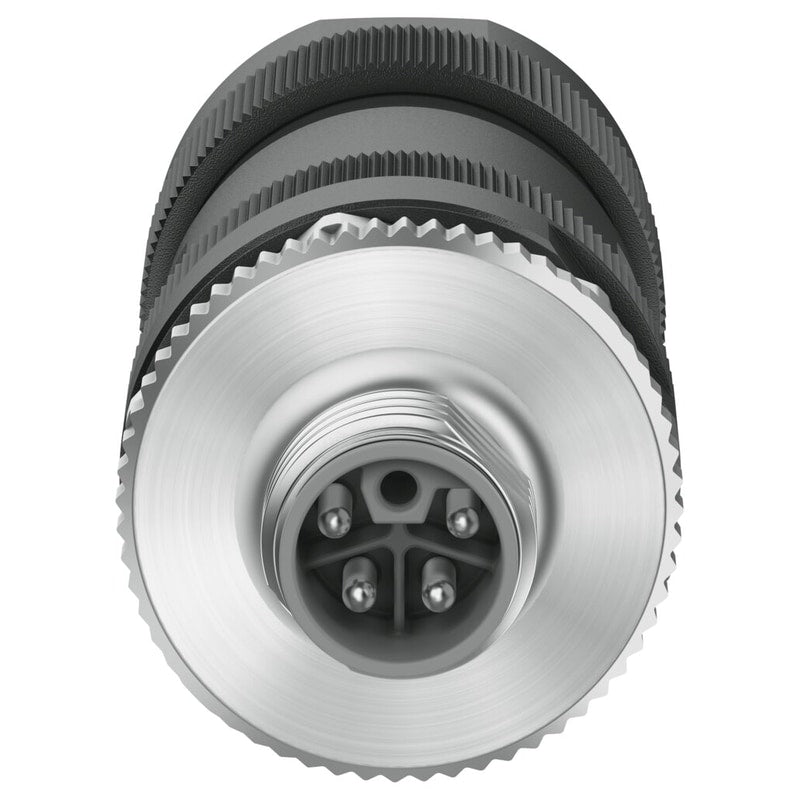

Power supply plug
NECL-S-L12G5-C2-Q10
8166791
GTIN 4052568605582
Vendor Festo
Regular price
$60.41
Unit price
NECL-S-L12G5-C2-Q10 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NECL-S-L12G5-C2-Q10
Regular price
$60.41
Unit price
NECL-S-L12G5-C2-Q10 is backordered and will ship as soon as it is back in stock.
| Based on norm | EN 61076-2-111 |
|---|---|
| Certification | c UL us - Recognized (OL) |
| Certificate issuing authority | UL E474609 |
| Type of mounting | Threaded |
| Cable outlet | Straight |
| Product weight | 42.89g |
| Electrical connection 1, function | Power supply |
| Electrical connection 1, design | Round |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, connection technology | M12x1, L-coded as per EN 61076-2-111 |
| Electrical connection 1, number of pins/wires | 5 |
| Electrical connection for input 1, connection pattern | 00995940 |
| Electrical connection 2, connection technology | Screw terminal |
| DC operating voltage range | 0V |
| Nominal operating voltage DC | 63V |
| Current rating at 40° C | 16A |
| Surge resistance | 1.5kV |
| Approved cable diameter | 8-13 mm for electrical connection 1 |
| Nominal conductor cross section | 2.5mm² |
| Nominal conductor cross section | AWG14 |
| Information on port cross section | max. 1.5 mm²/AWG16 when using wire end sleeves |
| Degree of protection | IP65 |
| Ambient temperature | -40°C |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Note on materials | RoHS-compliant |
| Contamination level | 3 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| Housing material | PA |
| Material of screw-type lock | Die-cast zinc, nickel-plated |
| Material of pin contacts | Copper alloy, gold-plated |
