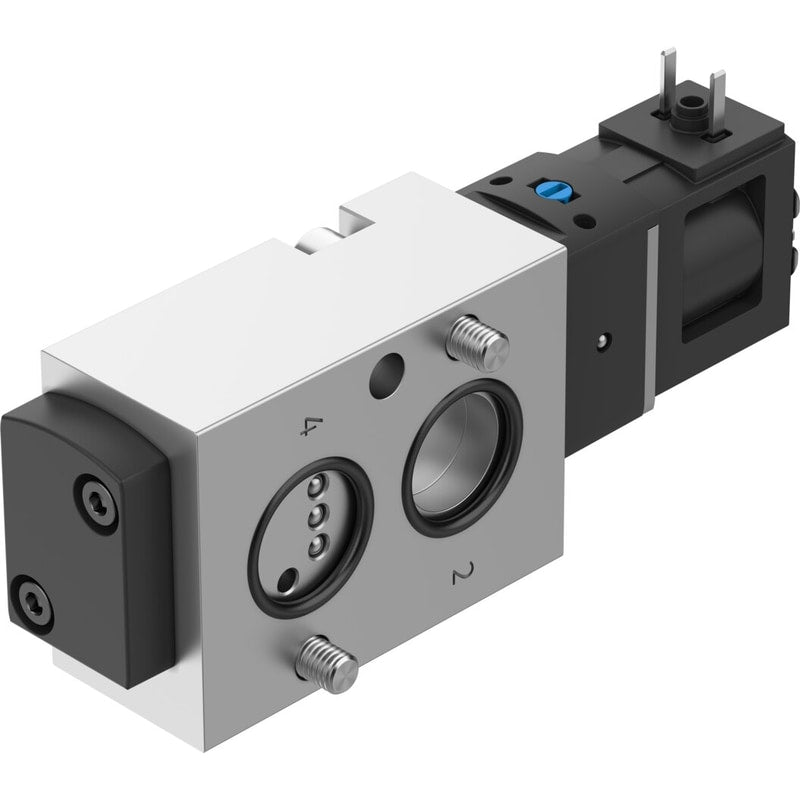

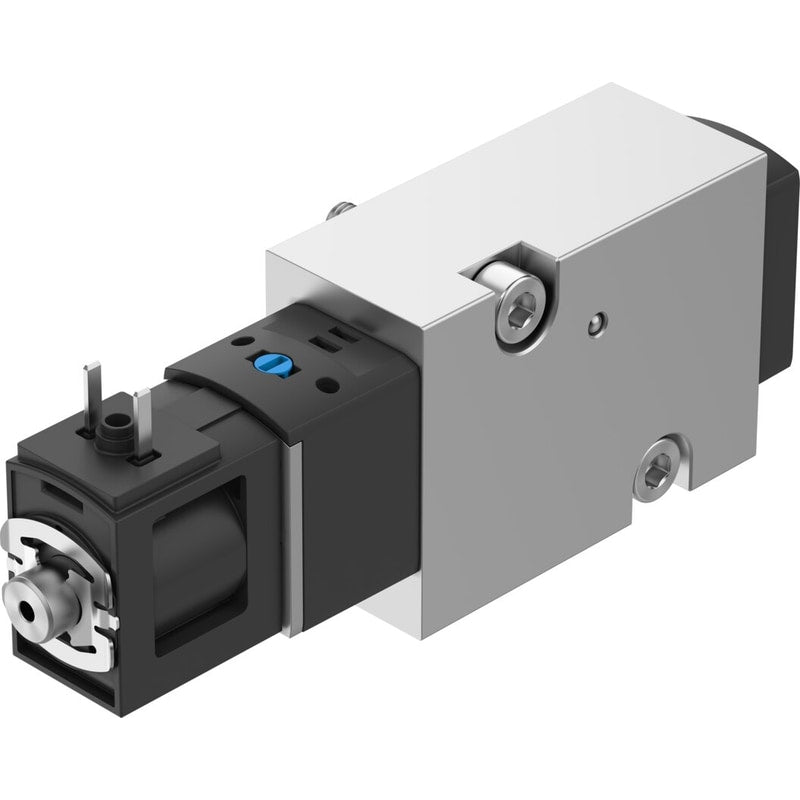

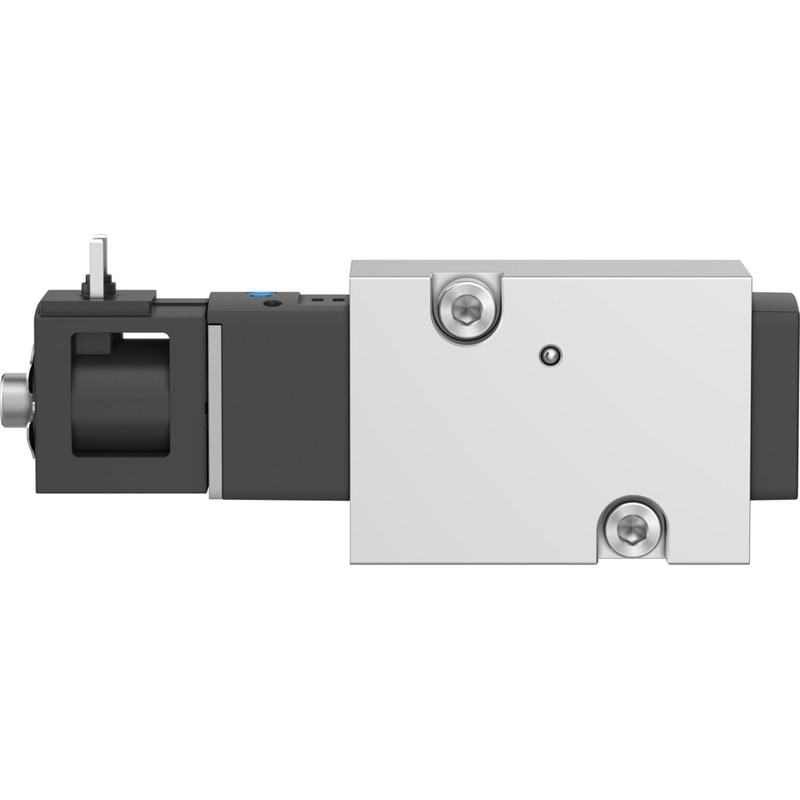

Solenoid valve
VSNC-FK-M32C-RD-G18-1C1-S
8166611
GTIN 4052568601614
Vendor Festo
- Structural design
- Piston slide with sealing ring
- Valve function
- 3/2, closed, monostable
- Normal nominal flow rate (normalized to DIN 1343)
- 400 l/min
- Operating pressure
- 2.5 bar - 8 bar
Regular price
$97.67
Unit price
VSNC-FK-M32C-RD-G18-1C1-S is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VSNC-FK-M32C-RD-G18-1C1-S
Regular price
$97.67
Unit price
VSNC-FK-M32C-RD-G18-1C1-S is backordered and will ship as soon as it is back in stock.
| Valve function | 3/2, closed, monostable |
|---|---|
| Actuation type | Electrical |
| Width | 25.5mm |
| Standard nominal flow rate | 400l/min |
| Pneumatic working port | NAMUR connection diagram |
| Operating voltage | 24V DC |
| Operating pressure | 0.25MPa |
| Operating pressure | 2.5bar |
| Structural design | Piston slide with sealing ring |
| Reset method | Mechanical spring |
| Degree of protection | IP65 |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Conforms to standard | VDI/VDE 3845 (NAMUR) |
| Manual override | Detenting |
| Type of control | Pilot-controlled |
| Pilot air supply port | Internal |
| Flow direction | Non-reversible |

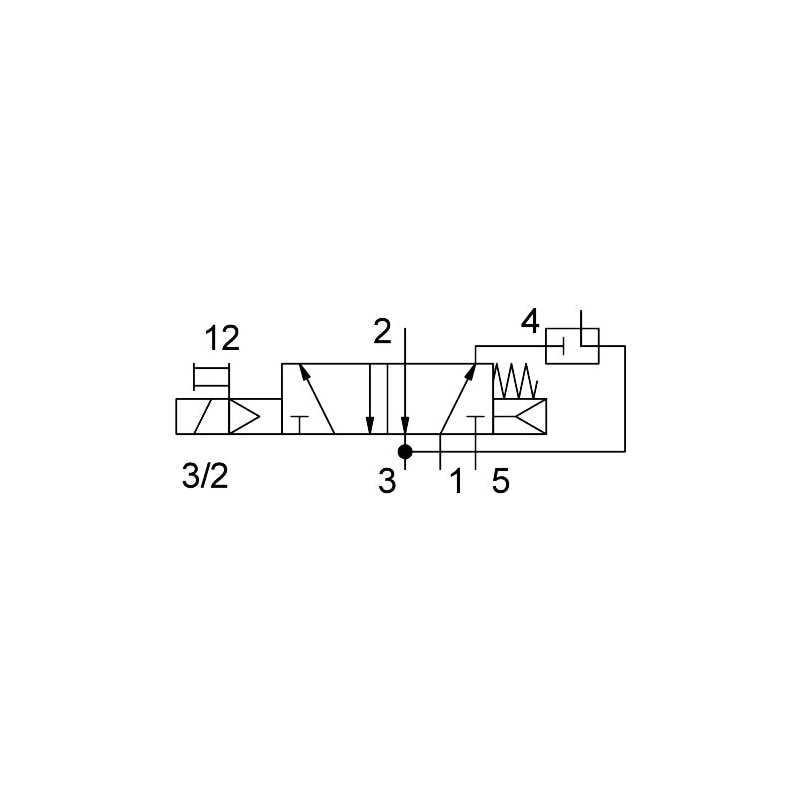

| Symbol | 00997362 |
| Lap | Overlap |
| b-value | 0.3 |
| C value | 2.1l/sbar |
| Standard nominal flow rate, exhaust air return 4->3 | 100l/min |
| Switching time off | 50ms |
| On switching time | 50ms |
| Duty cycle | 100% |
| Coil characteristics | 24 V DC: 2.4 W |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20°C |
| Temperature of medium | -20°C |
| Ambient temperature | -20°C |
| Product weight | 220g |
| Electrical connection | Form C |
| Type of mounting | With through-hole |
| Venting hole connection | Not ducted |
| Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | NAMUR connection diagram |
| Pneumatic connection 3 | G1/8 |
| Pneumatic connection 4 | NAMUR connection diagram |
| Pneumatic connection 5 | G1/8 |
| Note on materials | RoHS-compliant |
| Cover material | PA-reinforced |
| Seals material | NBR |
| Housing material | Wrought aluminum alloy |
| Manual override material | PA-reinforced |
| Material of piston | Wrought aluminum alloy |
| Material of screws | High-alloy stainless steel |
