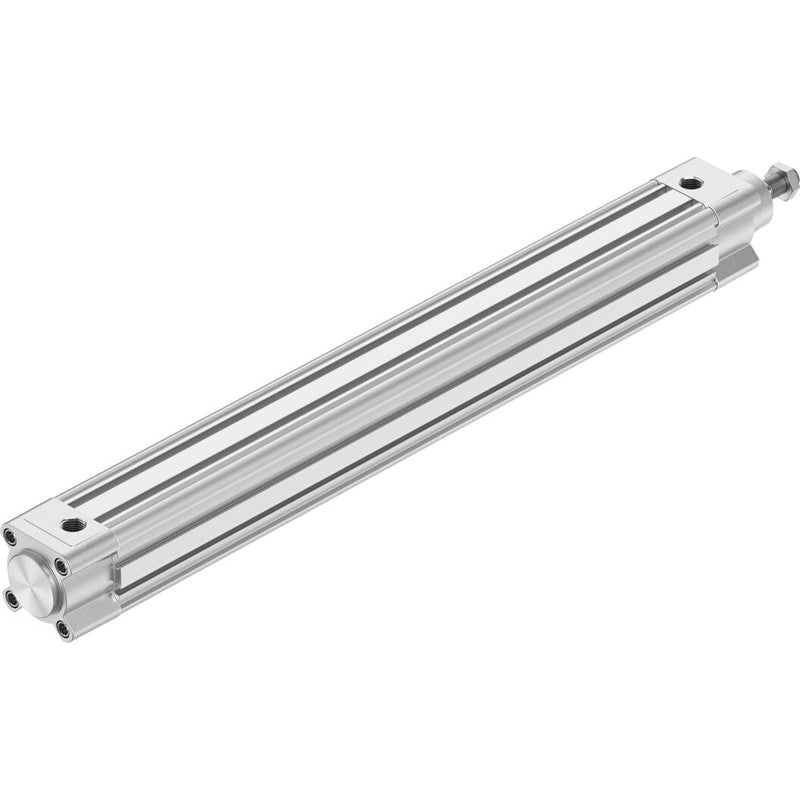

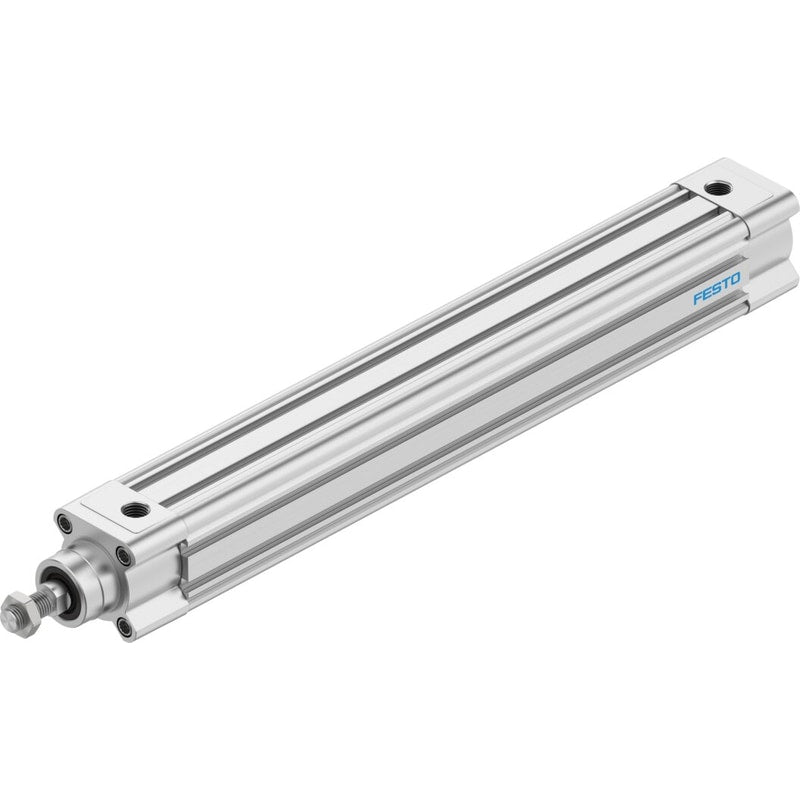

Standards-based cylinder
DSBC-40-400-D3-PPSA-N3
8165583
GTIN 4052568597863
Vendor Festo
- Mode of operation
- Double-acting
- Piston diameter
- 40 mm
- Theoretical force at 6 bar, advancing
- 754 N
- Stroke
- 400 mm
- Cushioning
- Self-adjusting pneumatic end-position cushioning
Regular price
$273.65
Unit price
DSBC-40-400-D3-PPSA-N3 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DSBC-40-400-D3-PPSA-N3
Regular price
$273.65
Unit price
DSBC-40-400-D3-PPSA-N3 is backordered and will ship as soon as it is back in stock.
| Stroke | 400mm |
|---|---|
| Piston diameter | 40 mm |
| Piston rod thread | M12x1.25 |
| Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | Any |
| Conforms to standard | ISO 15552 |
| Piston rod end | External thread |
| Structural design | Piston |
| Position sensing | For proximity sensor |
| Symbol | 00992970 |
| Variants | Piston rod at one end |
| Operating pressure | 0.06MPa |
| Operating pressure | 0.6bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C |
| Impact energy in the end positions | 0.7J |
| Cushioning length | 19mm |
| Theoretical force at 6 bar, retracting | 633N |
| Theoretical force at 6 bar, advancing | 754N |
| Moving mass at 0 mm stroke | 205g |
| Additional moving mass per 10 mm stroke | 16g |
| Basic weight with 0 mm stroke | 740g |
| Additional weight per 10 mm stroke | 37g |
| Type of mounting | Optionally: |
| Pneumatic connection | G1/4 |
| Note on materials | RoHS-compliant |
| Cover material | Die-cast aluminum, coated |
| Piston seal material | TPE-U(PU) |
| Material of piston | Wrought aluminum alloy |
| Piston rod material | High-alloy steel |
| Piston rod wiper material | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) |
| Cushion piston material | POM |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized |
| Nut material | Steel, galvanized |
| Material of bearing | POM |
| Flange screws material | Steel, galvanized |
