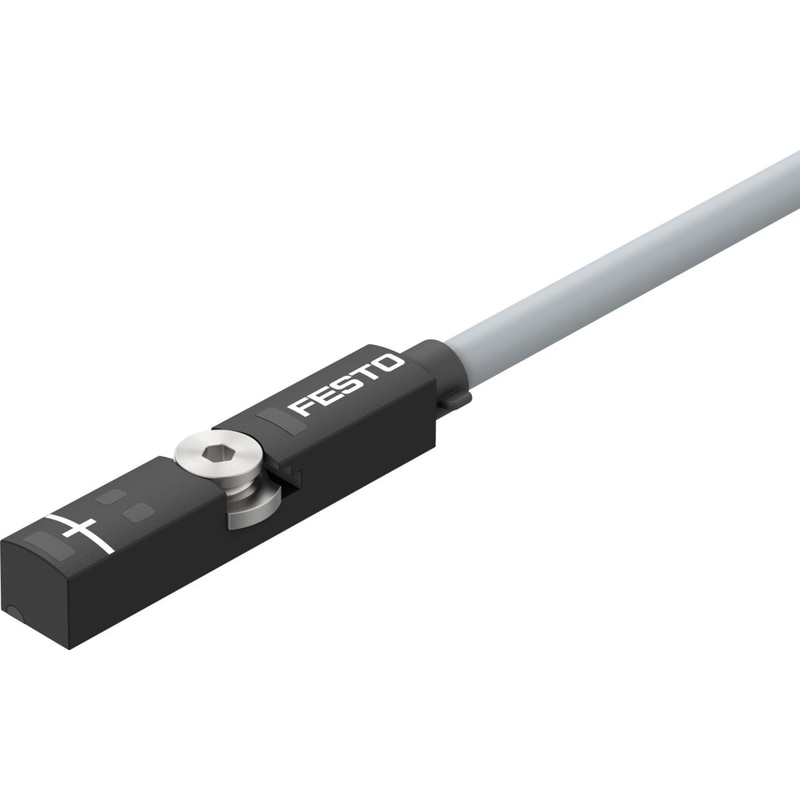

Proximity switch
SMT-8M-A-ZS-24V-E-5,0-OE
8165237
GTIN 4052568596187
Vendor Festo
- Electrical connection 1, connection technology
- Open end
- DC operating voltage range
- 7 V - 30 V
- Switching element function
- N/O contact
- Switching output
- Non-contact, 2-wire
Regular price
$56.94
Unit price
SMT-8M-A-ZS-24V-E-5,0-OE is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SMT-8M-A-ZS-24V-E-5,0-OE
Regular price
$56.94
Unit price
SMT-8M-A-ZS-24V-E-5,0-OE is backordered and will ship as soon as it is back in stock.
| Design | for T-slot |
|---|---|
| Based on norm | EN 60947-5-2 |
| Symbol | 00991623 |
| Certification | RCM compliance mark c UL us - Listed (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| KC characters | KC EMC |
| Explosion prevention and protection | Zone 2 (ATEX) Zone 22 (ATEX) |
| ATEX category gas | II 3G |
| Type of ignition protection for gas | Ex nA IIC T4 X Gc |
| ATEX category for dust | II 3D |
| Type of (ignition) protection for dust | Ex tc IIIC T120°C X Dc |
| Explosive ambient temperature | -40°C <= Ta <= +70°C |
| Special features | Oil-resistant |
| Note on materials | Free of copper and PTFE RoHS-compliant Halogen-free |
| Application note | Support / actuator-sensor overview "The right sensor for the actuator" |
| Measured variable | Position |
| Measuring principle | Magneto-resistive |
| Ambient temperature | -40 °C ... 85 °C |
| Repetition accuracy | 0.2 mm |
| Switching output | Non-contact, 2-wire |
| Switching element function | N/O contact |
| On time | ≤ 1 ms |
| Switch-off time | ≤ 1 ms |
| Max. switching frequency | 180 Hz |
| Max. output current | 80 mA |
| Max. output current in mounting kits | 80 mA |
| Max. switching capacity DC | 1.9 W |
| Max. switching capacity DC in mounting kits | 1.5 W |
| Voltage drop | < 6 V |
| Short-circuit protection | yes |
| Overload protection | Available |
| Rated operating voltage DC | 24 V |
| DC operating voltage range | 7 V ... 30 V |
| Reverse polarity protection | for all electrical connections |
| Electrical connection 1, connection type | Cable |
| Electrical connection 1, connection technology | Open end |
| Electrical connection 1, number of pins/wires | 2 |
| Connection outlet orientation | Longitudinal |
| Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request Cable chain: 5 million cycles, bending radius 28 mm Torsional resistance: > 300 000 cycles, ±270°/0.1 m |
| Cable length | 5 m |
| Cable characteristic | Suitability for energy chains/robot applications |
| Color cable sheath | Gray |
| Material of cable sheath | TPE-U(PUR) |
| Type of mounting | Screwed tightly Can be inserted in slot from above |
| Max. tightening torque | 0.6 Nm |
| Mounting position | Any |
| Product weight | 57.1 g |
| Housing colour | Black |
| Housing material | PA-reinforced High-alloy stainless steel |
| Switching status indication | LED yellow |
| Function reserve indication | LED orange |
| Ambient temperature with flexible cable installation | -20 °C ... 85 °C |
| Degree of protection | IP65 IP68 IP69K |
| LABS conformity | VDMA24364-B2-L |
| RSBP classification to CD-0033 | F1a |
| Cleanroom class | ISO Class 4 |
