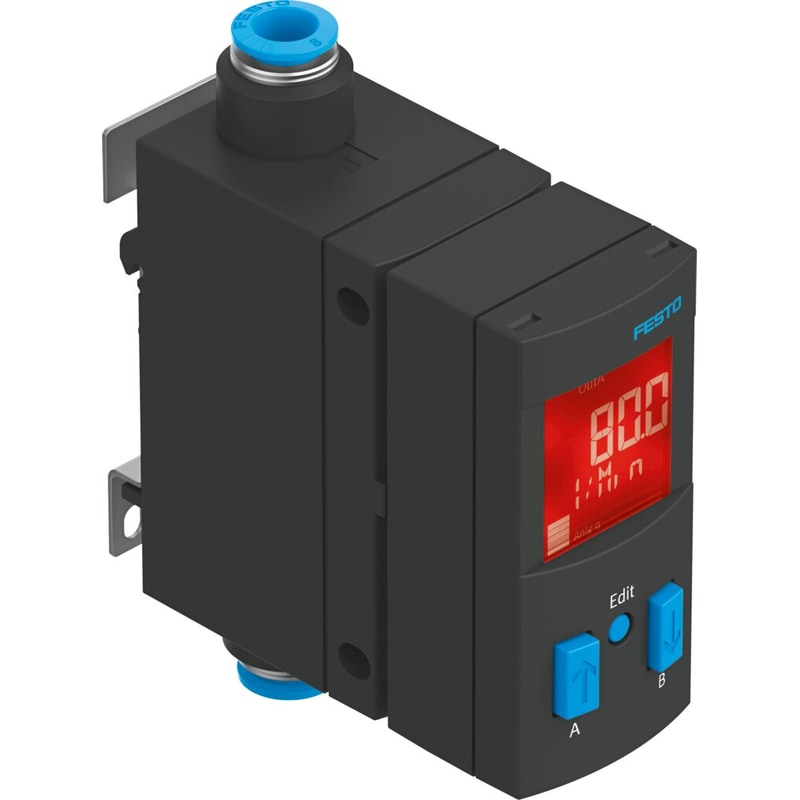

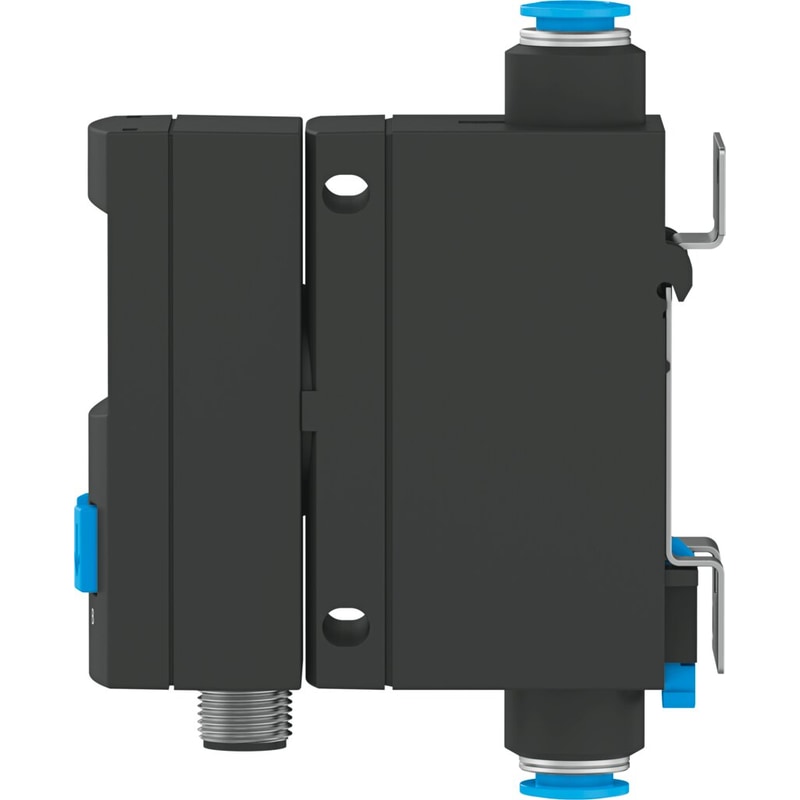

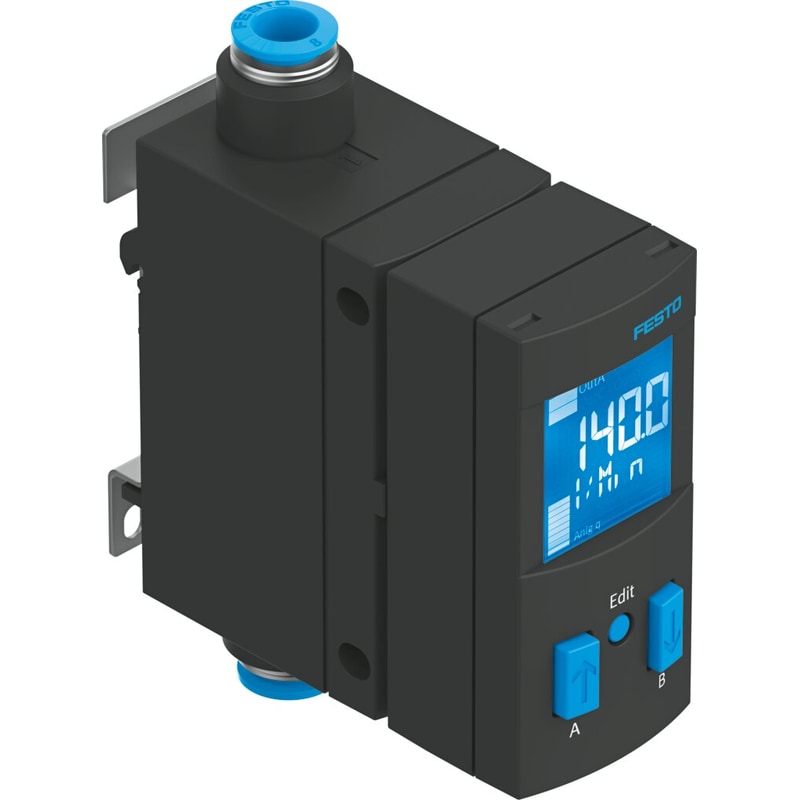

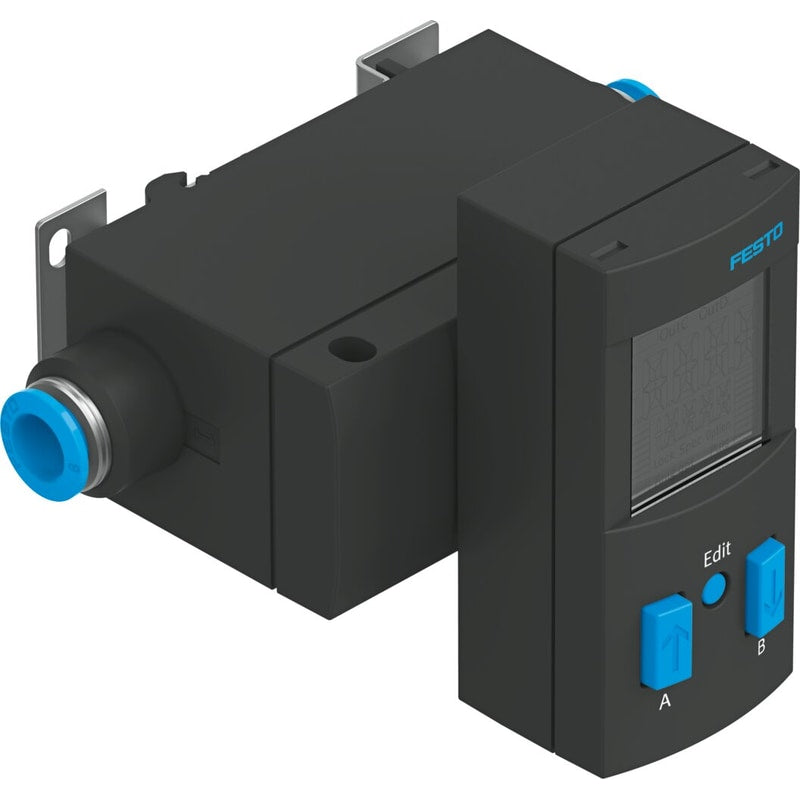

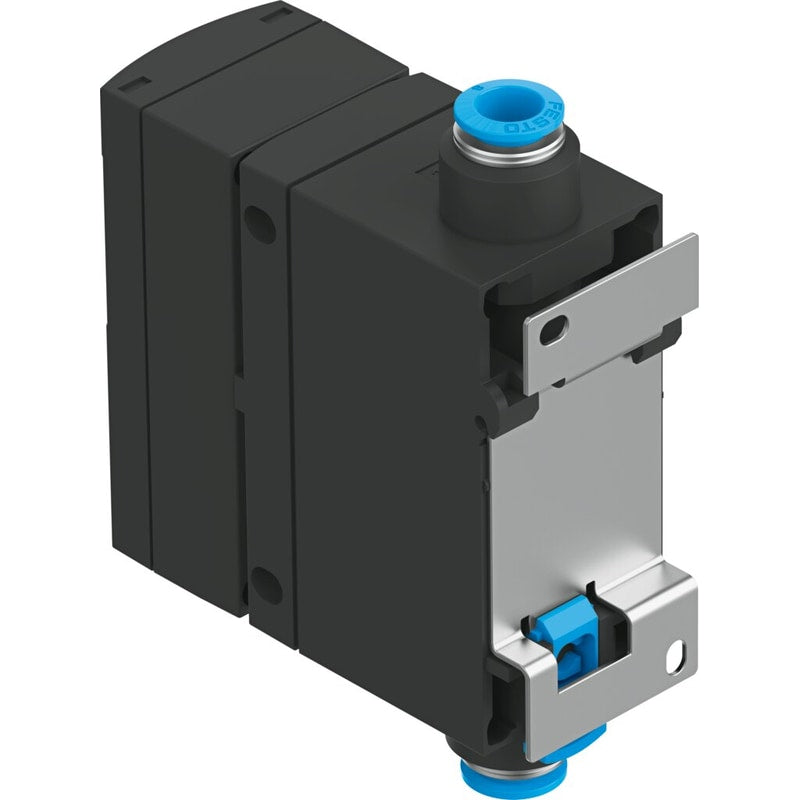

Flow sensor
SFAB-1000U-WQ10-PNLK-PNVBA-M12
8162835
GTIN 4052568594770
Vendor Festo
- Flow characteristic curve, end value
- 1000 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] - Carbon dioxide - Nitrogen
- Operating pressure
- 0 bar - 10 bar
- Pneumatic connection
- For pneumatic tubing outside diameter 10 mm
Regular price
$831.99
Unit price
SFAB-1000U-WQ10-PNLK-PNVBA-M12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SFAB-1000U-WQ10-PNLK-PNVBA-M12
Regular price
$831.99
Unit price
SFAB-1000U-WQ10-PNLK-PNVBA-M12 is backordered and will ship as soon as it is back in stock.
| Symbol | 00995566 |
|---|---|
| Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| Note on materials | RoHS-compliant |
| Measured variable | Mass flow rate |
| Flow direction | Unidirectional |
| Measuring principle | Thermal |
| Method of measurement | Heat loss |
| Flow measuring range start value | 10l/min |
| Flow measuring range end value | 1000l/min |
| Temperature measuring range start value | 0°C |
| Temperature measuring range end value | 50°C |
| Operating pressure | 0MPa |
| Operating pressure | 0bar |
| Operating medium | Argon |
| Temperature of medium | 0°C |
| Ambient temperature | 0°C |
| Nominal temperature | 23°C |
| Accuracy of flow rate | ± (3% o.m.v. + 0.3% FS) |
| Accuracy of temperature in ± °C | 5°C |
| Zero point repetition accuracy in ± %FS | 0.2%FS |
| Repetition accuracy margin in ± %FS | 0.8%FS |
| Temperature co-efficient margin in ± %FS/K | typ. 0. 1%FS/K |
| Pressure influence of margin in ±%FS/bar | 0.5%FS/b. |
| Switching output | 2 x PNP or 2 x NPN switchable |
| Switching function | Window comparator |
| Switching element function | N/C contact/N/O contact switchable |
| On time | 10ms |
| Switch-off time | 10ms |
| Max. output current | 100mA |
| Analog output | 0 - 10 V |
| Flow characteristic curve, start value | 0l/min |
| Flow characteristic curve, end value | 1000l/min |
| Temperature characteristic curve start value | 0°C |
| Temperature characteristic curve end value | 100°C |
| Output characteristic curve initial value | 0V |
| End value output characteristic curve | 10V |
| Output characteristic curve initial value | 4mA |
| End value output characteristic curve | 20mA |
| Max. load resistance of current output | 500Ohm |
| Min. load resistance of voltage output | 20kOhm |
| Short-circuit protection | yes |
| Overload protection | Available |
| Protocol | IO-Link® |
| IO-Link, revision ID | V1.1 |
| IO-Link, device profile | Function Extended identification |
| IO-Link, transmission rate | COM3 |
| IO-Link®, SIO mode support | Yes |
| IO-Link, port type | Class A |
| IO-Link, process data length output | 0bit |
| IO-Link, process data length input | 64bit |
| IO-Link®, process data content IN | Flow rate measured value 16-bit MDC |
| IO-Link®, service data contents IN | Volume / mass measured value 32-bit |
| IO-Link®, minimum cycle time | 1.2ms |
| IO-Link®, data memory required | 500byte |
| DC operating voltage range | 15V |
| Idle current | 90mA |
| Reverse polarity protection | for all electrical connections |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 5 |
| Electrical connection for input 1, connection pattern | 00995383 |
| Type of mounting | With through-hole |
| Mounting position | Any |
| Pneumatic connection | For pneumatic tubing outside diameter 10 mm |
| Product weight | 160g |
| Housing material | PA-reinforced |
| Display type | Illuminated LCD, multi-color |
| Displayable unit(s) | g |
| Setting options | IO-Link® |
| Protection against tampering | IO-Link® |
| Degree of protection | IP65 |
| Pressure drop | 100mbar |
| Protection class | III |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
