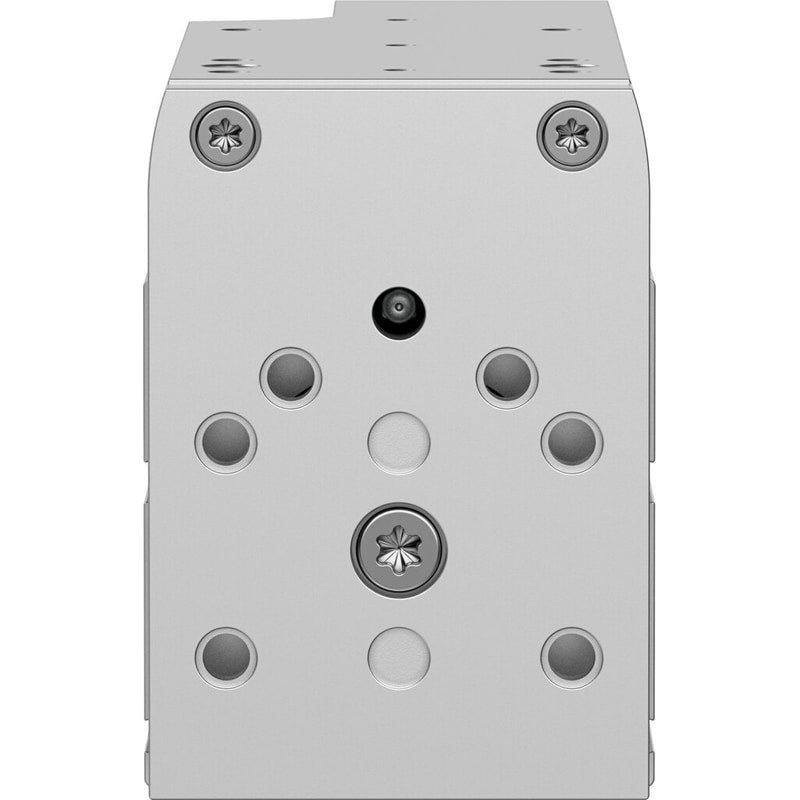

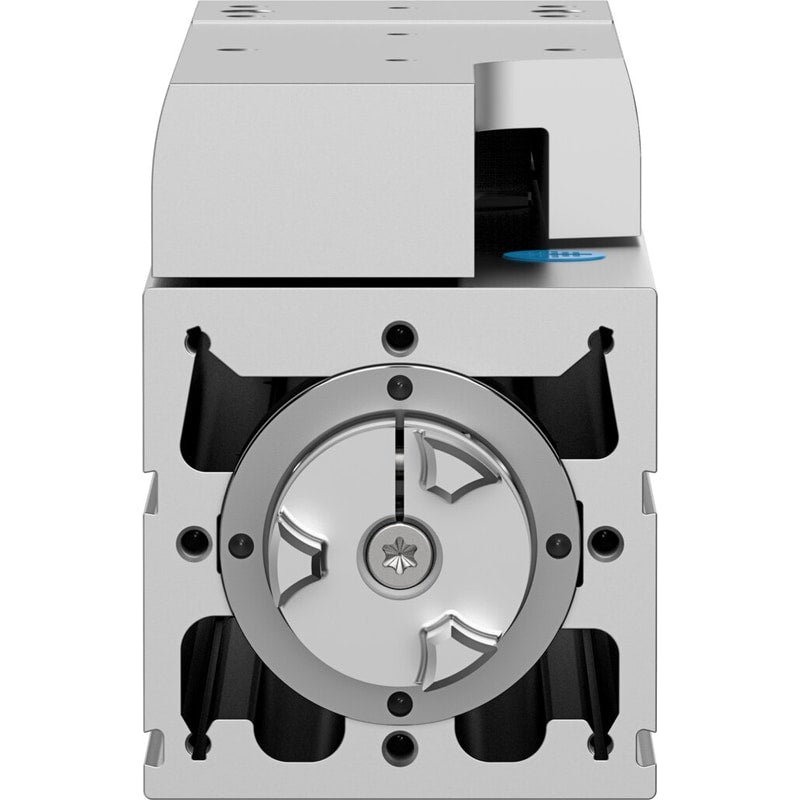

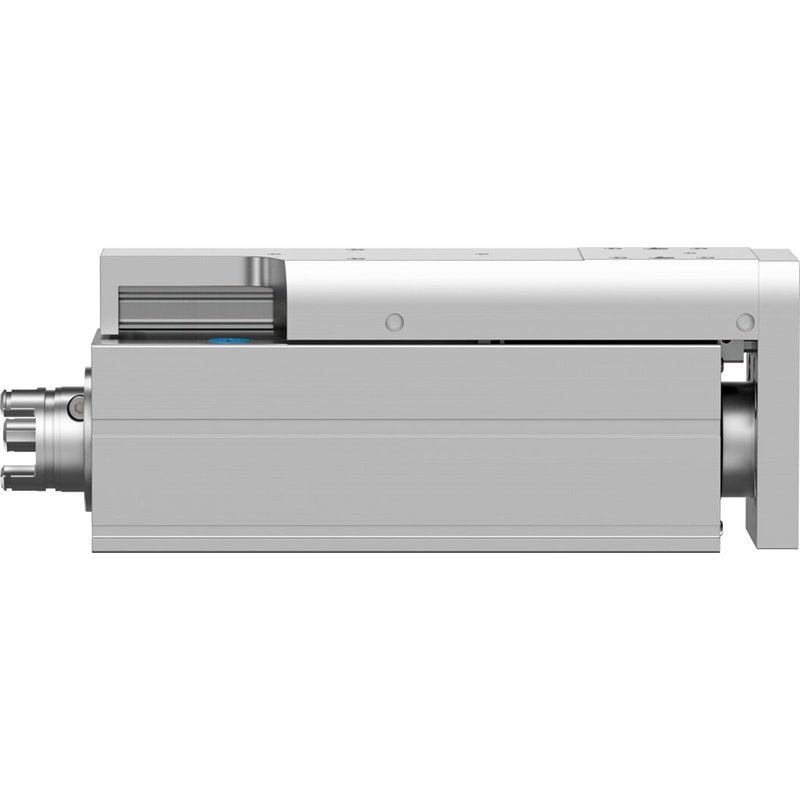

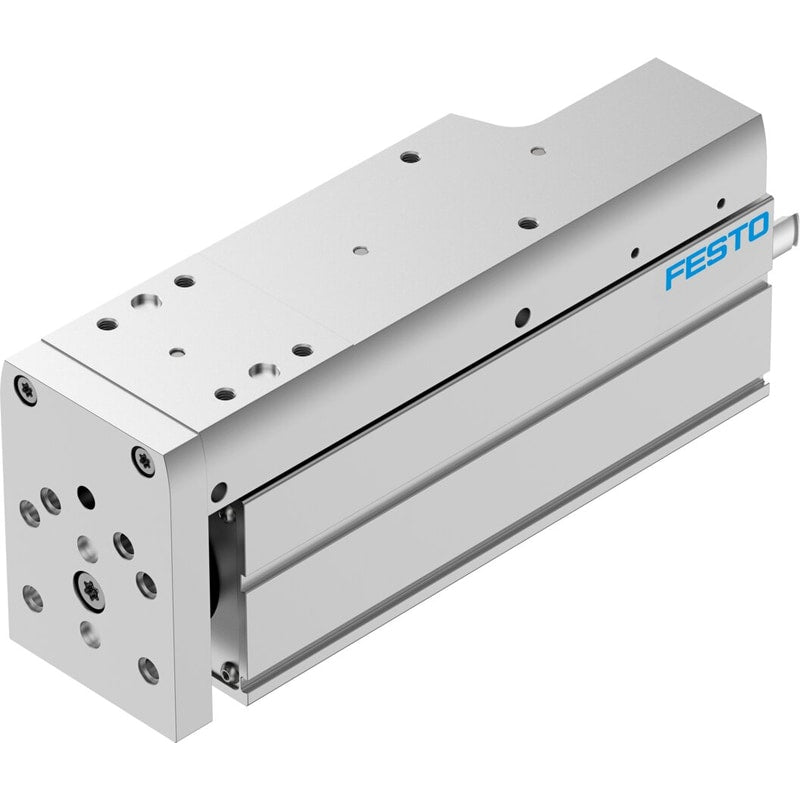

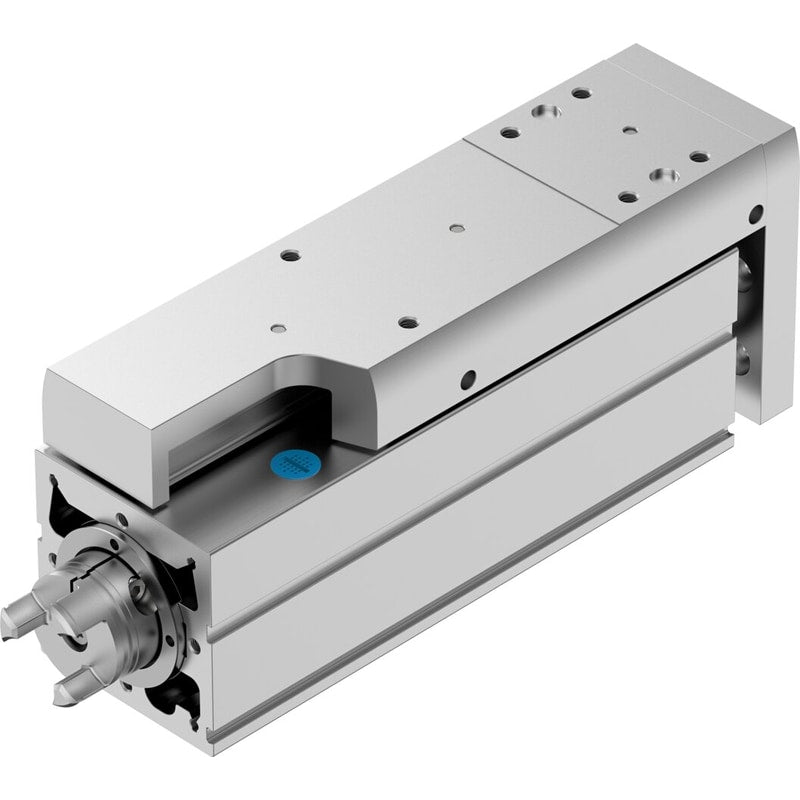

Mini slide
EGSC-BS-KF-60-100-5P
8162082
GTIN 4052568588236
Vendor Festo
- Size
- 60
- Max. feed force Fx
- 250 N
- Repetition accuracy
- ±0.015 mm
- Working stroke
- 100 mm
Regular price
$1,129.37
Unit price
EGSC-BS-KF-60-100-5P is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EGSC-BS-KF-60-100-5P
Regular price
$1,129.37
Unit price
EGSC-BS-KF-60-100-5P is backordered and will ship as soon as it is back in stock.
| Working stroke | 100mm |
|---|---|
| Size | 60 |
| Stroke reserve | 0mm |
| Reversing backlash | 150µm |
| Screw diameter | 12mm |
| Spindle pitch | 5mm/U |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Structural design | Electrical mini-slide |
| Motor type | Stepper motor |
| Homing | Fixed stop block positive |
| Spindle type | Ball screw drive |
| Symbol | 00992069 |
| Position sensing | For proximity sensor |
| Max. acceleration | 5m/s² |
| Max. speed | 0.25m/s |
| Repetition accuracy | ±0.015 mm |
| Duty cycle | 100% |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for the production of Li-ion batteries | Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils |
| Cleanroom class | Class 9 according to ISO 14644-1 |
| Noise level | 55dB(A) |
| Degree of protection | IP40 |
| Ambient temperature | 0°C |
| Fixed bearing dynamic basic load rating | 13321N |
| Linear guide dynamic basic load rating | 13400N |
| Dynamic basic load rating, ball screw drive | 5900N |
| Max. force Fy | 4937N |
| Max. force Fz | 4937N |
| Max. torque Mx | 20Nm |
| Max. torque My | 30Nm |
| Max. torque Mz | 30Nm |
| Max. radial force on actuator shaft | 230N |
| Max. feed force Fx | 250N |
| Guide value for payload, horizontal | 25kg |
| Guide value for payload, vertical | 25kg |
| Ball screw drive statistical basic load rating | 10600N |
| Linear guide statistical basic load rating | 26900N |
| Mass moment of inertia JH per meter of stroke | 0.11539kgcm² |
| Mass moment of inertia JL per kg of payload | 0.00633kgcm² |
| Mass moment of inertia JO | 0.06624kgcm² |
| Feed constant | 5mm/U |
| Statistical fixed bearing load rating | 7000N |
| Reference value, running performance | 5000km |
| Maintenance interval | Life-time lubrication |
| Moving mass at 0 mm stroke | 675g |
| Additional moving mass per 10 mm stroke | 40g |
| Product weight | 2505g |
| Basic weight with 0 mm stroke | 1555g |
| Additional weight per 10 mm stroke | 95g |
| Type of mounting | With internal thread |
| Interface code, actuator | T42 |
| Note on materials | RoHS-compliant |
| Slide carriage material | Roller bearing steel |
| Guide rail material | Roller bearing steel |
| Housing material | Wrought aluminum alloy, anodized |
| Material of yoke plate | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy stainless steel |
| Slide material | Wrought aluminum alloy, anodized |
| Spindle nut material | Roller bearing steel |
| Spindle material | Roller bearing steel |
