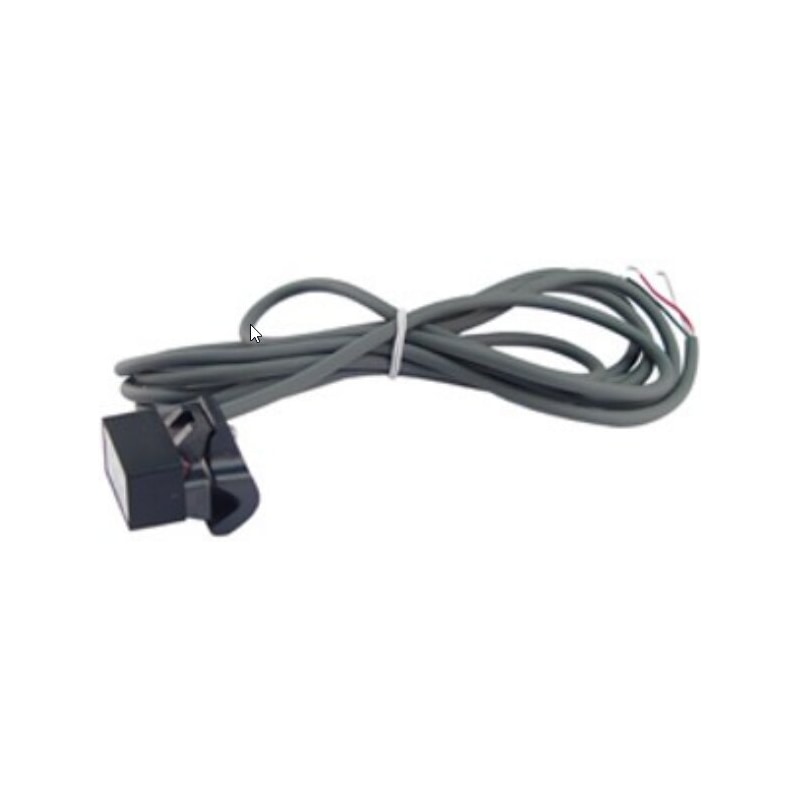

Proximity switch
SDBF-FDS-1L-NU-K-9-N-LE
8161168
GTIN 4052568600099
Vendor Festo
- Design
- Block design
- DC operating voltage range
- 6 V - 24 V
- Max. switching capacity DC
- 24 W
- Switching output
- NPN
Regular price
$83.92
Unit price
SDBF-FDS-1L-NU-K-9-N-LE is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SDBF-FDS-1L-NU-K-9-N-LE
Regular price
$83.92
Unit price
SDBF-FDS-1L-NU-K-9-N-LE is backordered and will ship as soon as it is back in stock.
| Design | Block design |
|---|---|
| Note on materials | RoHS-compliant |
| Measured variable | Position |
| Measuring principle | Magneto-resistive |
| Ambient temperature | -20 °C ... 80 °C |
| Ambient temperature Fahrenheit | -4 °F ... 176 °F |
| Switching output | NPN |
| Switching element function | N/O contact |
| On time | 0.002 ms |
| Switch-off time | 0 ms |
| Max. output current | 1000 mA |
| Max. switching capacity DC | 24 W |
| Voltage drop | 0.5 V |
| Short-circuit protection | no |
| DC operating voltage range | 6 V ... 24 V |
| Reverse polarity protection | no |
| Electrical connection 1, connection type | Cable |
| Electrical connection 1, connection technology | Open end |
| Electrical connection 1, number of pins/wires | 3 |
| Connection outlet orientation | Transverse |
| Color cable sheath | Gray |
| Material of cable sheath | PVC |
| Type of mounting | Clamped |
| Mounting position | Any |
| Housing colour | Black |
| Housing material | PA |
| Switching status indication | LED |
| Ambient temperature with flexible cable installation | -20 °C ... 80 °C |
| Degree of protection | IP67 NEMA 4 |
| LABS conformity | VDMA24364 zone III |
