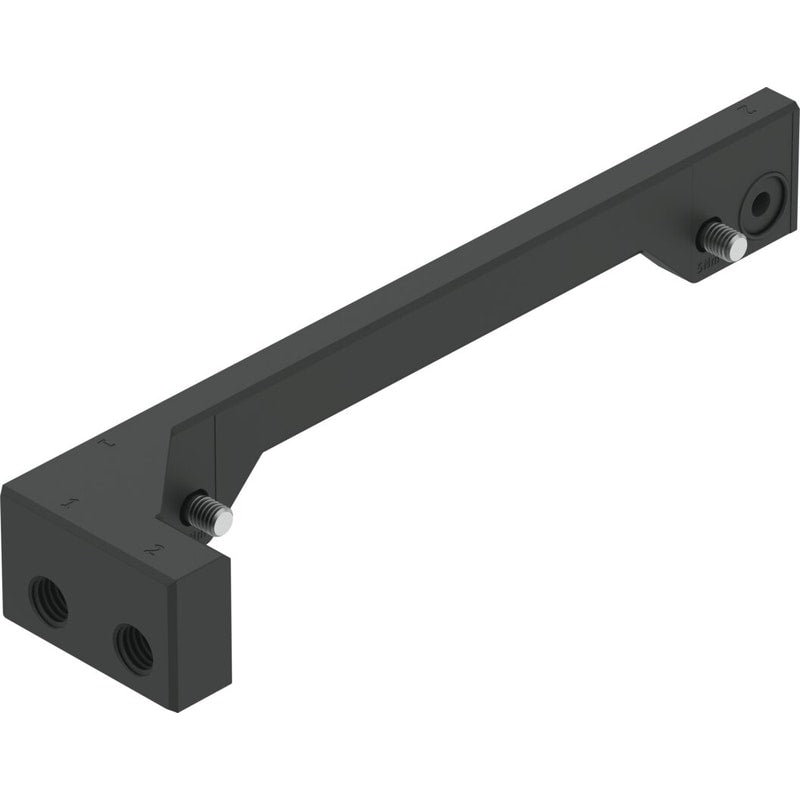

Connection kit
DADG-AK-G8-25-100
8159816
GTIN 4052568585945
Vendor Festo
Regular price
$258.61
Unit price
DADG-AK-G8-25-100 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
DADG-AK-G8-25-100
Regular price
$258.61
Unit price
DADG-AK-G8-25-100 is backordered and will ship as soon as it is back in stock.
| Size | 25 |
|---|---|
| Stroke | 100 mm |
| Operating pressure | 0.1 MPa ... 0.8 MPa |
| Operating pressure | 1 bar ... 8 bar |
| Operating pressure | 14.5 psi ... 116 psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -10 °C ... 60 °C |
| Max. tightening torque | 5 Nm |
| Tightening torque tolerance | ±10% |
| Max. tightening torque, pneumatic connection 1 | 3 Nm |
| Product weight | 59 g |
| Pneumatic connection | G1/8 |
| Adapter material | Epoxy resin |
| Seals material | FPM |
| Material of screws | Steel, coated |
