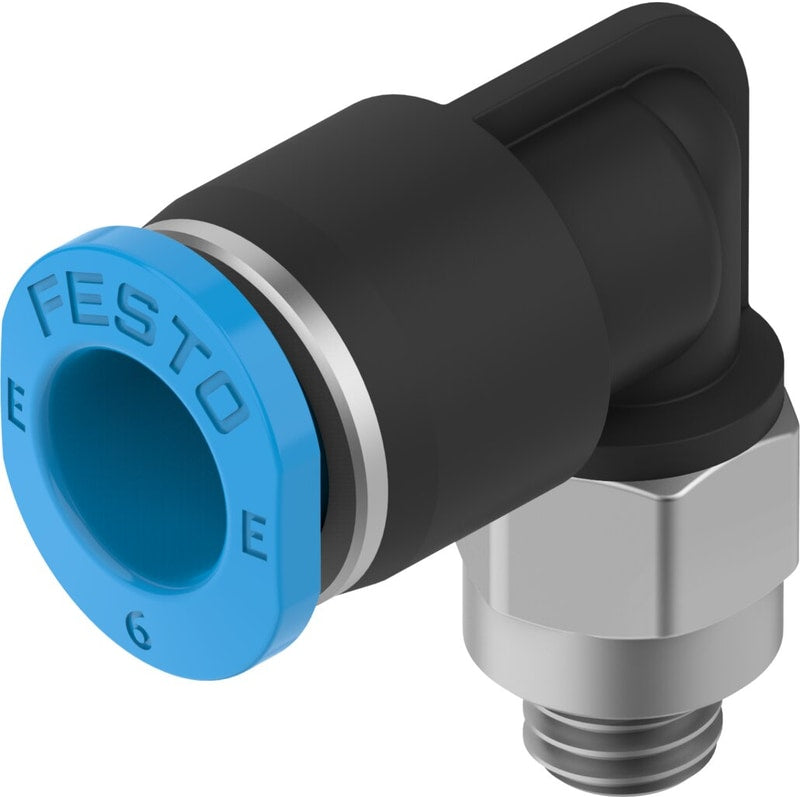

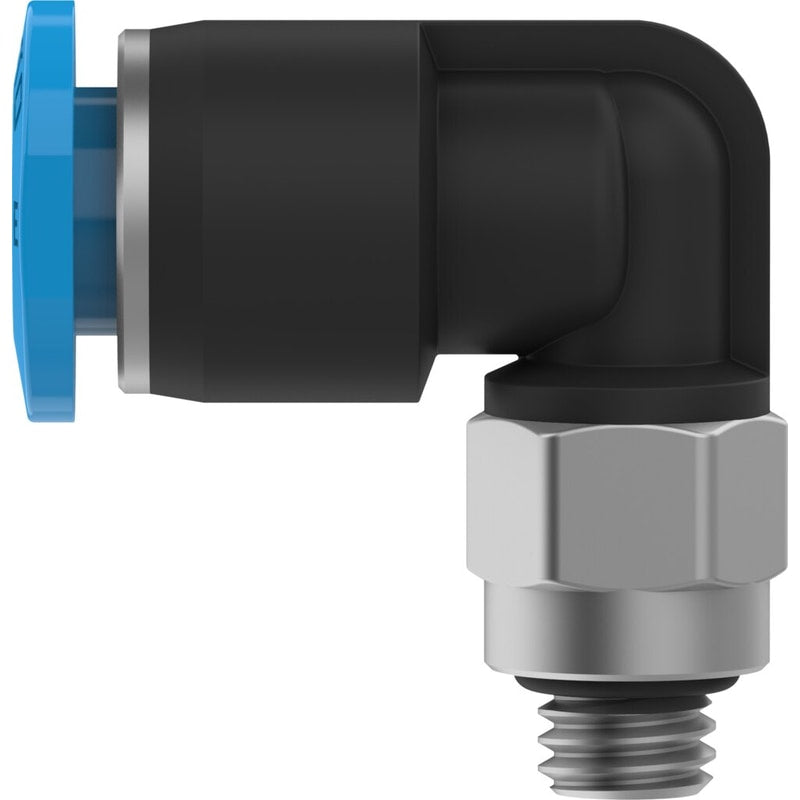

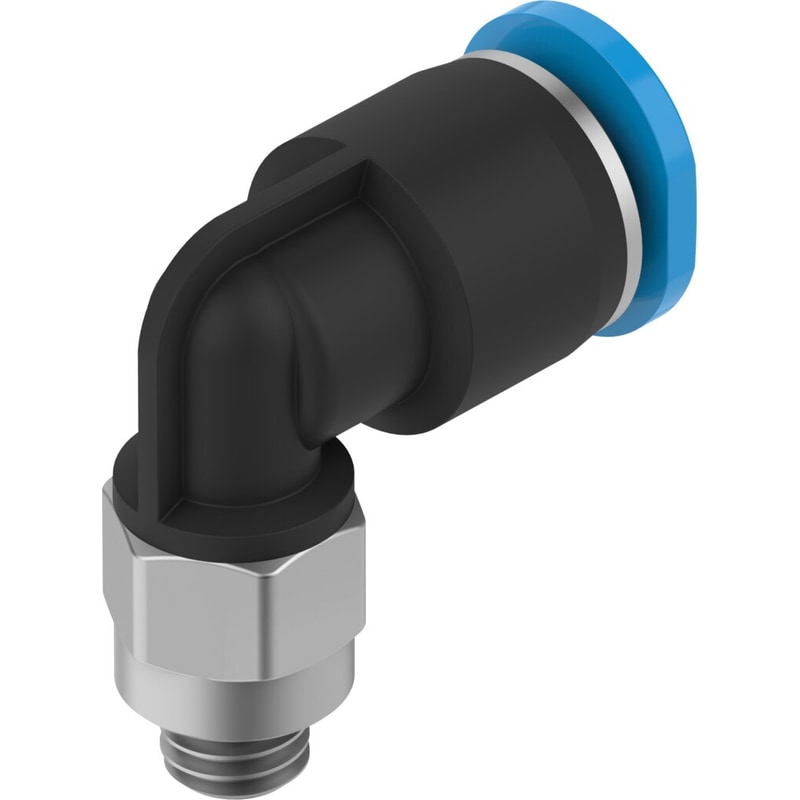

Push-in fitting
NPQE-L-M5-Q6-F1A-P10
8158776
GTIN 4052568599034
Vendor Festo
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Design
- L-shape
- Ambient temperature
- -5 °C - 60 °C
- Nominal width
- 2.3 mm
Regular price
$7.17
Unit price
NPQE-L-M5-Q6-F1A-P10 Push-in fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NPQE-L-M5-Q6-F1A-P10
Regular price
$7.17
Unit price
NPQE-L-M5-Q6-F1A-P10 Push-in fitting is backordered and will ship as soon as it is back in stock.
| Size | Mini |
|---|---|
| Nominal width | 2.3mm |
| Type of seal on screwed trunnion | Sealing ring |
| Mounting position | Any |
| Design | L-shape |
| Pack size | 10 |
| Structural design | Push-pull principle |
| Variants | Metals with copper, zinc or nickel as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. |
| Operating pressure for entire temperature range | -0.095MPa |
| Operating pressure for entire temperature range | -0.95bar |
| Operating pressure for entire temperature range | -13.775psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for the production of Li-ion batteries | Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils |
| Cleanroom class | Class 4 according to ISO 14644-1 |
| Ambient temperature | -5°C |
| Nominal tightening torque | 0.8Nm |
| Tolerance for nominal tightening torque | ± 5 % |
| Product weight | 3.72g |
| Type of mounting | External hexagon, AF 8 |
| Pneumatic connection 1 | External thread M5 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Releasing ring color | Blue |
| Note on materials | RoHS-compliant |
| Housing material | PBT |
| Material of threaded seal | NBR |
| Releasing ring material | POM |
| O-ring material | NBR |
| Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel |
