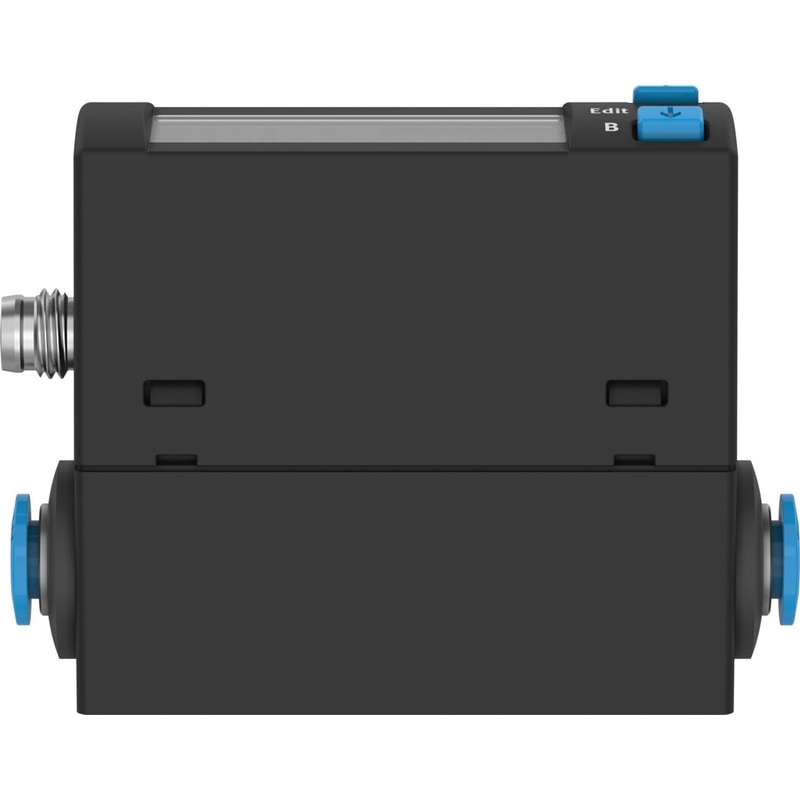

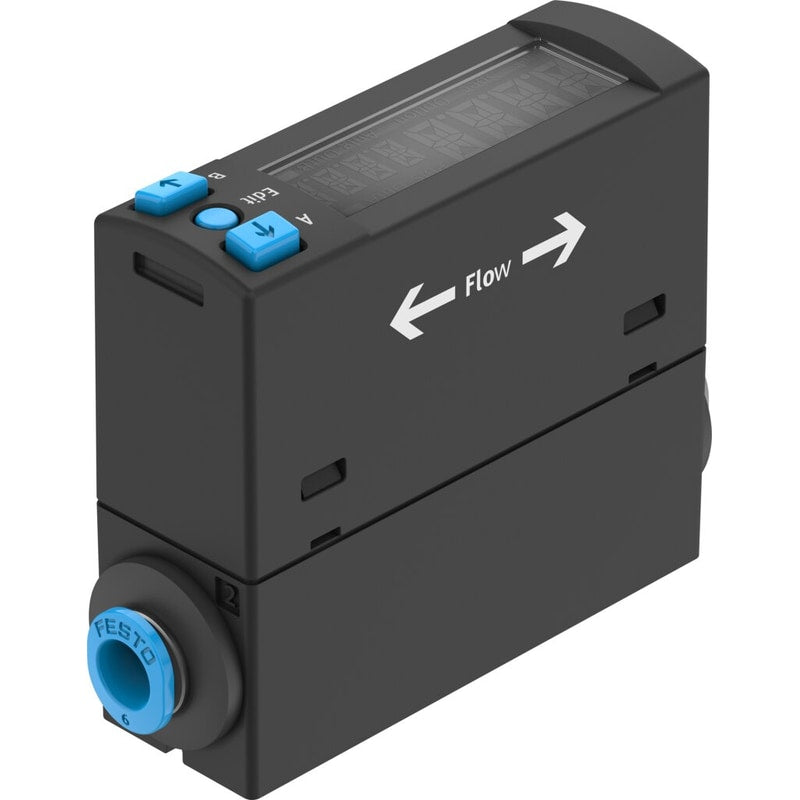

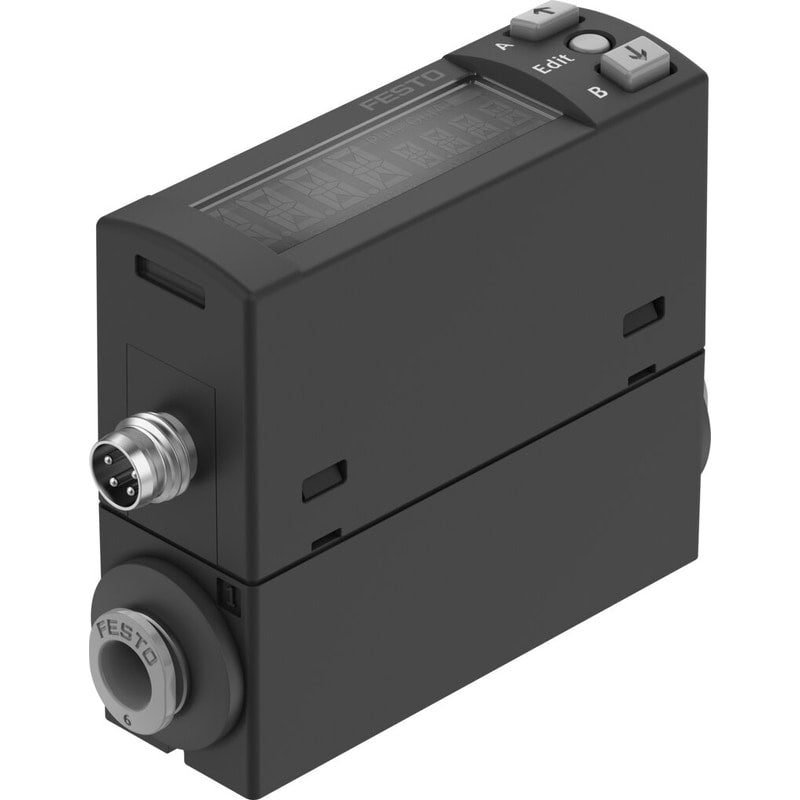

Flow sensor
SFAH-200U-Q6S-PNLK-PNVBA-M8
8158421
GTIN 4052568584146
Vendor Festo
- Flow characteristic curve, end value
- 200 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [6:4:4] - Nitrogen
- Operating pressure
- -0.9 bar - 10 bar
- Flow direction
- Unidirectional
Regular price
$491.43
Unit price
SFAH-200U-Q6S-PNLK-PNVBA-M8 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SFAH-200U-Q6S-PNLK-PNVBA-M8
Regular price
$491.43
Unit price
SFAH-200U-Q6S-PNLK-PNVBA-M8 is backordered and will ship as soon as it is back in stock.
| Symbol | 00995794 |
|---|---|
| Certification | RCM compliance mark c UL us - Listed (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| KC characters | KC EMC |
| Certificate issuing authority | UL E322346 |
| Note on materials | RoHS-compliant |
| Measured variable | Mass flow rate Volumetric flow rate |
| Flow direction | Unidirectional |
| Measuring principle | Thermal |
| Method of measurement | Heat transfer |
| Flow measuring range start value | 4 l/min |
| Flow measuring range end value | 200 l/min |
| Operating pressure | -0.9 bar ... 10 bar |
| Operating medium | Argon Compressed air as per ISO 8573-1:2010 [6:4:4] Nitrogen |
| Temperature of medium | 0 °C ... 50 °C |
| Ambient temperature | 0 °C ... 50 °C |
| Nominal temperature | 23 °C |
| Accuracy of flow rate | ± (2% o.m.v. + 1% FS) |
| Zero point repetition accuracy in ± %FS | 0.2 %FS |
| Repetition accuracy margin in ± %FS | 0.8 %FS |
| Temperature co-efficient margin in ± %FS/K | typ. 0.15% FS/K |
| Pressure influence of margin in ±%FS/bar | 1 %FS/b. |
| Switching output | 2 x PNP or 2 x NPN switchable |
| Switching function | Window comparator Threshold value comparator Auto difference monitoring |
| Switching element function | N/C contact/N/O contact switchable |
| Max. output current | 100 mA |
| Analog output | 0 - 10 V 4 - 20 mA 1 - 5 V |
| Flow characteristic curve, start value | 0 l/min |
| Flow characteristic curve, end value | 200 l/min |
| Max. load resistance of current output | 500 Ohm |
| Min. load resistance of voltage output | 20 kOhm |
| Short-circuit protection | yes |
| Overload protection | Available |
| Protocol | IO-Link® |
| IO-Link®, protocol version | Device V 1.1 |
| IO-Link®, profile | Smart sensor profile |
| IO-Link®, function classes | Binary data channel (BDC) Process data variable (PDV) Identification Diagnostics Teach channel |
| IO-Link®, communication mode | COM2 (38,4 kBd) |
| IO-Link®, SIO mode support | Yes |
| IO-Link®, port class | A |
| IO-Link®, process data width IN | 3 Byte |
| IO-Link®, process data content IN | 1 bit BDC (volume monitoring) 14 bit PDV (flow measurement) 2 bit BDC (flow monitoring) |
| IO-Link®, service data contents IN | 32 bit volume/mass measurement |
| IO-Link®, minimum cycle time | 4 ms |
| IO-Link®, data memory required | < 500 byte |
| DC operating voltage range | 22 V ... 26 V |
| Idle current | ≤ 25 mA |
| Reverse polarity protection | for all electrical connections |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, connection technology | M8x1 A-coded as per EN 61076-2-104 |
| Electrical connection 1, number of pins/wires | 4 |
| Electrical connection for input 1, connection pattern | 00991171 |
| Type of mounting | With accessories |
| Mounting position | Any |
| Pneumatic connection | For pneumatic tubing outside diameter 6 mm |
| Pneumatic connection, outlet direction | Straight |
| Product weight | 60 g |
| Housing material | PA-reinforced |
| Materials in contact with the media | Wrought aluminum alloy, anodized Epoxy NBR PA-reinforced Silicon Silicon nitride High-alloy stainless steel |
| Display type | Illuminated LCD, multi-color |
| Displayable unit(s) | g g/min l l/min scft scft/h scft/min |
| Setting options | IO-Link® Teach-in Via display and pushbuttons |
| Protection against tampering | IO-Link® PIN code |
| Degree of protection | IP40 |
| Pressure drop | 56 mbar |
| Protection class | III |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS conformity | VDMA24364-B2-L |
