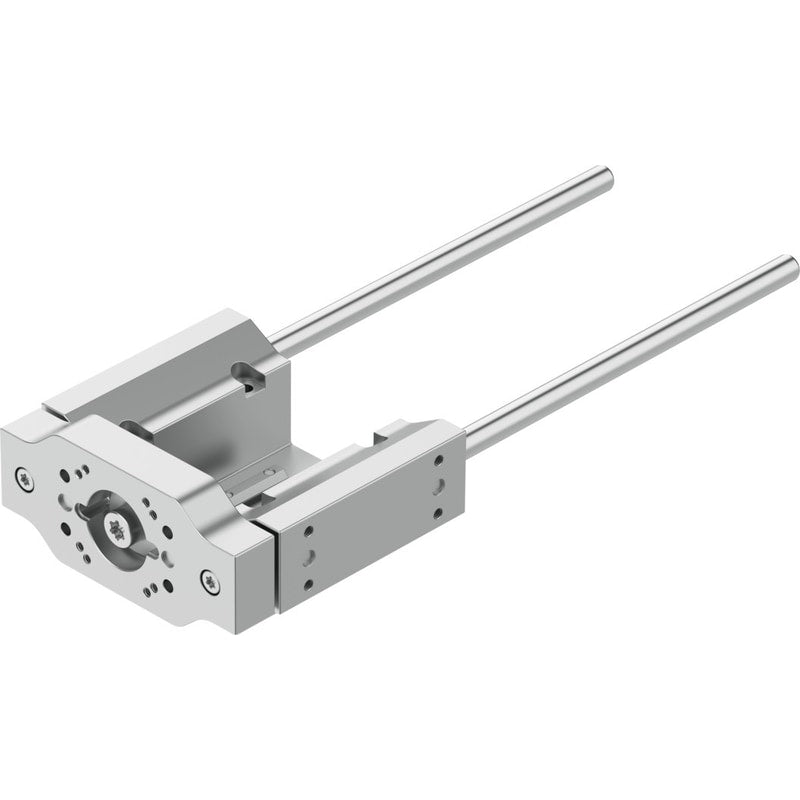

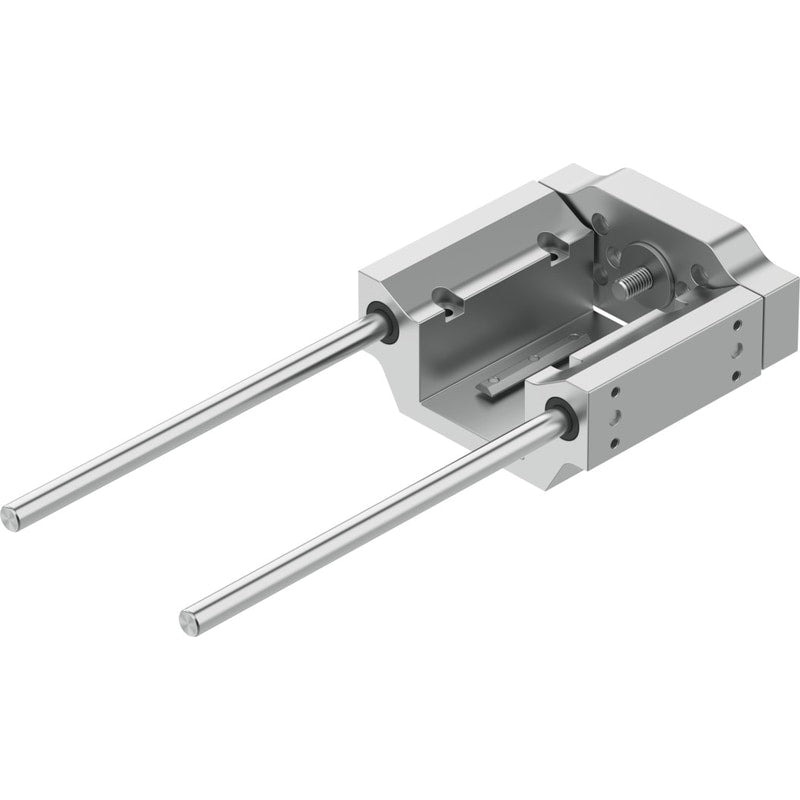

Guide unit
EAGF-P2-KF-60-300
8158031
GTIN 4052568605490
Vendor Festo
Regular price
$665.42
Unit price
EAGF-P2-KF-60-300 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EAGF-P2-KF-60-300
Regular price
$665.42
Unit price
EAGF-P2-KF-60-300 is backordered and will ship as soon as it is back in stock.
| Size | 60 |
|---|---|
| Stroke | 300mm |
| Reversing backlash | 0µm |
| Mounting position | Any |
| Guide | Recirculating ball bearing guide |
| Structural design | Guide |
| Max. acceleration | 25m/s² |
| Max. speed | 1m/s |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Degree of protection | IP40 |
| Ambient temperature | 0°C |
| Max. force Fy | 380N |
| Max. force Fy static | 510N |
| Max. force Fz | 380N |
| Max. force Fz static | 510N |
| Max. torque Mx | 20Nm |
| Max. static moment Mx | 27Nm |
| Max. torque My | 15Nm |
| Max. static moment My | 20Nm |
| Max. torque Mz | 15Nm |
| Max. static moment Mz | 20Nm |
| Displacement force | 3N |
| Moving mass at 0 mm stroke | 583g |
| Basic weight with 0 mm stroke | 1614g |
| Additional weight per 10 mm stroke | 17.8g |
| Additional moving mass per 10 mm stroke | 17.8g |
| Center of gravity of moving mass with 0 mm stroke | 31mm |
| Center of gravity of moving mass with 10 mm stroke | 4.3mm |
| Type of mounting | With internal thread |
| Note on materials | RoHS-compliant |
| Material of guide component | Tempered steel |
| Housing material | Wrought aluminum alloy |
| Material of yoke plate | Wrought aluminum alloy |
