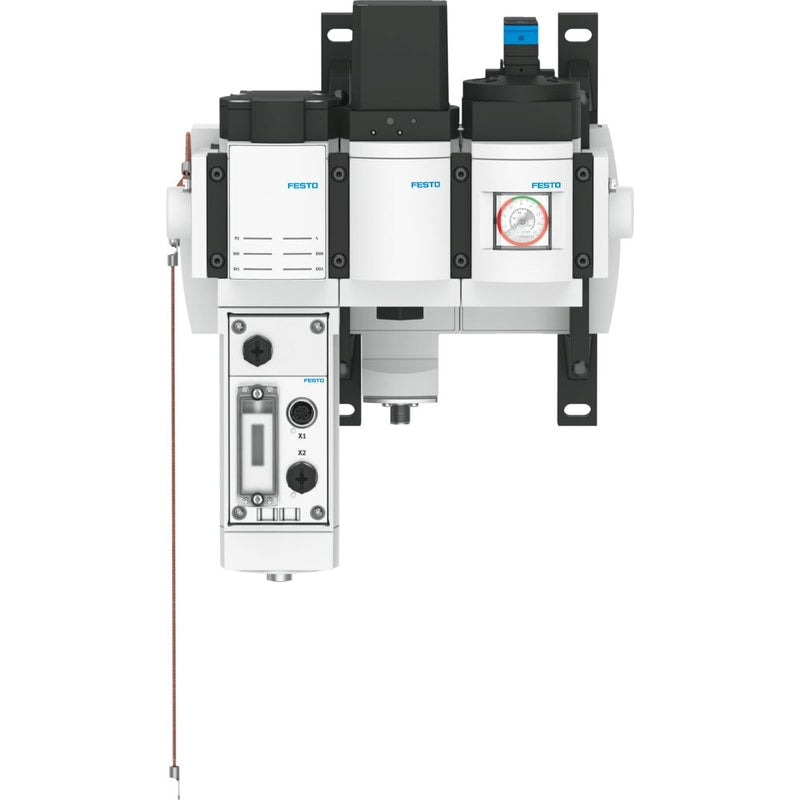

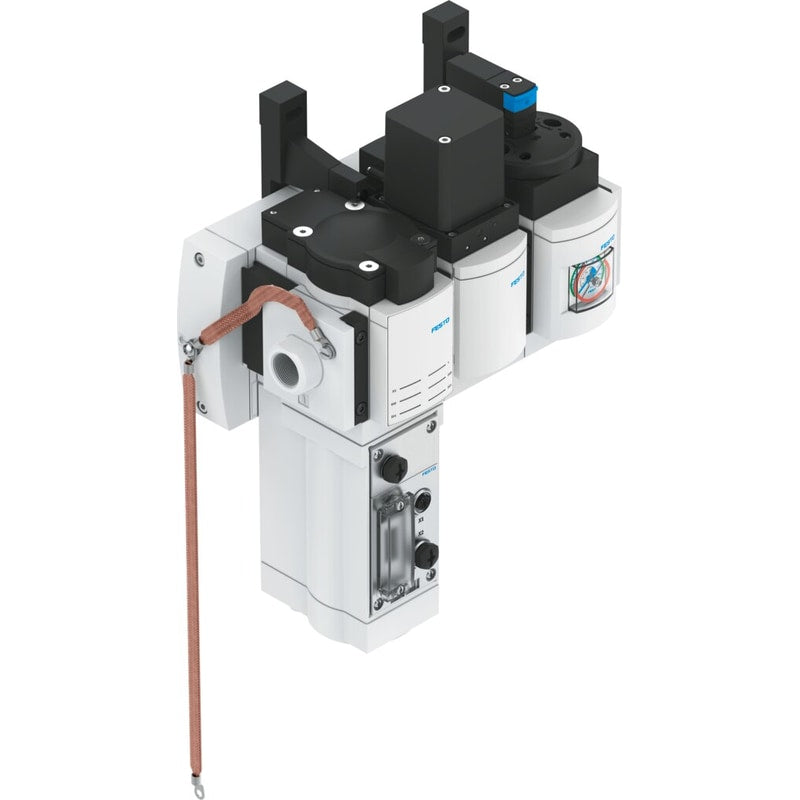

Energy efficiency module
MSE6-C2M-5000-FB36-D-M-RG-BAR-M12L5-AGD
8157913
GTIN 4052568613389
Vendor Festo
Regular price
$3,122.46
Unit price
MSE6-C2M-5000-FB36-D-M-RG-BAR-M12L5-AGD is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
MSE6-C2M-5000-FB36-D-M-RG-BAR-M12L5-AGD
Regular price
$3,122.46
Unit price
MSE6-C2M-5000-FB36-D-M-RG-BAR-M12L5-AGD is backordered and will ship as soon as it is back in stock.
| Size | 6 |
|---|---|
| Series | MSE |
| Mounting position | Horizontal +/- 5° |
| Valve function | 2/2, open, monostable |
| Operating pressure | 0.5MPa |
| Operating pressure | 5bar |
| Standard nominal flow rate | 7000l/min |
| Certification | RCM compliance mark |
| KC characters | KC EMC |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -10°C |
| Temperature of medium | 0°C |
| Degree of protection | IP65 |
| Ambient temperature | 0°C |
| Product weight | 4395g |
| Electrical connection | 5-pin |
| Pneumatic connection 1 | G1/2 |
| Pneumatic connection 2 | G1/2 |
| Seals material | NBR |
| Housing material | Die-cast aluminum |
| Covering material | PA-reinforced |
| Cover material | PA-reinforced |
| Fieldbus interface | 2x socket, M12x1, 4-pin, D-coded |
| Operating voltage range DC electronics/sensors | 18V |
| DC load voltage operating voltage range | 21.6V |
| Reverse polarity protection | for operating voltage connections |
| Displayable unit(s) | kPa |
| Flow measuring range start value | 50l/min |
| Flow measuring range end value | 5000l/min |
| Accuracy of flow rate | ± (3% o.m.v. + 0.3% FS) |
| Pressure measuring range initial value | 0MPa |
| Pressure measuring range initial value | 0bar |
| Pressure measuring range initial value | 0psi |
| Pressure measuring range end value | 1.4MPa |
| Pressure measuring range end value | 14bar |
| Pressure measuring range end value | 203psi |
| Accuracy in ± % FS | 3%FS |
| No. of inputs | 2 |
| Input switching logic | PNP (positive switching) |
| No. of outputs | 2 |
| Switching logic at outputs | PNP (positive switching) |
| Max. power supply per channel | 1 A (12 W lamp load) |
