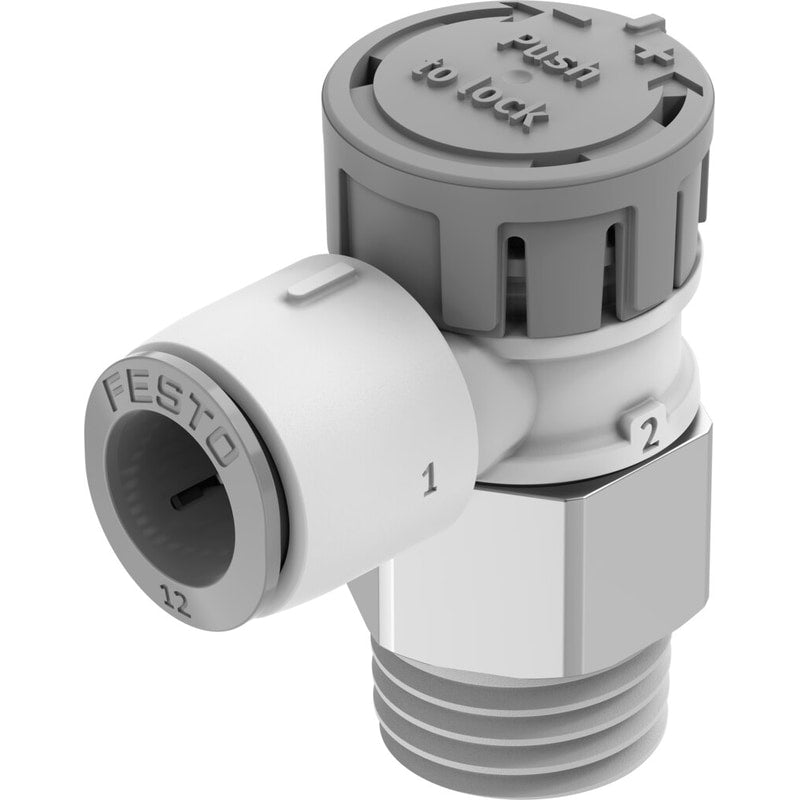

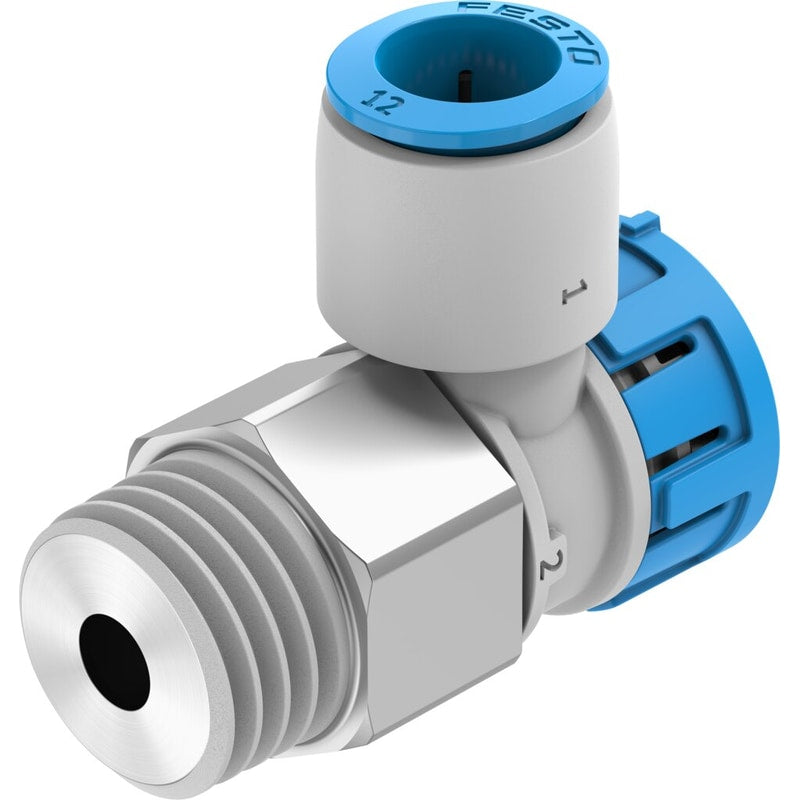

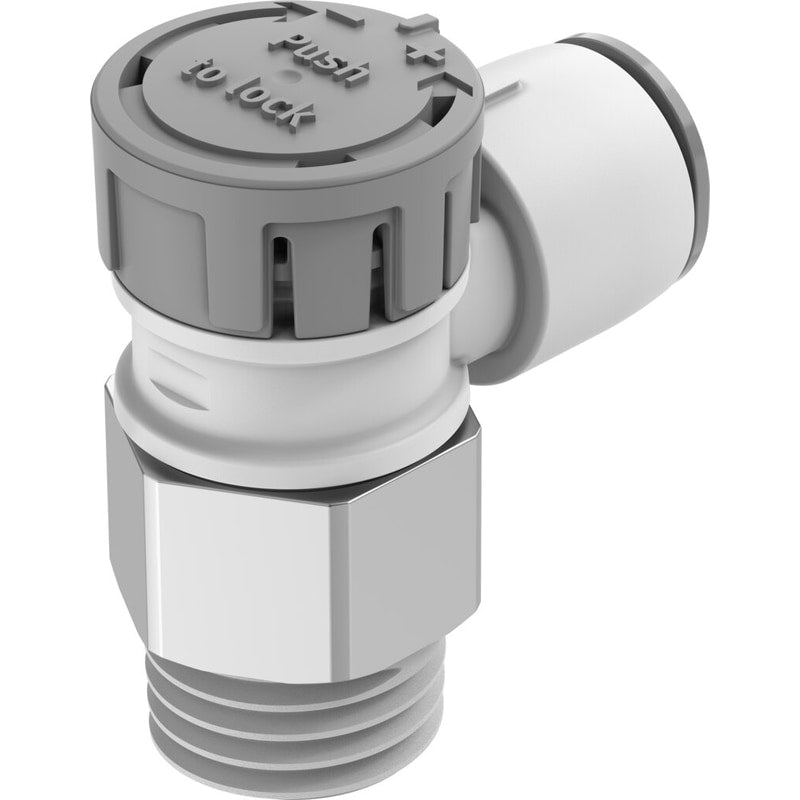

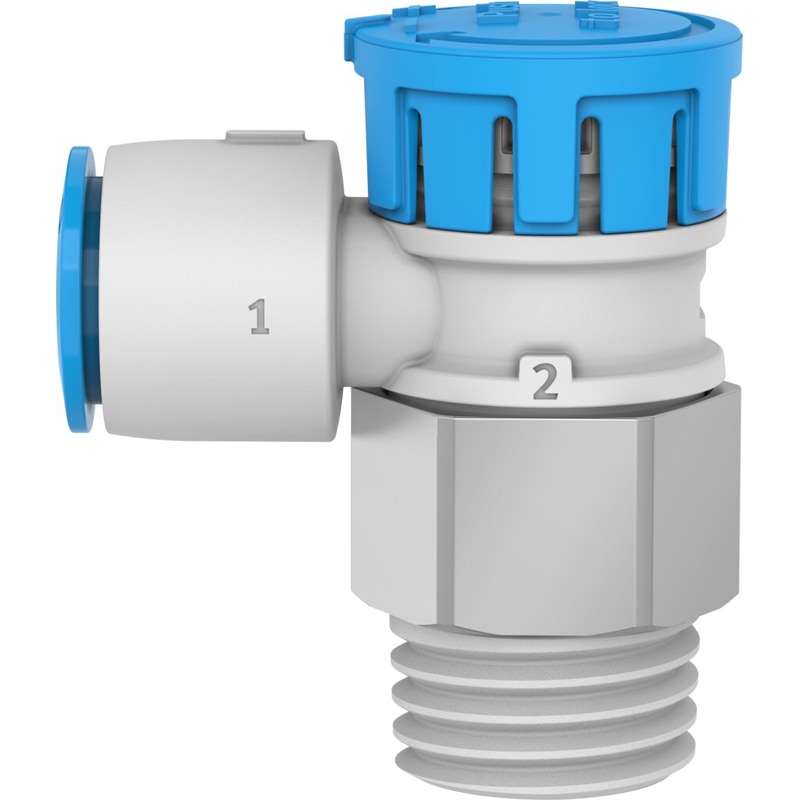

One-way flow control valve
VFOE-LE-T-R12-Q12-F1A
8157631
GTIN 4052568589905
Vendor Festo
- Valve function
- Exhaust air flow control non-return function
- Standard nominal flow rate in flow control direction
- 1200 l/min
- Width across flats
- 24 mm
- Pneumatic connection 1
- QS-12
- Adjusting element
- Rotary knob with detent
Regular price
$49.97
Unit price
VFOE-LE-T-R12-Q12-F1A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VFOE-LE-T-R12-Q12-F1A
Regular price
$49.97
Unit price
VFOE-LE-T-R12-Q12-F1A is backordered and will ship as soon as it is back in stock.
| Valve function | Exhaust air flow control non-return function |
|---|---|
| Pneumatic connection 1 | QS-12 |
| Pneumatic connection 2 | R1/2 |
| Actuation type | Manual |
| Adjusting element | Rotary knob with detent |
| Type of mounting | Screw-in |
| Standard nominal flow rate in flow control direction | 1200l/min |
| Standard nominal flow rate in non-return direction | 600l/min |
| Ambient temperature | -10°C |
| Housing material | PBT |
| Mounting position | Any |
| Symbol | 00991452 |
| Width across flats | 24mm |
| Rotatability | 360 deg/continuous swiveling not permissible |
| Variants | Metals with copper, zinc or nickel as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. |
| Operating pressure for entire temperature range | 0.02MPa |
| Operating pressure for entire temperature range | 0.2bar |
| Operating pressure for entire temperature range | 2.9psi |
| Standard flow rate in flow control direction 6 -> 0 bar | 1900l/min |
| Standard flow rate in non-return direction at 6 -> 0 bar | 1400l/min |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for the production of Li-ion batteries | Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils |
| Cleanroom class | Class 4 according to ISO 14644-1 |
| Temperature of medium | -10°C |
| Product weight | 49.5g |
| Note on materials | RoHS-compliant |
| Cover material | PBT |
| Material of dynamic seals | HNBR |
| Threaded bolt material | Steel, chemically nickel-plated |
| Releasing ring material | PBT |
| Static seal material | NBR |
