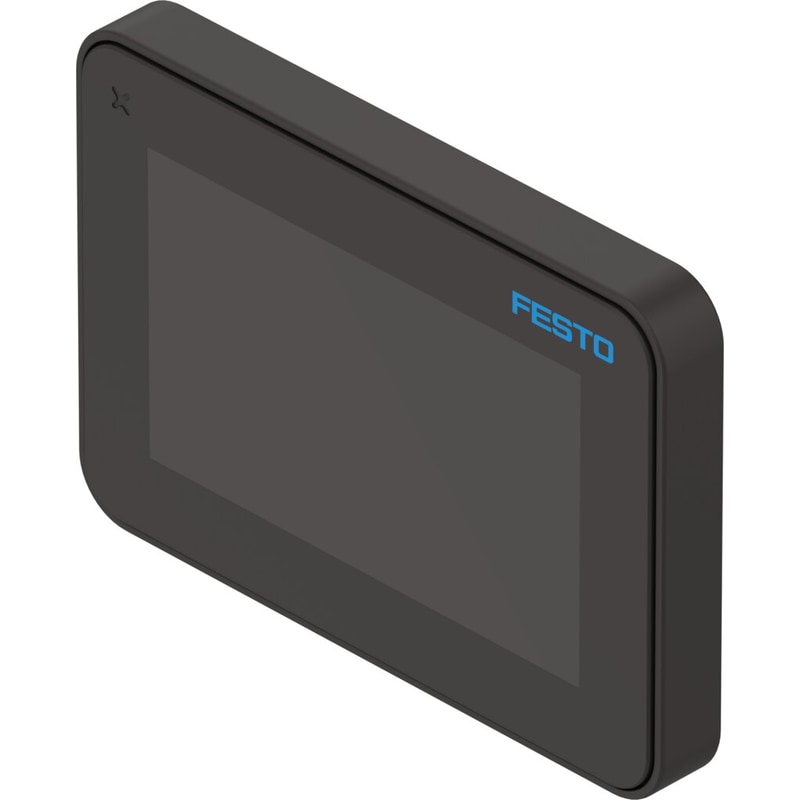

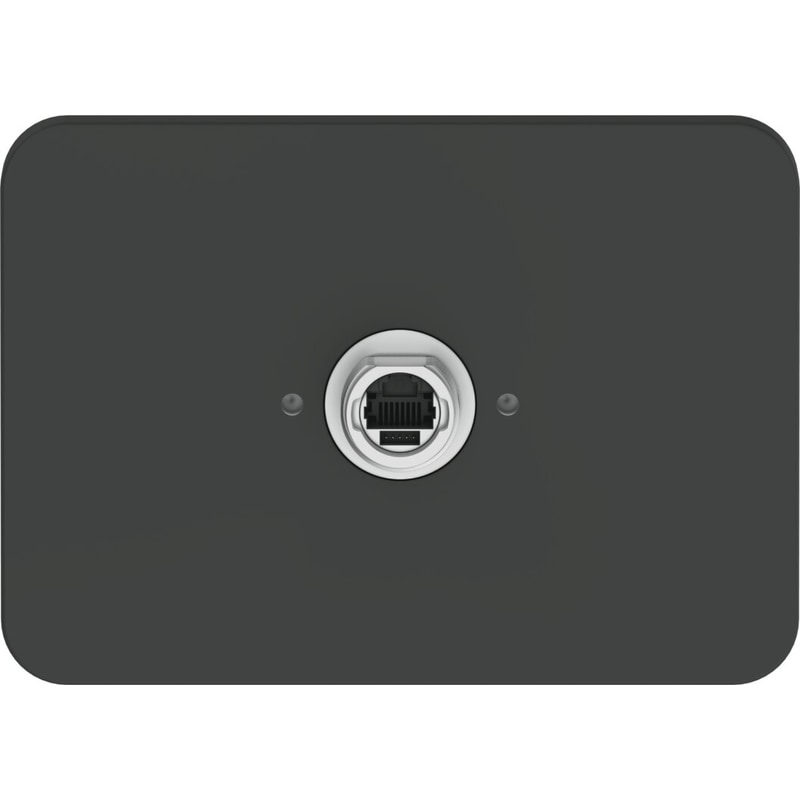

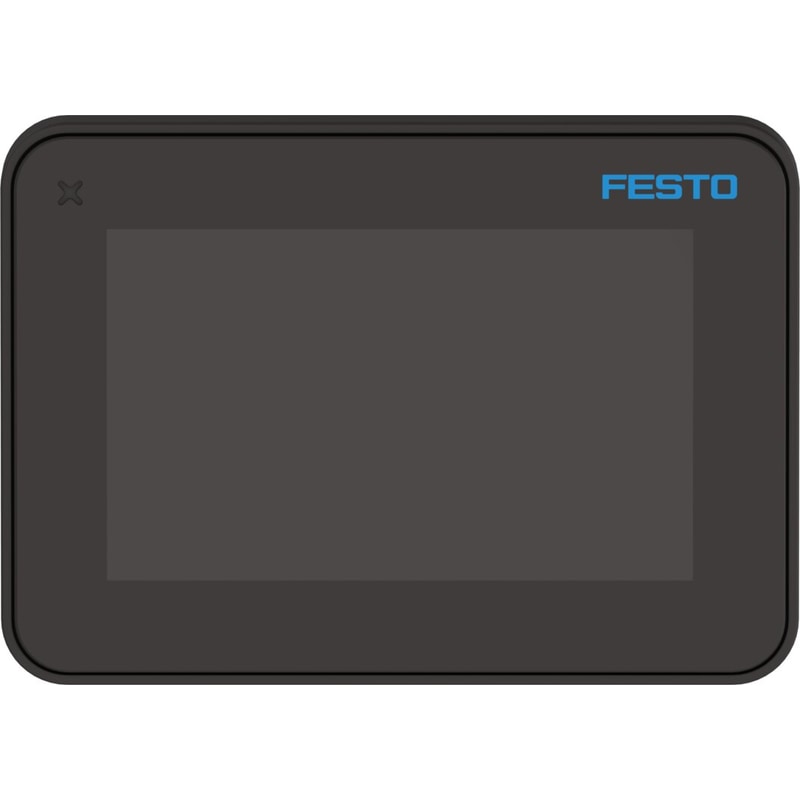

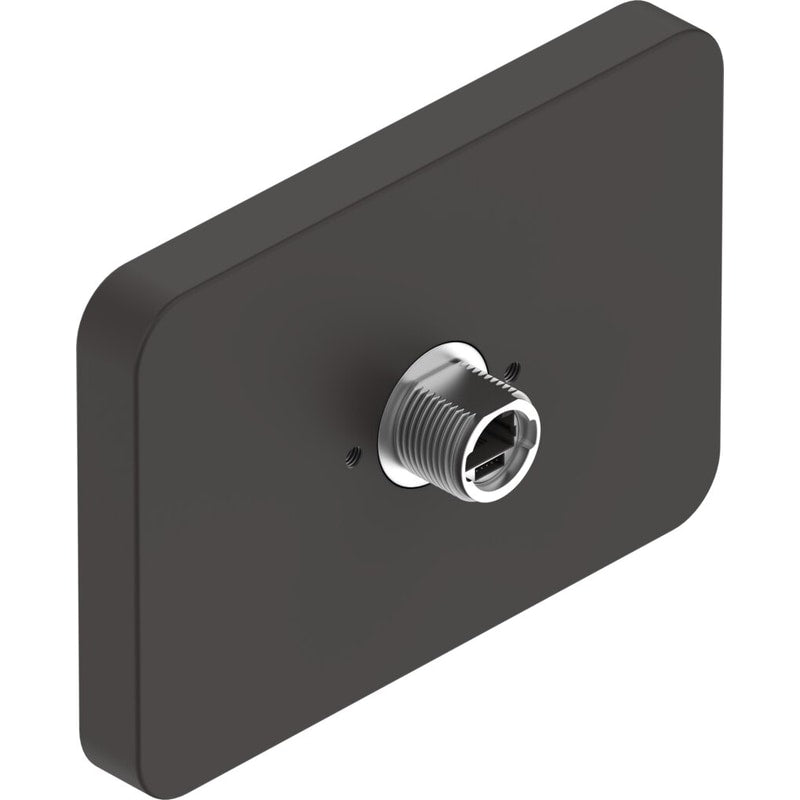

Operator unit
CDPX-X-E2-W-5-EX2
8155219
GTIN 4052568587222
Vendor Festo
Regular price
$2,433.86
Unit price
CDPX-X-E2-W-5-EX2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CDPX-X-E2-W-5-EX2
Regular price
$2,433.86
Unit price
CDPX-X-E2-W-5-EX2 is backordered and will ship as soon as it is back in stock.
| Width | 148 mm |
|---|---|
| Installation depth | 17mm |
| Height | 105mm |
| Length | 34mm |
| Max. front panel thickness | 17mm |
| Real-time clock | Yes |
| Supported PLC protocols | CODESYS 3.X |
| Real-time clock deviation | <100 ppm at 25°C |
| Number of colors | 16 M |
| Display | With backlighting |
| Display type | Color TFT |
| Display properties | Touchscreen |
| Display size | 5" |
| Backup battery | Rechargeable lithium battery |
| Display resolution | 800x480 pixels |
| Electrical power consumption | 6W |
| Certification | c UL us - Listed (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -30°C |
| Relative air humidity | 5 - 85 % |
| Degree of protection | IP67 |
| Note on degree of protection | In mounted state |
| Ambient temperature | -20°C |
| Note on ambient temperature | for vertical mounting |
| Product weight | 500g |
| USB interface | yes |
| Ethernet interface | RJ45 10/100 MBd |
| Type of mounting | VESA interface |
| Note on materials | RoHS-compliant |
| Programming software | Designer Studio |
| CPU data | 1 GB RAM |
