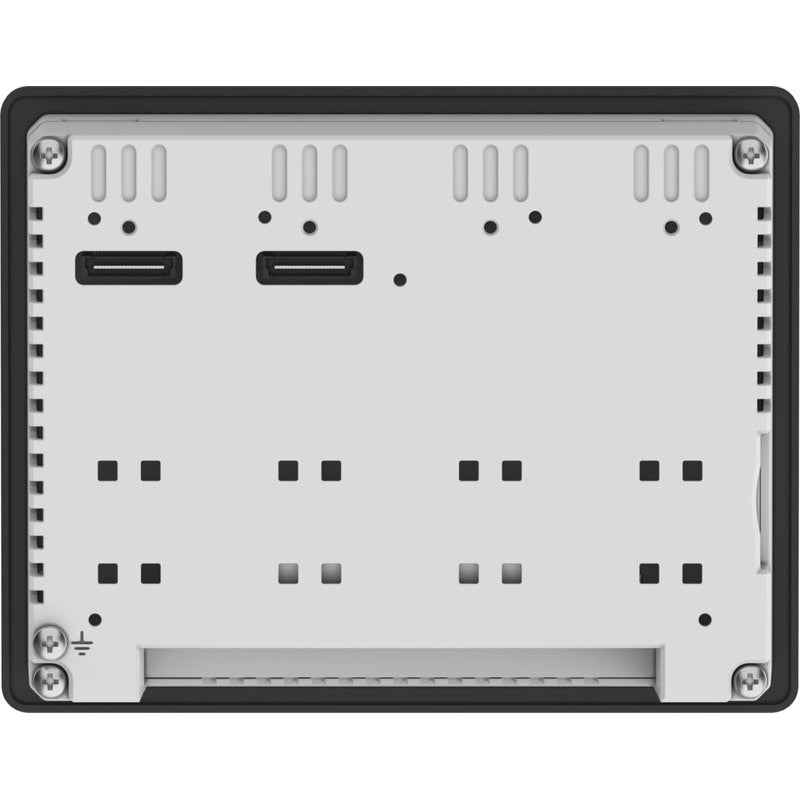

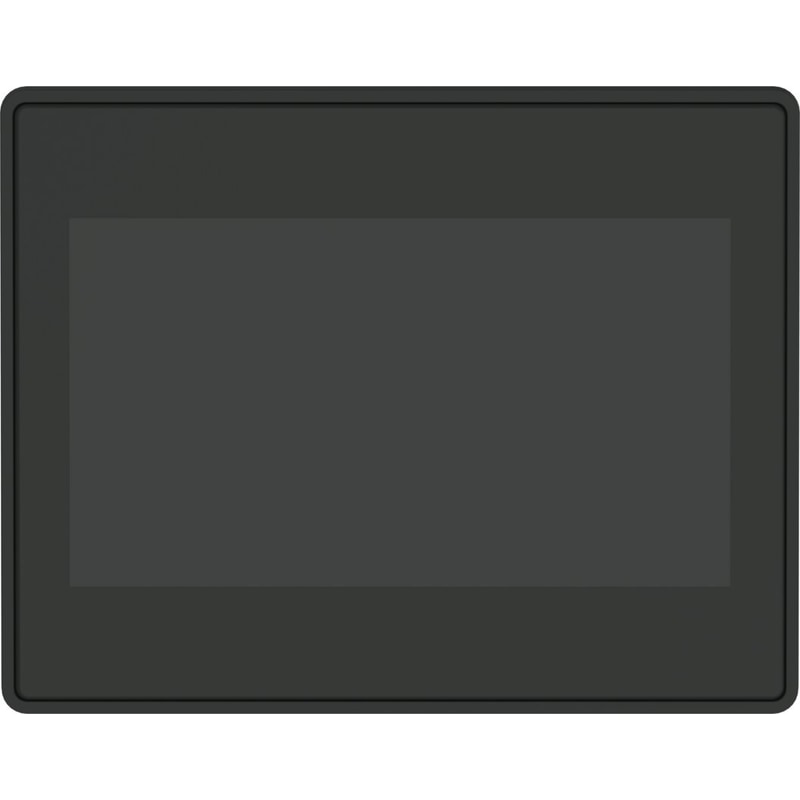

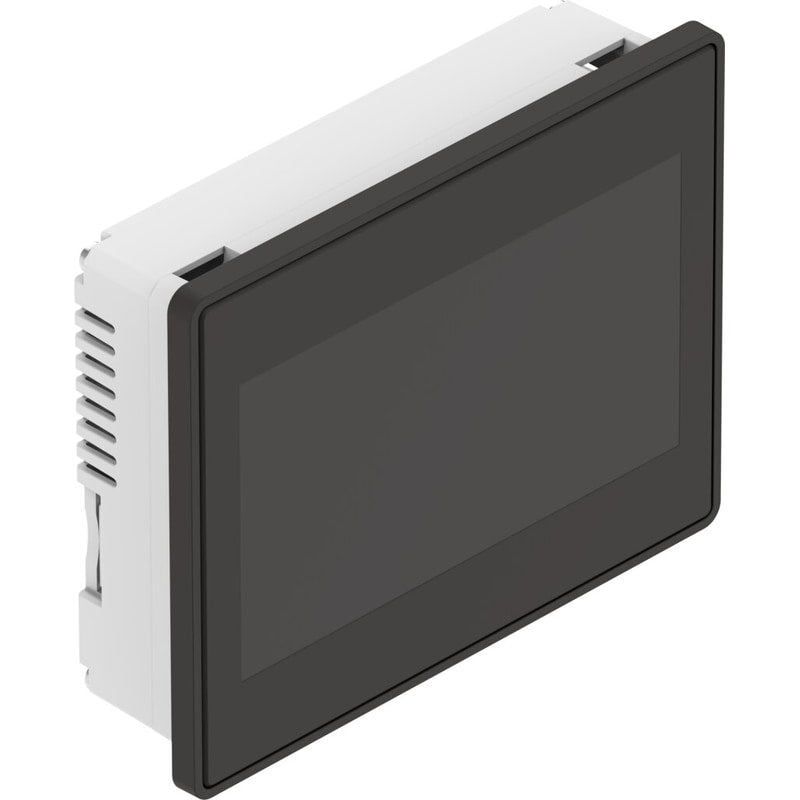

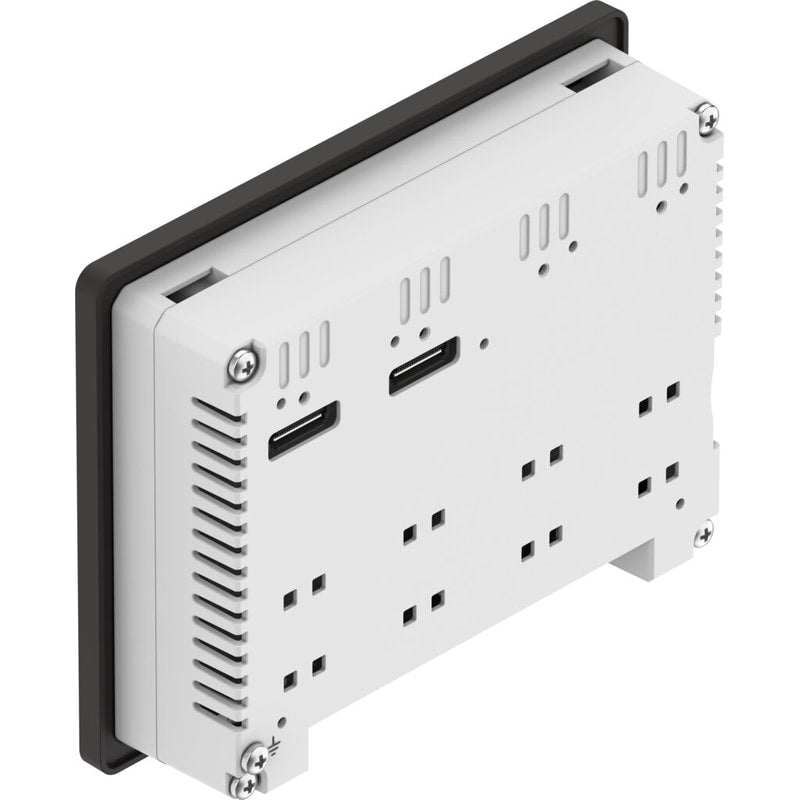

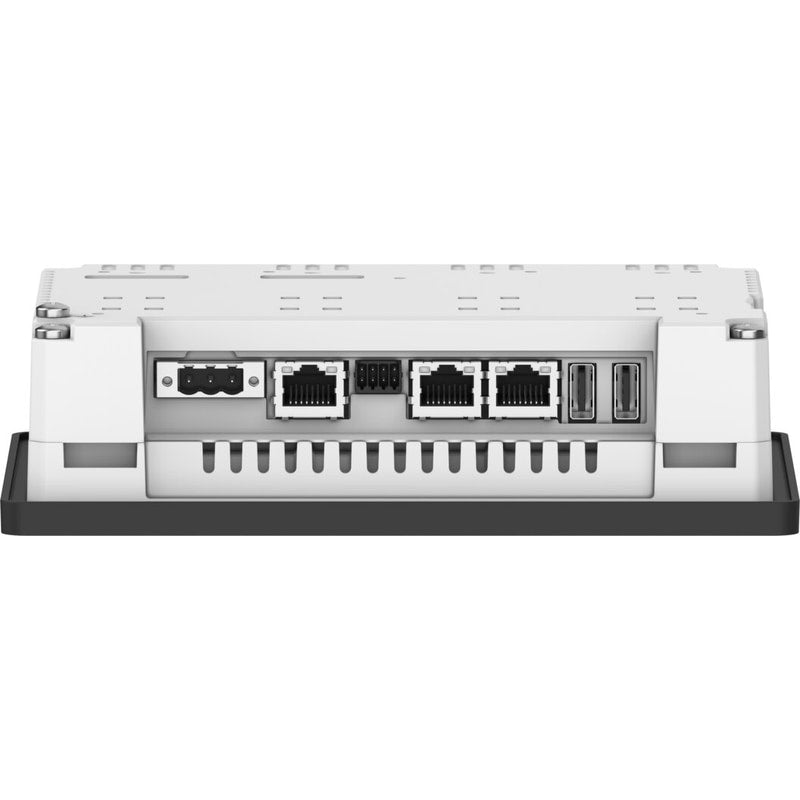

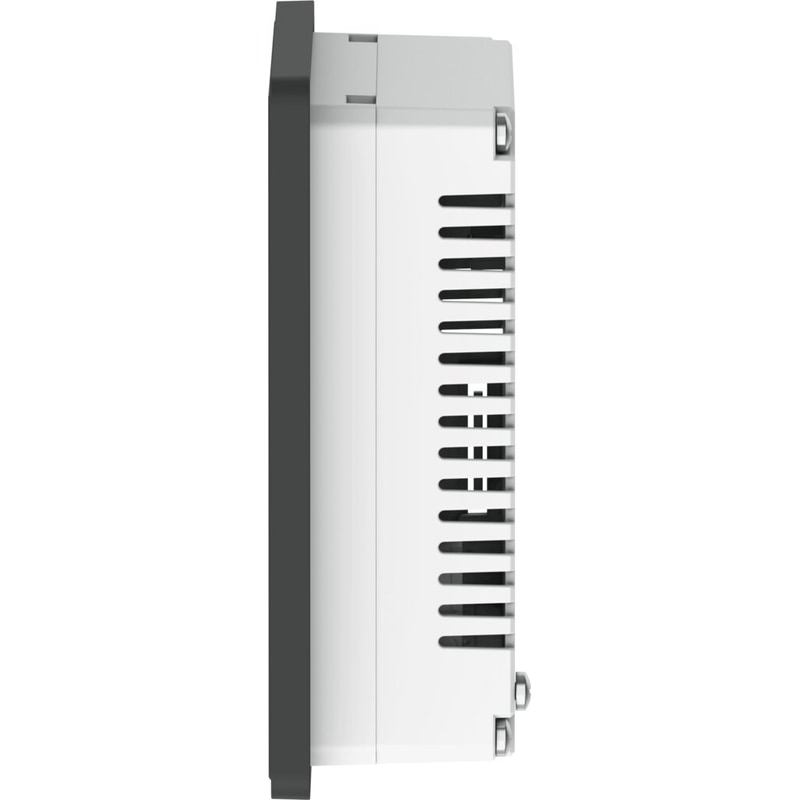

Operator unit
CDPX-X-E1-W-7
8155216
GTIN 4052568586997
Vendor Festo
Regular price
$3,147.79
Unit price
CDPX-X-E1-W-7 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CDPX-X-E1-W-7
Regular price
$3,147.79
Unit price
CDPX-X-E1-W-7 is backordered and will ship as soon as it is back in stock.
| Width | 187 mm |
|---|---|
| Installation depth | 47mm |
| Height | 147mm |
| Length | 55mm |
| Max. front panel thickness | 8mm |
| Real-time clock | Yes |
| Supported PLC protocols | CODESYS 3.X |
| Real-time clock deviation | <100 ppm at 25°C |
| Number of colors | 16 M |
| Display | With backlighting |
| Display type | Color TFT |
| Display properties | Touchscreen |
| Display size | 7" |
| Backup battery | Rechargeable lithium battery |
| DC operating voltage range | 10V |
| Display resolution | 800x480 pixels |
| Nominal operating voltage DC | 24V |
| Current consumption at nominal operating voltage | 0.7 A |
| Certification | c UL us - Listed (OL) |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20°C |
| Relative air humidity | 5 - 85 % |
| Degree of protection | IP20 |
| Note on degree of protection | IP 20 rear |
| Ambient temperature | -20°C |
| Note on ambient temperature | for vertical mounting |
| Product weight | 1300g |
| PLC interface | RS485 |
| USB interface | yes |
| Additional functions | SD card slot |
| Ethernet interface | RJ45 10/100 MBd |
| Type of mounting | Front panel mounting |
| Note on materials | RoHS-compliant |
| Programming software | Designer Studio |
| CPU data | 1 GB RAM |
