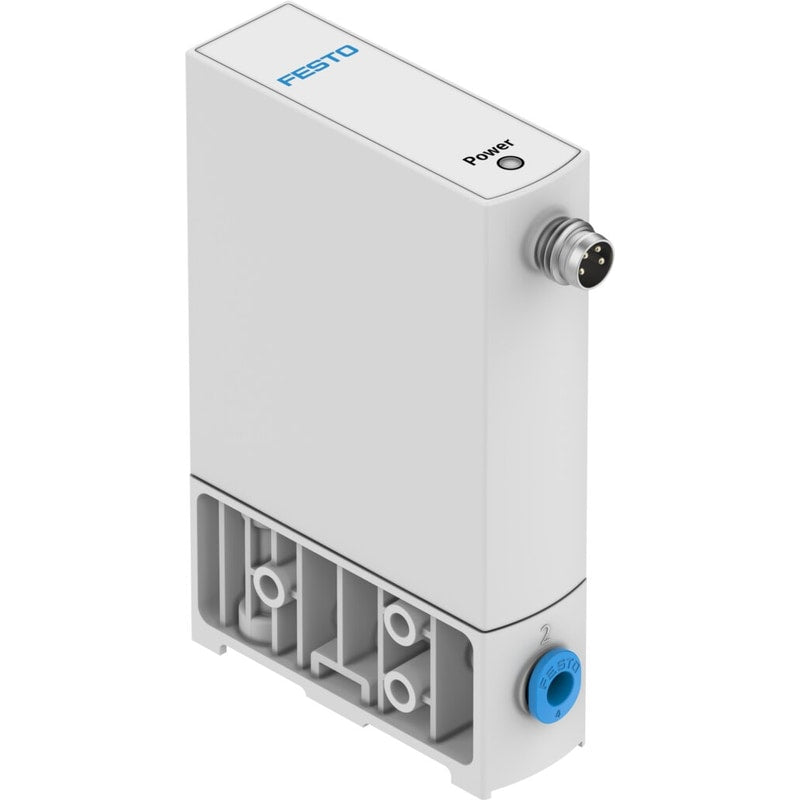

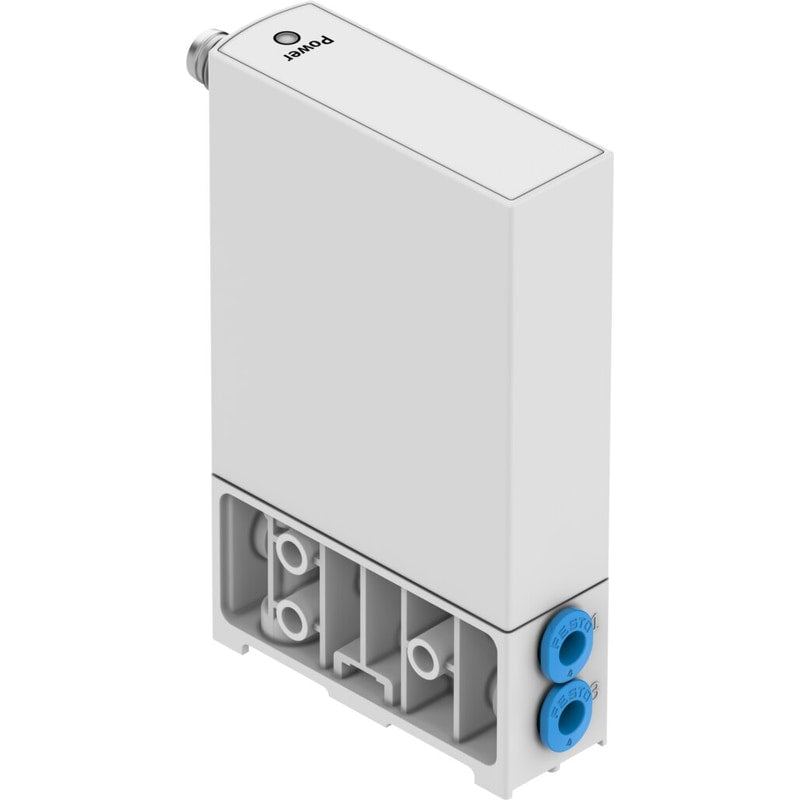

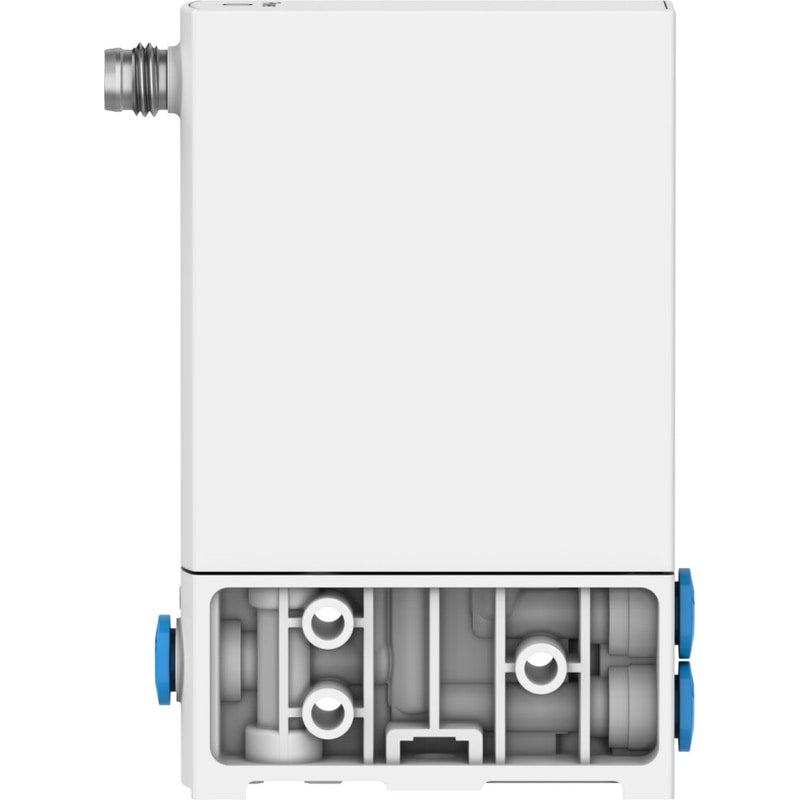

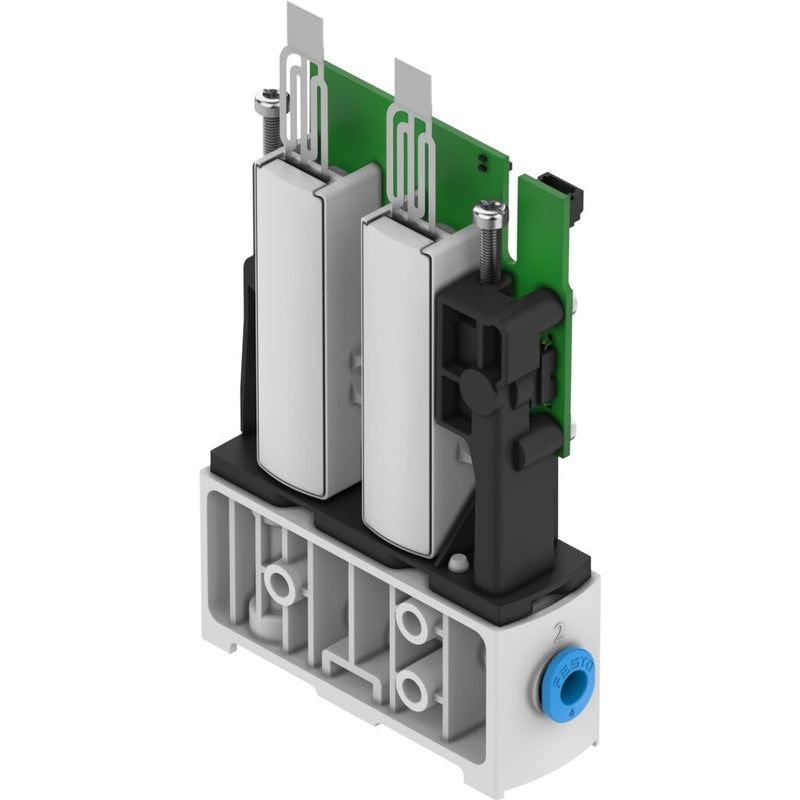

Proportional pressure control valve
VEAB-L-26-D25-Q4-V2-1R1
8153685
GTIN 4052568580001
Vendor Festo
- Valve function
- 3-way proportional pressure control valve
- Pneumatic connection 1
- QS-4
- Electrical connection
- M8x1 - Plug - as per EN 60947-5-2
- Normal nominal flow rate (normalized to DIN 1343)
- 20 l/min
- Standard nominal flow rate 2-3
- 20 l/min
Regular price
$692.88
Unit price
VEAB-L-26-D25-Q4-V2-1R1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VEAB-L-26-D25-Q4-V2-1R1
Regular price
$692.88
Unit price
VEAB-L-26-D25-Q4-V2-1R1 is backordered and will ship as soon as it is back in stock.
| Valve function | 3-way proportional pressure control valve |
|---|---|
| Type of control | Direct |
| Reset method | Mechanical spring |
| Actuation type | Electrical |
| Mounting position | Any |
| Sealing principle | Soft |
| Symbol | 00995607 |
| Ambient temperature | 0 °C ... 50 °C |
| Temperature of medium | 5 °C ... 50 °C |
| Storage temperature | -20 °C ... 70 °C |
| Dimensions W x L x H | 18 mm x 60.5 mm x 85 mm |
| Pneumatic connection 1 | QS-4 |
| Pneumatic connection 2 | QS-4 |
| Pneumatic connection 3 | QS-4 |
| Seals material | NBR |
| Type of mounting | Optionally: With through-hole With accessories |
| Inlet pressure 1 MPa | 0 MPa ... 0.55 MPa |
| Inlet pressure 1 | 0 bar ... 5.5 bar |
| Inlet pressure 1 psi | 0 psi ... 79.75 psi |
| Output pressure 2 | 0.0025 MPa ... 0.5 MPa |
| Outlet pressure 2 | 0.025 bar ... 5 bar |
| Output pressure 2 | 0.3625 psi ... 72.5 psi |
| Standard nominal flow rate | ≥ 20 l/min |
| Standard nominal flow rate 2-3 | ≥ 20 l/min |
| Linearity error FS | 0.5 % |
| Repetition accuracy in ± %FS | 0.4 %FS |
| Hysteresis in ± %FS | 0.25 %FS |
| Temperature coefficient | 0.05 %/K |
| Absolute accuracy in ± %FS at room temperature | 0.75 %FS |
| Product weight | 70 g |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| Degree of protection | IP65 |
| Certification | RCM compliance mark |
| KC characters | KC EMC |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Note on materials | RoHS-compliant |
| LABS conformity | VDMA24364 zone III |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| DC operating voltage range | 19 V ... 29 V |
| Nominal operating voltage DC | 24 V |
| Residual ripple | 10 % |
| Reference value | 0 - 5 V |
| Analog output signal range | 1 - 5 V |
| Precision analog output in ± %FS | 2 %FS |
| Max. electrical power consumption | 1 W |
| Reverse polarity protection | for all electrical connections |
| Short-circuit protection | For all electrical connections |
| Safety instructions | VEAA/VEAB safety position: if the electrical power supply is lost, the outlet pressure is maintained in uncontrolled form, it may increase or fall – pneumatic valve blocked. |
| Display type | LED |
| Electrical connection | 4-pin M8x1 Plug as per EN 60947-5-2 |
| Housing material | PA-reinforced |
