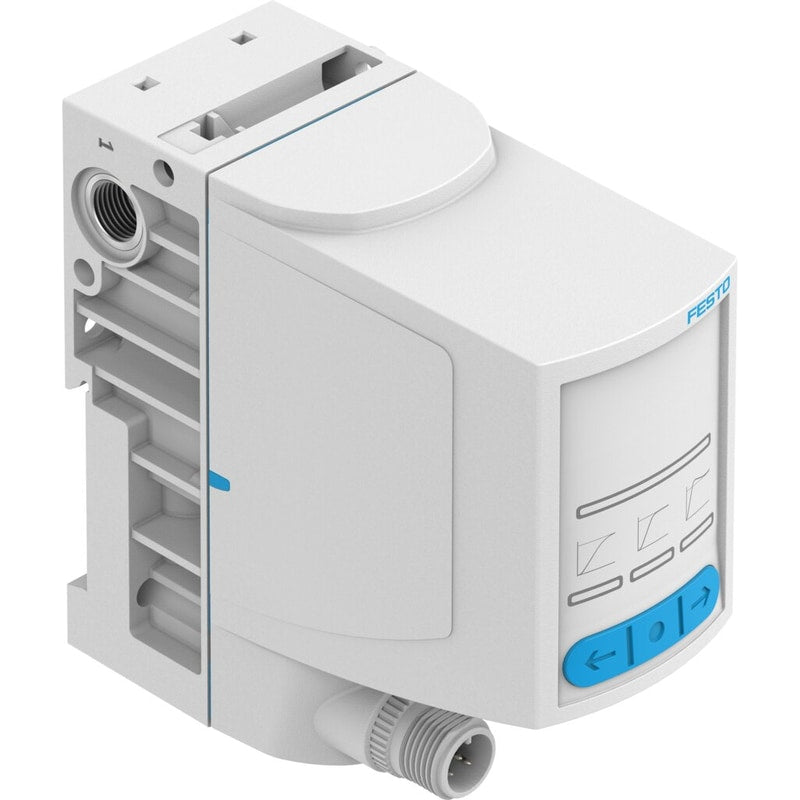

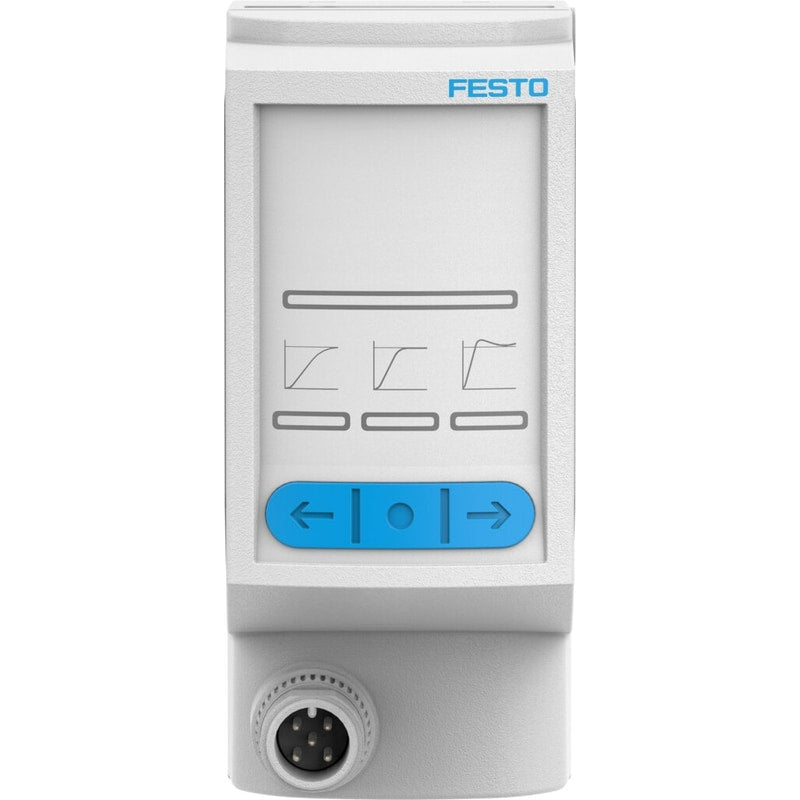

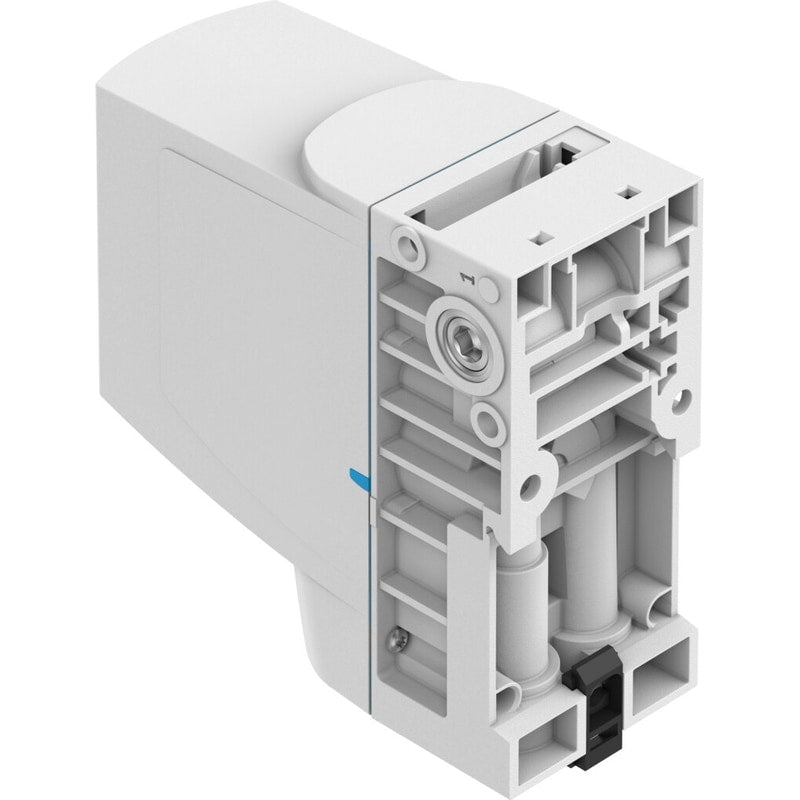

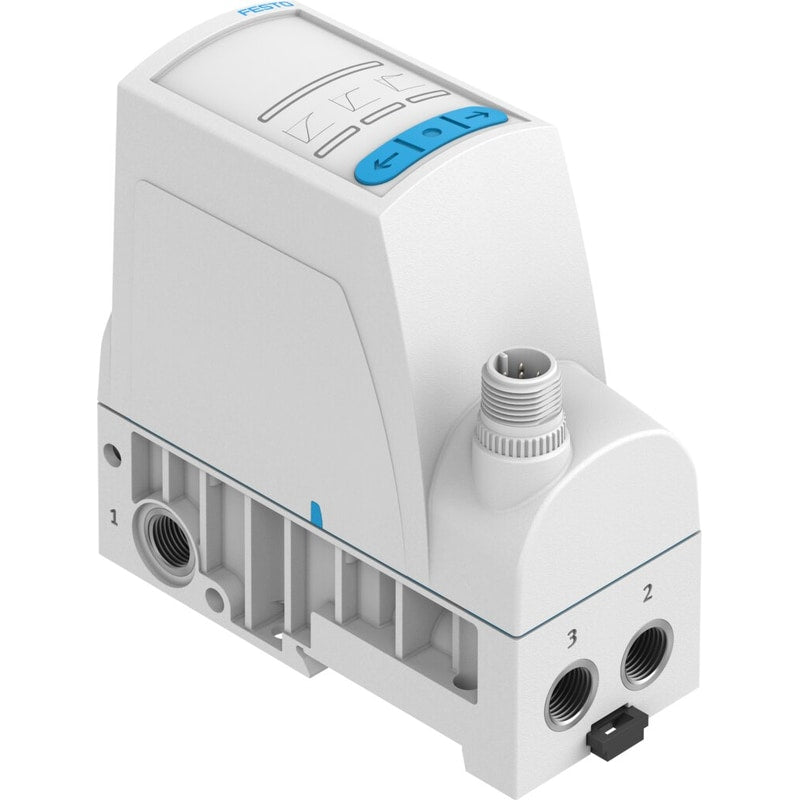

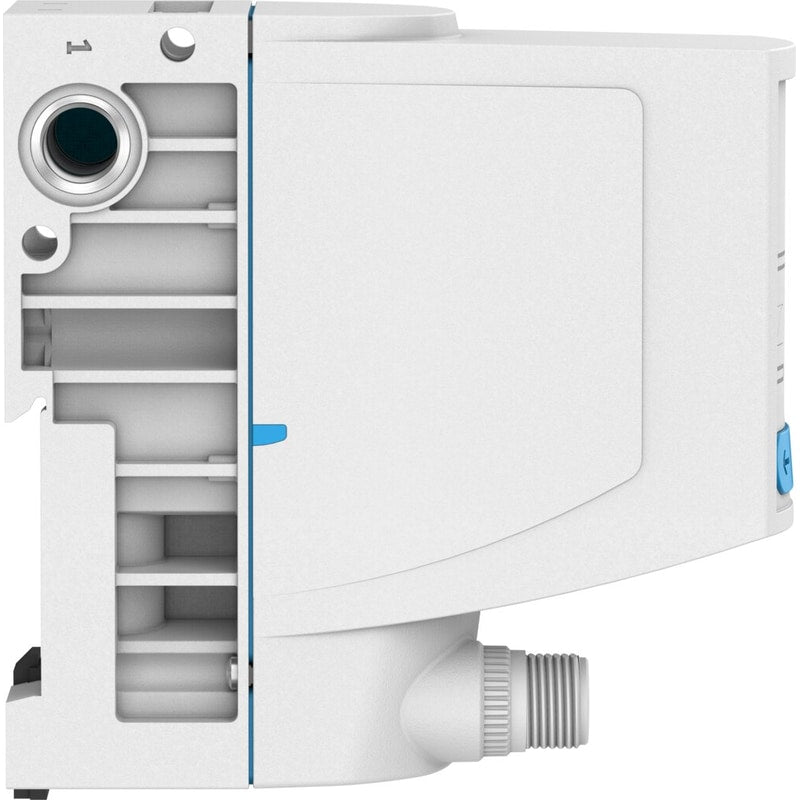

Proportional pressure control valve
VPPI-5L-3-G18-0L10H-V1-S1BT
8153297
GTIN 4052568594985
Vendor Festo
- Valve function
- 3-way proportional pressure control valve
- Pneumatic connection 1
- G1/8
- Pressure regulation range
- 0 bar - 10 bar
- Operating pressure
- 10 bar - 12 bar
- DC operating voltage range
- 21.6 V - 27.6 V
Regular price
$1,146.85
Unit price
VPPI-5L-3-G18-0L10H-V1-S1BT is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VPPI-5L-3-G18-0L10H-V1-S1BT
Regular price
$1,146.85
Unit price
VPPI-5L-3-G18-0L10H-V1-S1BT is backordered and will ship as soon as it is back in stock.
| Nominal width pressurization | 5mm |
|---|---|
| Exhaust nominal width | 5mm |
| Actuation type | Electrical |
| Sealing principle | Soft |
| Total leakage | 5l/h |
| Flow direction | Non-reversible |
| Mounting position | Any |
| Structural design | Poppet valve with return spring |
| Short-circuit protection | For all electrical connections |
| Max. cable length | 30 m |
| Setpoint input | 0 - 10 V |
| Input resistance | 100kOhm |
| Safety instructions | Safety position VPPI, normally closed |
| Symbol | 00997299 |
| Reverse polarity protection | for all electrical connections |
| Reset method | Mechanical spring |
| Dimensions W x L x H | 42.2 mm x 95.3 mm x 94.3 mm |
| Type of control | Direct |
| Valve function | 3-way proportional pressure control valve |
| Display type | LED |
| Operating pressure | 10bar |
| Pressure regulation range MPa | 0MPa |
| Pressure regulation range | 0bar |
| Inlet pressure 1 | 0bar |
| Inlet pressure 1 MPa | 0MPa |
| Burst pressure | 40bar |
| Standard nominal flow rate | 1400l/min |
| Standard nominal flow rate 2-3 | 750l/min |
| DC operating voltage range | 21.6V |
| Nominal current | 0.15A |
| Max. current consumption | 525mA |
| Max. electrical power consumption | 14.5W |
| Nominal operating voltage DC | 24V |
| Analog output signal range | 0 - 10 V |
| Min. load resistance of voltage output | 2kOhm |
| Precision analog output in ± %FS | 1%FS |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| For use in the food industry | See supplementary material information |
| Temperature of medium | 0°C |
| Degree of protection | IP65 |
| Ambient temperature | 0°C |
| Storage temperature | -20°C |
| Climatic category | 3K3 as per EN 60721 |
| Nominal altitude of use above sea level | < 3000 m NHN |
| Application note | The product is suitable for industrial purposes only. Radio interference suppression measures may be required in residential areas. |
| Sound power level | 62.5dB(A) |
| Sound power level at a distance of 1 m | 51.9dB(A) |
| Product weight | 365g |
| Linearity | 0.9%FS |
| Hysteresis | 0.4%FS |
| Reproducibility | 0.4%FS |
| Overall accuracy | 1.1 %FS |
| Temperature coefficient | 0.02%/K |
| Electrical connection 1, function | Actual value output |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 5 |
| Electrical connection for input 1, connection pattern | 00994083 |
| Electrical connection 1, tightening torque | 1.5Nm |
| Type of mounting | With through-hole for M4 screw |
| Additional functions | Bluetooth (version 4.2) |
| Pneumatic connection 1 | G1/8 |
| Pneumatic connection 2 | G1/8 |
| Pneumatic connection 3 | G1/8 |
| Max. tightening torque of pneumatic fitting | 8.5Nm |
| Note on materials | RoHS-compliant |
| Housing material | PA-reinforced |
| Seals material | HNBR |
