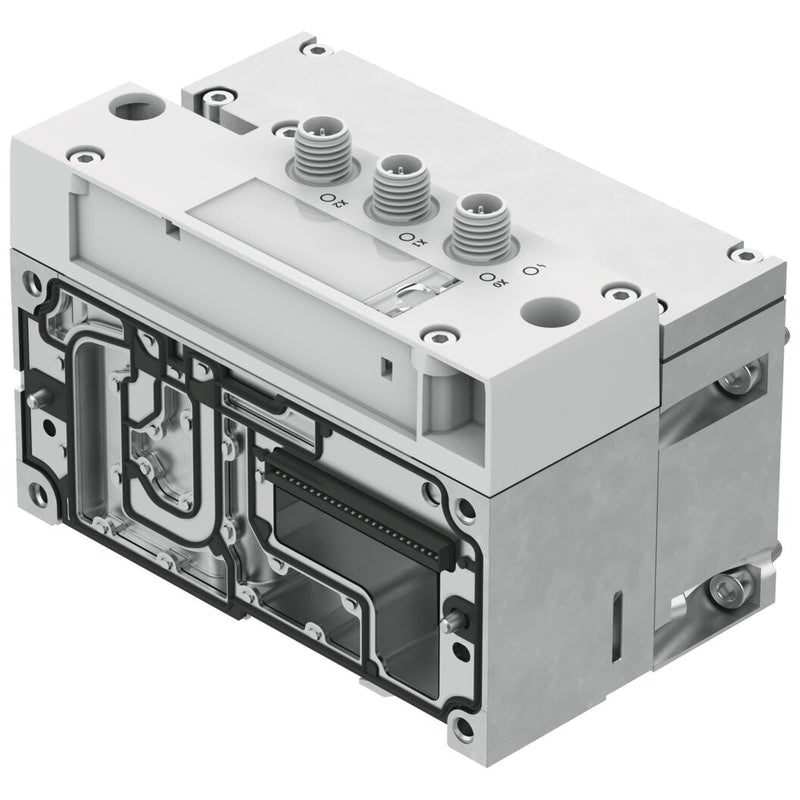

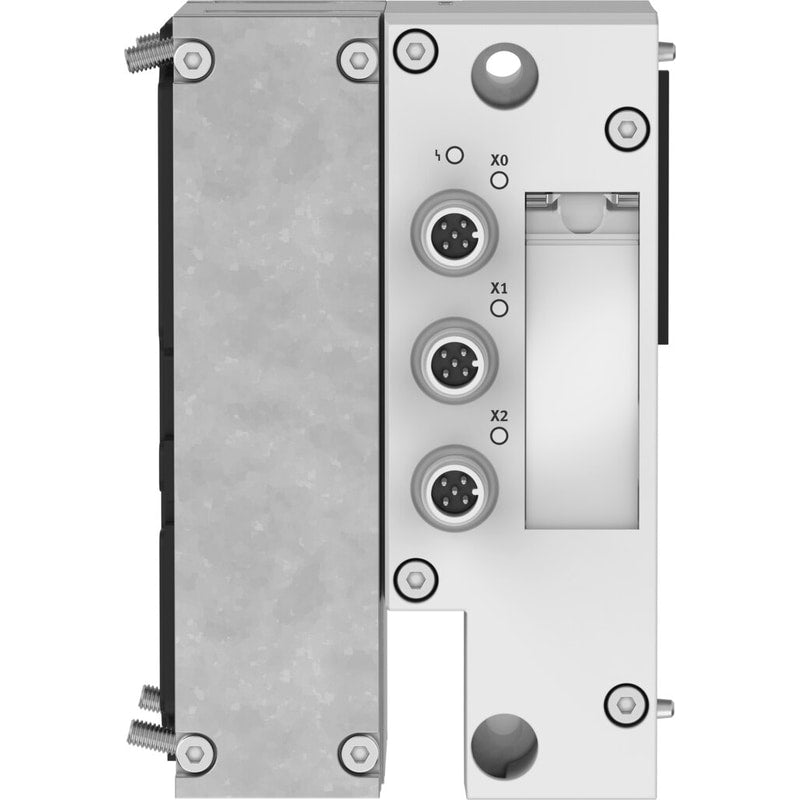

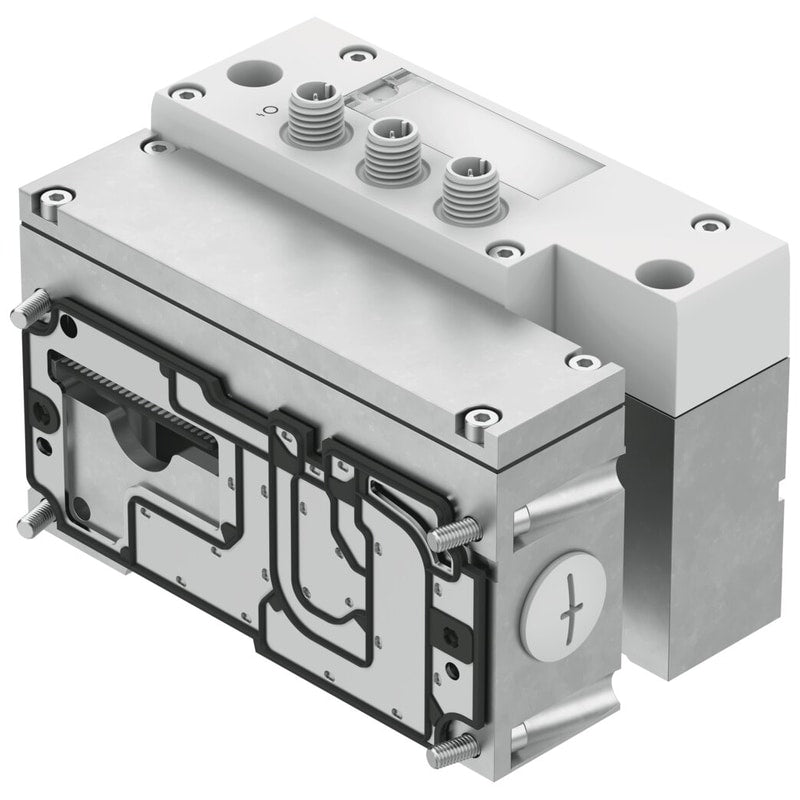

Pneumatic interface
VABA-S6-1-X2-3V-CB-AL
8152438
GTIN 4052568580735
Vendor Festo
Regular price
$1,042.21
Unit price
VABA-S6-1-X2-3V-CB-AL is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VABA-S6-1-X2-3V-CB-AL
Regular price
$1,042.21
Unit price
VABA-S6-1-X2-3V-CB-AL is backordered and will ship as soon as it is back in stock.
| Valve manifold interface | Type 44, VTSA |
|---|---|
| Diagnostics | Wire break per valve coil Short circuit of pneumatic valves Undervoltage of pneumatic valves |
| Max. no. of valve positions | 12 for bistable pneumatic valves 24 for monostable pneumatic valves |
| LED indicators | 1 group diagnostics 3 load supply Channel status on pneumatic valves |
| Parameterization | Fail-safe modes per channel Forcing per channel Idle mode per channel Module monitoring |
| Fuse protection (short circuit) | Internal electronic fuse per pneumatic valve output |
| DC operating voltage range | 21.6 V ... 26.4 V |
| Intrinsic current consumption at nominal operating voltage | typ. 11 mA (electronics operating voltage supply) Typ. 45 mA (pneumatic valve load power supply) |
| Max. power supply per channel | 0.2 A |
| Max. residual current per module | 6 A |
| Nominal operating voltage DC | 24 V |
| Electrical isolation between channel and internal bus | yes |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS conformity | VDMA24364-B1/B2-L |
| Degree of protection | IP65 NEMA 4 |
| Ambient temperature | -5 °C ... 50 °C |
| Product weight | 1388 g |
| Electrical actuation | Fieldbus |
| Electrical connection | 3x M12x1 A-coded 5-pin Plug Via CPX |
| Note on materials | RoHS-compliant |
| Cover material | PA |
| Housing material | Die-cast aluminum |
