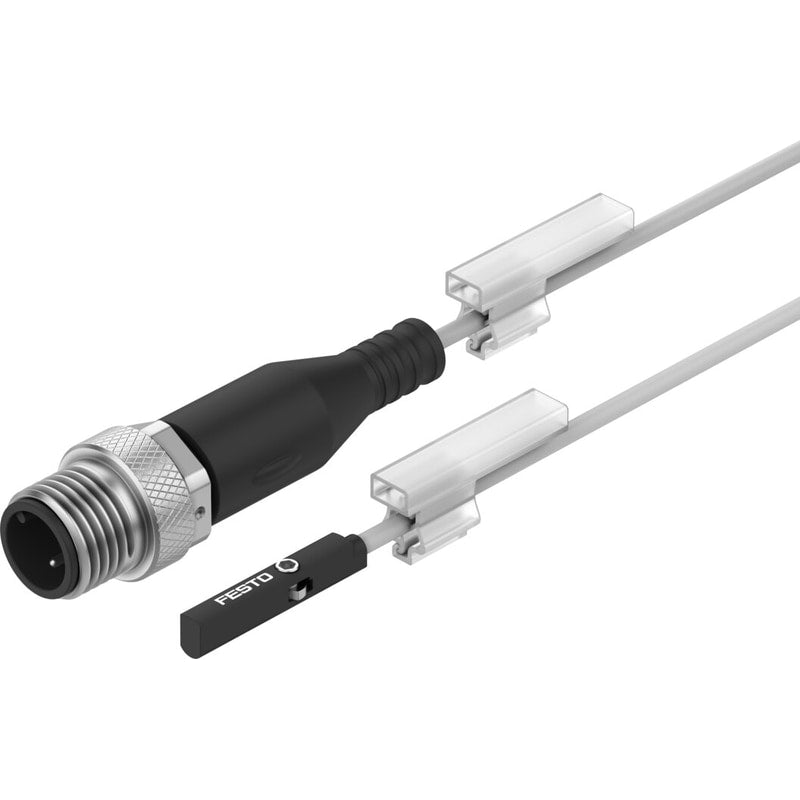

Proximity switch
SMT-10M-PS-24V-E-0,3-L-M12
8152201
GTIN 4052568576134
Vendor Festo
Regular price
$67.88
Unit price
SMT-10M-PS-24V-E-0,3-L-M12 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
SMT-10M-PS-24V-E-0,3-L-M12
Regular price
$67.88
Unit price
SMT-10M-PS-24V-E-0,3-L-M12 is backordered and will ship as soon as it is back in stock.
| Design | for round slot |
|---|---|
| Conforms to standard | EN 60947-5-2 |
| Symbol | 00991153 |
| Certification | RCM compliance mark |
| CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| KC characters | KCs explosion protection |
| Special features | Oil-resistant |
| Note on materials | Free of copper and PTFE RoHS-compliant Halogen-free |
| Measured variable | Position |
| Measuring principle | Magneto-resistive |
| Ambient temperature | -40 °C ... 70 °C |
| Repetition accuracy | 0.2 mm |
| Switching output | PNP |
| Switching element function | N/O contact |
| On time | ≤ 1.3 ms |
| Switch-off time | ≤ 1.4 ms |
| Max. switching frequency | 150 Hz |
| Max. output current | 100 mA |
| Max. output current in mounting kits | 50 mA |
| Max. switching capacity DC | 2.8 W |
| Max. switching capacity DC in mounting kits | 1.5 W |
| Voltage drop | ≤ 1.7 V |
| Short-circuit protection | yes |
| Overload protection | Available |
| Rated operating voltage DC | 24 V |
| DC operating voltage range | 5 V ... 30 V |
| Reverse polarity protection | for all electrical connections |
| Electrical connection 1, connection type | Cable with plug |
| Electrical connection 1, connection technology | M12x1 A-coded as per EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 3 |
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection for input 1, connection pattern | 00995573 |
| Connection outlet orientation | Longitudinal |
| Connector cable test conditions | Flexural strength: as per Festo standard Test conditions on request Cable chain: 5 million cycles, bending radius 28 mm Torsional resistance: > 300 000 cycles, ±270°/0.1 m |
| Cable length | 0.3 m |
| Cable characteristic | Suitability for energy chains/robot applications |
| Material of cable sheath | TPE-U(PUR) |
| Type of mounting | Screwed tightly Can be inserted in slot from above |
| Max. tightening torque | 0.4 Nm |
| Mounting position | Any |
| Product weight | 14 g |
| Housing material | PA-reinforced High-alloy stainless steel |
| Switching status indication | LED yellow |
| Ambient temperature with flexible cable installation | -20 °C ... 70 °C |
| Degree of protection | IP65 IP68 |
