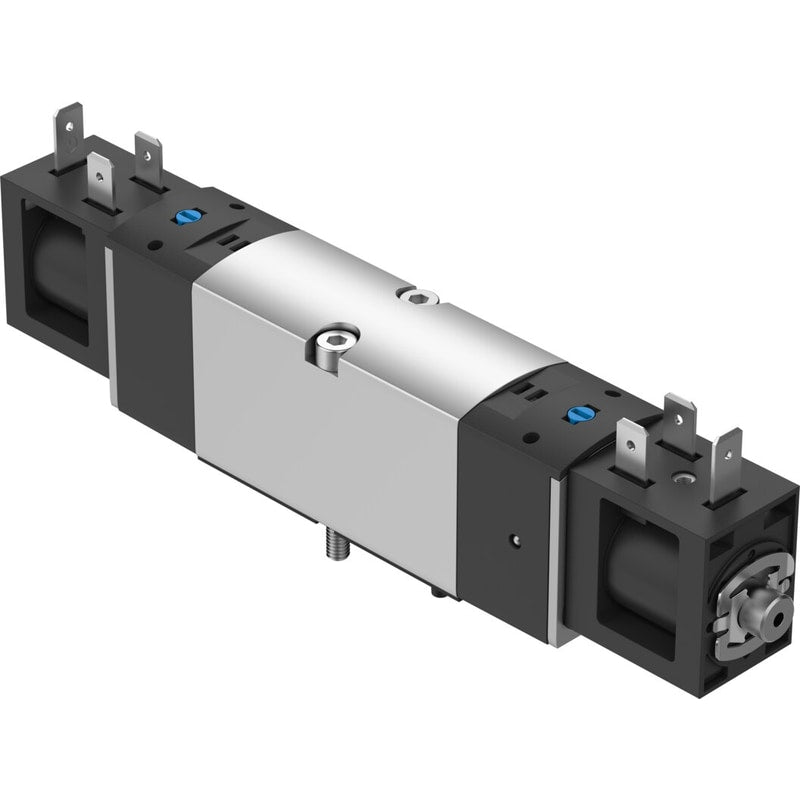

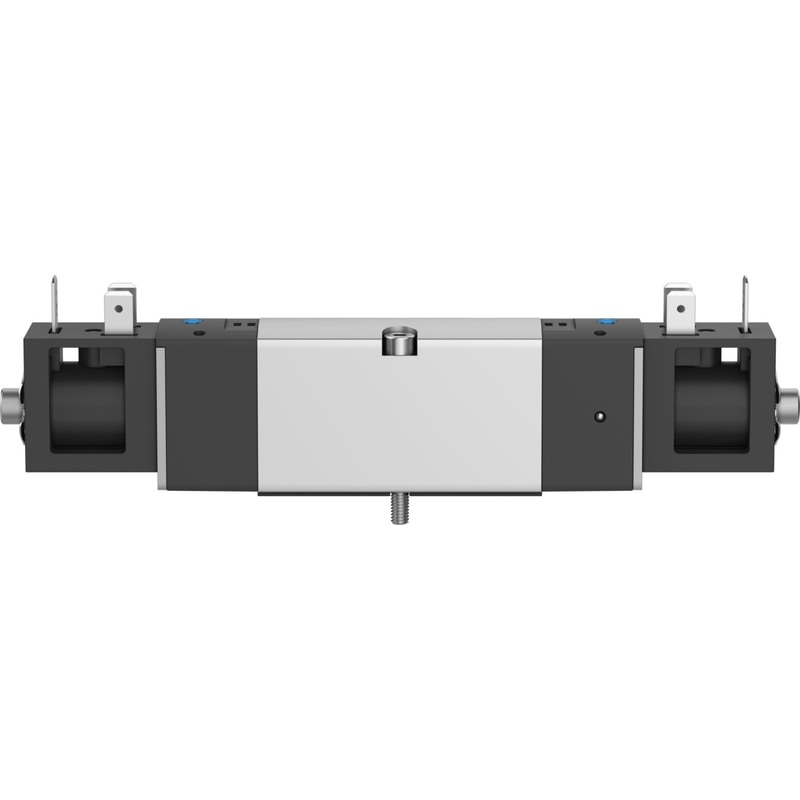

Solenoid valve
VSVA-BK-B52-D-A1-1B2
8150871
GTIN 4052568606015
Vendor Festo
- Valve function
- 5/2, bistable
- Normal nominal flow rate (normalized to DIN 1343)
- 900 l/min
- Pneumatic connection 1
- Sub-base, size 26 mm as per ISO 15407-1
- Actuation type
- Electrical
Regular price
$137.64
Unit price
VSVA-BK-B52-D-A1-1B2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
VSVA-BK-B52-D-A1-1B2
Regular price
$137.64
Unit price
VSVA-BK-B52-D-A1-1B2 is backordered and will ship as soon as it is back in stock.
| Valve function | 5/2, bistable |
|---|---|
| Actuation type | Electrical |
| Valve size | 26mm |
| Standard nominal flow rate | 900l/min |
| Pneumatic working port | Sub-base, size 26 mm according to ISO 15407-1 |
| Operating voltage | 24V DC |
| Operating pressure | 0.3MPa |
| Operating pressure | 3bar |
| Structural design | Piston slide with sealing ring |
| Degree of protection | IP65 |
| Nominal width | 6.4mm |
| Exhaust air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | Any |
| Conforms to standard | ISO 15407-1 |
| Manual override | Detenting |
| Type of control | Pilot-controlled |
| Pilot air supply port | Internal |
| Flow direction | Non-reversible |

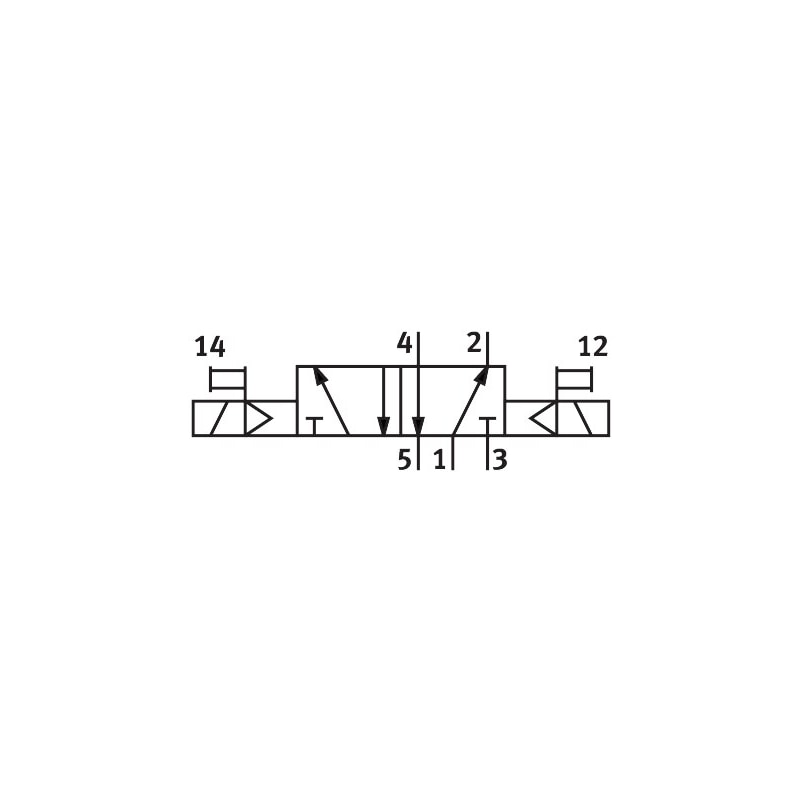

| Symbol | 00991005 |
| Lap | Underlap |
| Signal status display | With accessories |
| b-value | 0.3 |
| C value | 3.92l/sbar |
| Flow rate of pneumatic valve | 915l/min |
| Flow rate of pneumatic valve on individual sub-base | 915l/min |
| Optimized flow rate of pneumatic valve pneumatically concatenated flow | 880l/min |
| Changeover time | 10.8ms |
| Duty cycle | 100% |
| Max. positive test pulse with 0 signal | 2500µs |
| Max. negative test pulse on 1 signal | 1100µs |
| Nominal operating voltage DC | 24V |
| Coil characteristics | 24 V DC: 3.3 W |
| Permissible voltage fluctuations | +/- 10 % |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Vibration resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Temperature of medium | -5°C |
| Pilot medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -5°C |
| Max. tightening torque for valve mounting | 2.4Nm |
| Product weight | 319g |
| Electrical connection | Form B |
| Type of mounting | On sub-base |
| Venting hole connection | Not ducted |
| Pneumatic connection 1 | Sub-base, size 26 mm as per ISO 15407-1 |
| Pneumatic connection 2 | Sub-base, size 26 mm as per ISO 15407-1 |
| Pneumatic connection 3 | Sub-base, size 26 mm as per ISO 15407-1 |
| Pneumatic connection 4 | Sub-base, size 26 mm as per ISO 15407-1 |
| Pneumatic connection 5 | Sub-base, size 26 mm as per ISO 15407-1 |
| Note on materials | RoHS-compliant |
| Seals material | HNBR |
| Housing material | Wrought aluminum alloy |
| Piston slide material | Wrought aluminum alloy |
| Material of screws | Steel, galvanized |
