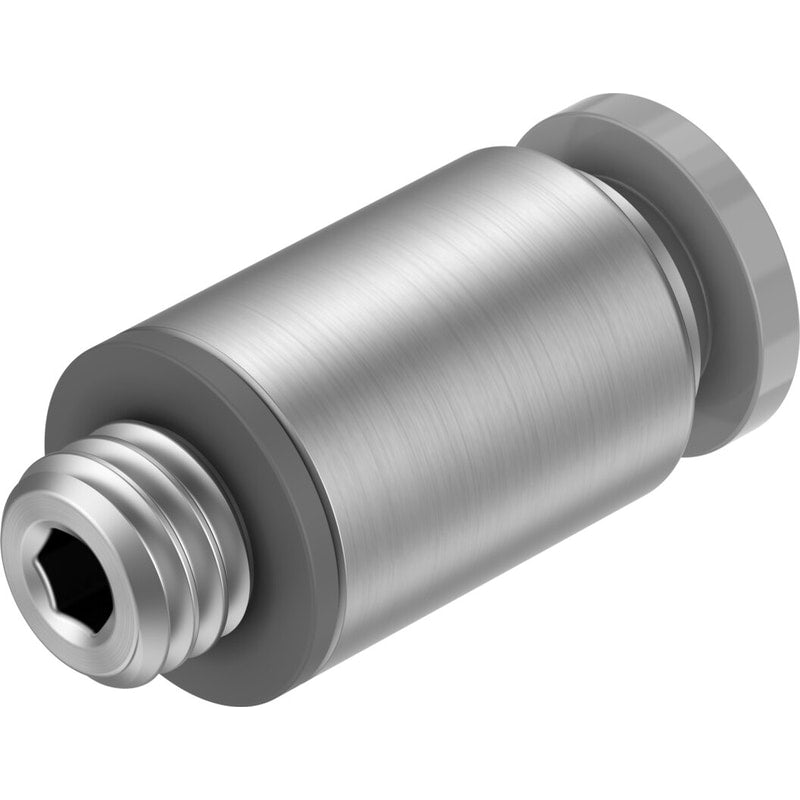

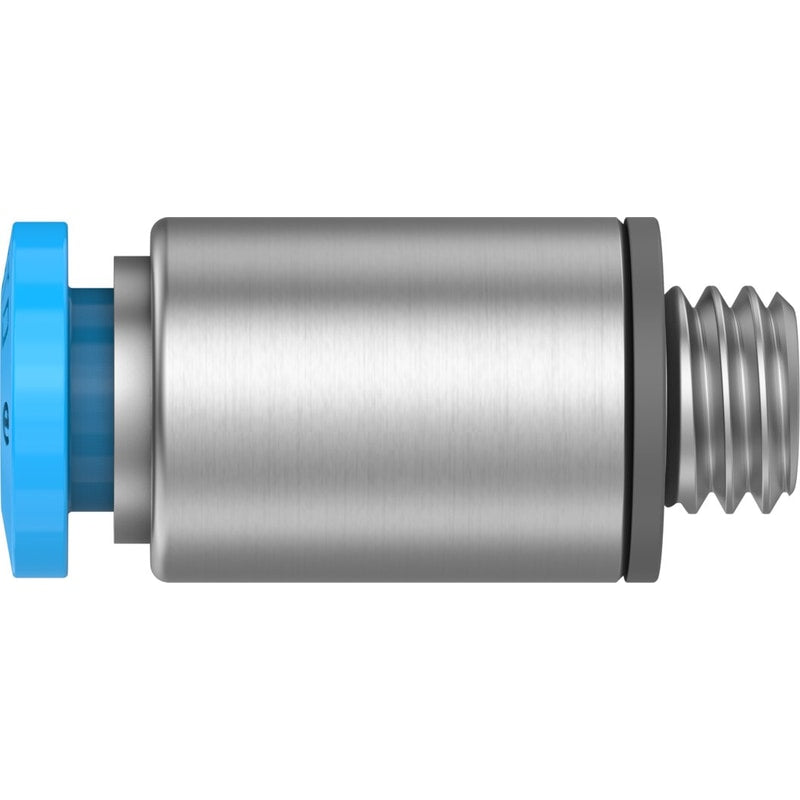

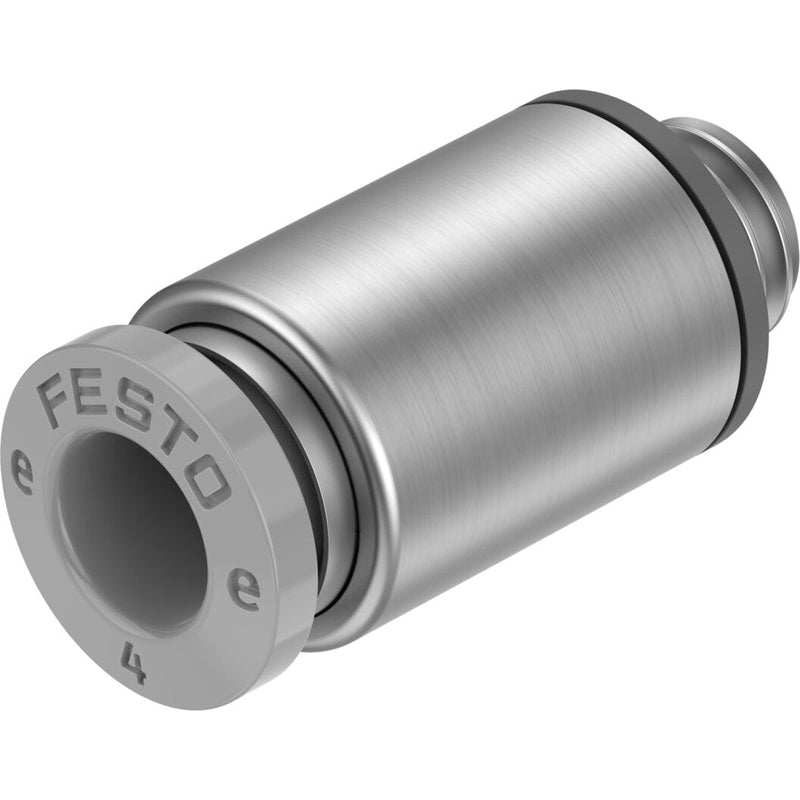

Push-in fitting
NPQE-DK-M5-Q4-F1A-P10
8144595
GTIN 4052568581107
Vendor Festo
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- Design
- Straight design
- Ambient temperature
- -5 °C - 60 °C
- Nominal width
- 2.5 mm
Regular price
$9.00
Unit price
NPQE-DK-M5-Q4-F1A-P10 Push-in fitting is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
NPQE-DK-M5-Q4-F1A-P10
Regular price
$9.00
Unit price
NPQE-DK-M5-Q4-F1A-P10 Push-in fitting is backordered and will ship as soon as it is back in stock.
| Size | Mini |
|---|---|
| Nominal width | 2.5 mm |
| Type of seal on screwed trunnion | Sealing ring |
| Mounting position | Any |
| Design | Straight design |
| Pack size | 10 |
| Structural design | Push-pull principle |
| Variants | Metals with copper, zinc or nickel as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. |
| Operating pressure for entire temperature range | -0.095 MPa ... 0.8 MPa |
| Operating pressure for entire temperature range | -0.95 bar ... 8 bar |
| Operating pressure for entire temperature range | -13.775 psi ... 116 psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS conformity | VDMA24364 zone III |
| RSBP classification to CD-0033 | F1a |
| Cleanroom class | ISO Class 4 |
| Ambient temperature | -5 °C ... 60 °C |
| Nominal tightening torque | 0.8 Nm |
| Tolerance for nominal tightening torque | ± 5 % |
| Product weight | 2.66 g |
| Pneumatic connection 1 | External thread M5 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
| Releasing ring color | Blue |
| Note on materials | RoHS-compliant |
| Housing material | High-alloy stainless steel |
| Material of threaded seal | NBR High-alloy stainless steel |
| Releasing ring material | POM |
| Material of tubing seal | NBR |
| Material of tube retaining claw | High-alloy stainless steel |
