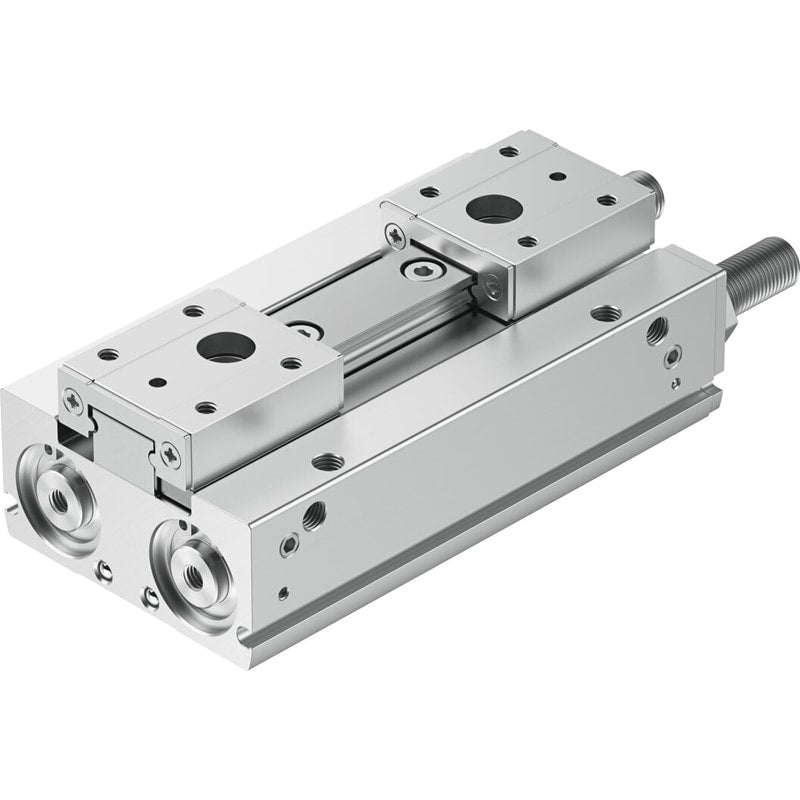

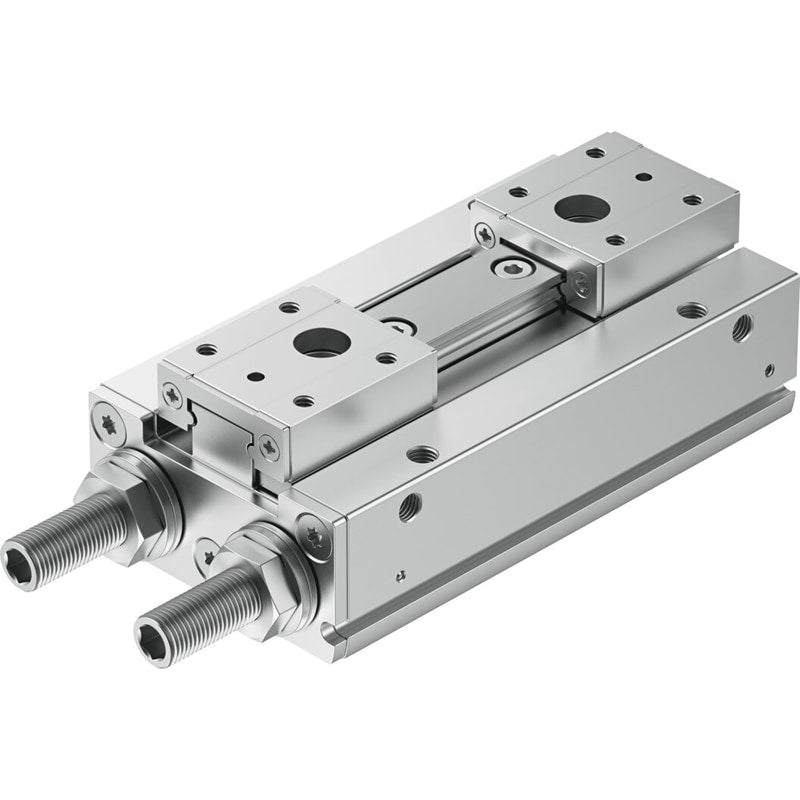

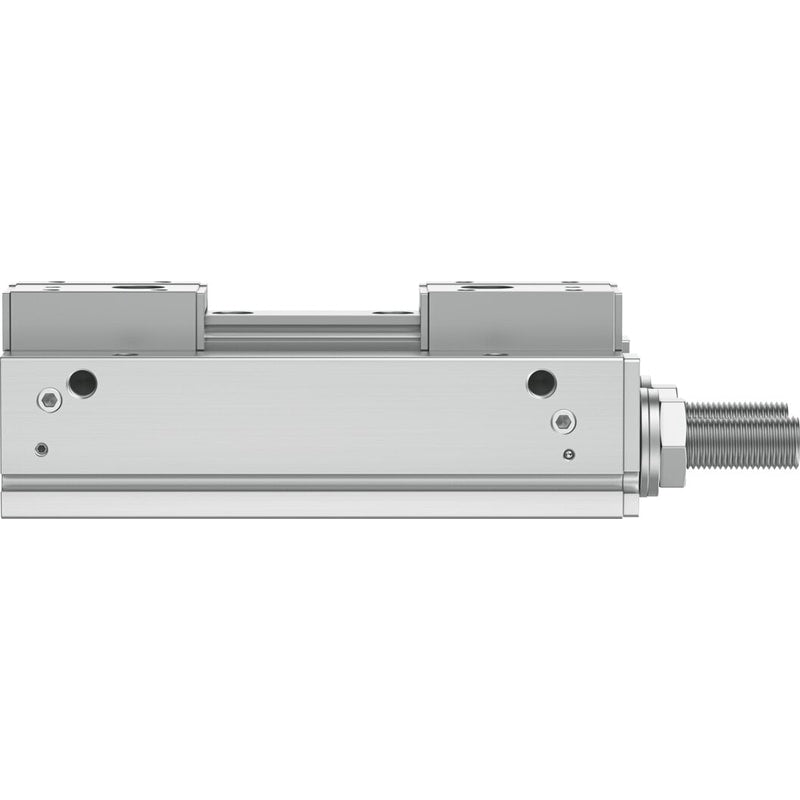

Parallel gripper
HPPF-20-40-A-S
8143426
GTIN 4052568586379
Vendor Festo
- Structural design
- Positively driven motion sequence
- Stroke per gripper jaw
- 20 mm
- Position sensing
- For proximity sensor
- Pneumatic connection
- M5
Regular price
$733.74
Unit price
HPPF-20-40-A-S is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
HPPF-20-40-A-S
Regular price
$733.74
Unit price
HPPF-20-40-A-S is backordered and will ship as soon as it is back in stock.
| Size | 20 |
|---|---|
| Complete stroke | 40 mm |
| Stroke per gripper jaw | 20 mm |
| Max. gripper jaw angular play ax, ay | 0 deg |
| Max. gripper jaw backlash Sz | 0 mm |
| Pneumatic gripper repetition accuracy | ≤0.06 mm |
| Number of gripper jaws | 2 |
| Actuator system | Pneumatic |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Cushioning | Elastic cushioning rings/pads at both ends |
| Gripper function | Parallel |
| Gripping force backup | Without |
| Structural design | Positively driven motion sequence |
| Guide | Ball guide |
| Position sensing | For proximity sensor |
| Symbol | 00991894 |
| Variants | Metals with copper, zinc or nickel by mass as main constituent are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils. |
| Operating pressure | 0.1 MPa ... 0.7 MPa |
| Operating pressure | 1 bar ... 7 bar |
| Operating pressure | 14.5 psi ... 101.5 psi |
| Max. operating frequency of pneumatic gripper | 1 Hz |
| Min. opening time at 6 bar | 120 ms |
| Min. closing time at 6 bar | 110 ms |
| Max. mass per external gripper finger | 625 g |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 7 according to ISO 14644-1 |
| Ambient temperature | -10 °C ... 60 °C |
| Gripping force per gripper jaw at 6 bar, opening | 346.6 N |
| Gripping force per gripper jaw at 6 bar, closing | 346.6 N |
| Gripping force per gripper jaw at 6 bar, opening | 173.3 N |
| Gripping force per gripper jaw at 6 bar, closing | 173.3 N |
| Maximum force on gripper jaw Fz, static | 320 N |
| Max. torque Mx | 6 Nm |
| Max. torque My | 3 Nm |
| Max. torque Mz | 3 Nm |
| Product weight | 993 g |
| Type of mounting | Direct mounting via through-hole | Direct fastening via thread |
