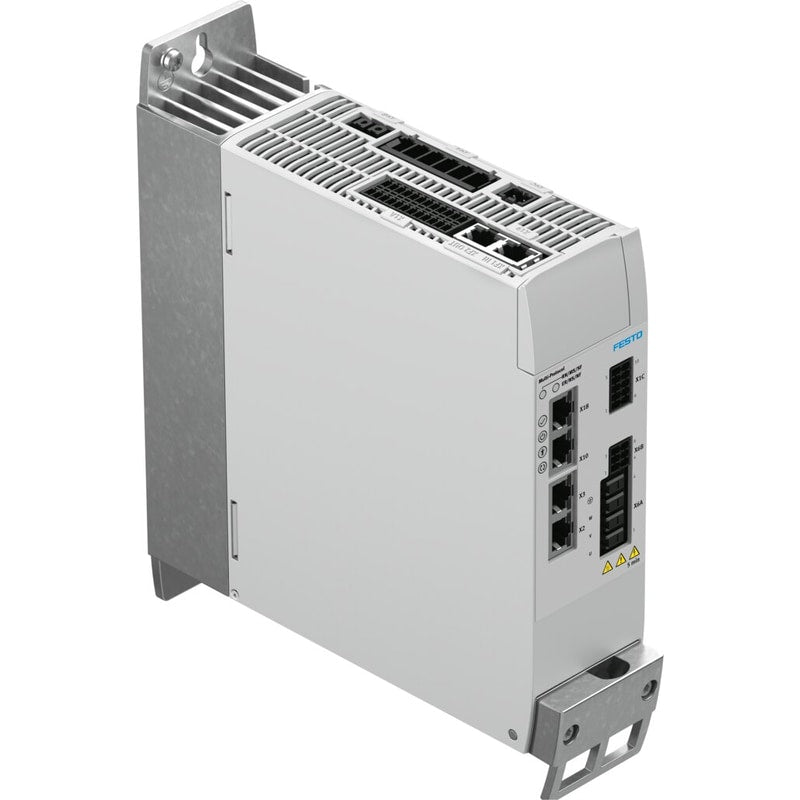

Servo drive
CMMT-AS-C7-11A-P3-MP-S1
8143168
GTIN 4052568598747
Vendor Festo
- Nominal current load supply
- 9 A
- Nominal operating voltage AC
- 400 V
- Nominal operating voltage phases
- 3-phase
- Controller nominal power
- 4000 VA
Regular price
$2,809.32
Unit price
CMMT-AS-C7-11A-P3-MP-S1 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
CMMT-AS-C7-11A-P3-MP-S1
Regular price
$2,809.32
Unit price
CMMT-AS-C7-11A-P3-MP-S1 is backordered and will ship as soon as it is back in stock.
| Type of mounting | Mounting plate, screwed on |
|---|---|
| Mounting position | Free convection |
| Product weight | 4100g |
| Display | LED green/yellow/red |
| Control elements | Optional: CDSB operating unit |
| Conforms to standard | EN 61800-3 |
| Based on norm | EN 50581 |
| Certification | RCM compliance mark |
| KC characters | KC EMC |
| CE marking (see declaration of conformity) | As per EU EMC directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| Certificate issuing authority | German Technical Control Board (TÜV) Rheinland 01/205/5640.00/18 |
| Storage temperature | -25°C |
| Ambient temperature | 0°C |
| Note on ambient temperature | Above an ambient temperature of 40 °C, the power must be reduced by 3%/°C. |
| UL-ambient temperature | 0°C |
| Relative air humidity | 5 - 90 % |
| Max. installation height | 2000m |
| Information on max. installation height | 1% power reduction/100 m above 1000 m. |
| Degree of protection | IP20 |
| Protection class | I |
| Overvoltage category | III |
| Contamination level | 2 |
| Surge resistance | 6kV |
| Note on materials | RoHS-compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Nominal operating voltage phases | 3-phase |
| Nominal operating voltage AC | 400V |
| Permissible voltage fluctuations | +/- 10 % |
| Input voltage range AC | 200V |
| Mains frequency | 48Hz |
| Nominal current load supply | 9A |
| Peak current, load supply | 27A |
| Active PFC | no |
| Line filter | Integrated |
| System voltage to EN 61800-5-1 | 300V |
| Max. short circuit protection of mains | 10kA |
| Mains types | TN |
| Nominal voltage, load supply DC | 560V |
| Load supply permissible range | ± 10 % |
| Max. DC link voltage | 800V |
| Braking resistor, integrated | 47Ohm |
| Pulse power of braking resistor | 13.6kVA |
| Pulse energy for braking resistor | 1200Ws |
| Braking resistor nominal power (IEC) | 100W |
| Braking resistor, external | 60Ohm |
| Max. continuous output of the external braking resistor (IEC) | 1500W |
| Nominal voltage, logic supply DC | 24V |
| Permissible range of logic voltage | ± 20 % |
| Max. current consumption for logic supply without clamping brake | 0.5A |
| Max. current consumption for logic supply with parking brake | 2A |
| Max. current consumption for logic supply with clamping brake and I/O | 2.5A |
| Output voltage range AC | 3x (0 – input) V |
| Nominal current per phase, effective | 7A |
| Peak current per phase, effective | 21A |
| Max. peak current duration | 2s |
| Controller nominal power | 4000VA |
| Peak power | 12000VA |
| Output frequency | 0Hz |
| Max. length of motor cable without ext. mains filter | 25m |
| Max. output current of holding brake | 1.5A |
| Max. voltage drop from logic supply to brake output | 1V |
| Number of inputs for motor temperature sensor | 1 |
| Controller operating mode | Cascade control |
| Mode of operation | Field-oriented regulation |
| Ethernet interface, function | Parameterization and commissioning |
| Ethernet interface, protocol | TCP/IP |
| Fieldbus interface, protocol | EtherCAT |
| Fieldbus interface, function | Bus connection, incoming/forwarding |
| Fieldbus coupling | EtherCAT |
| Communication profile | CiA402 |
| Process interfacing | AC1: Adjustable-Speed Drives |
| Fieldbus interface, transmission rate | 100 Mbit/s |
| Fieldbus interface, connection type | 2x socket |
| Fieldbus interface, connection technology | RJ45 |
| Encoder interface, function | BiSS-C |
| Encoder interface 2, function | Incremental encoder |
| Synchronization interface, function | Encoder emulation A/B/Z |
| Encoder interface output, characteristics | 1 MHz maximum output frequency |
| Encoder interface input, characteristics | 1 MHz maximum output frequency |
| Number of digital logic inputs | 12 |
| Input switching logic | PNP (positive switching) |
| Characteristics of logic input | Freely configurable in some cases |
| Logic input specification | Based on IEC 61131-2, type 3 |
| Work range of logic input | -3V |
| Number of high-speed logic inputs | 2 |
| Time resolution of high-speed logic inputs | 1µs |
| Number of digital logic outputs 24 V DC | 6 |
| Switching logic at outputs | PNP (positive switching) |
| Characteristics of digital logic outputs | Freely configurable in some cases |
| Max. current of digital logic outputs | 20mA |
| Number of high-speed switching outputs | 2 |
| Time resolution of high-speed switching outputs | 1µs |
| Number of floating switching outputs | 1 |
| Max. current of the floating switching outputs | 50mA |
| Number of analog setpoint inputs | 1 |
| Characteristics of setpoint inputs | Differential inputs |
| Work range of setpoint input | ± 10 V |
| Operating range of analog inputs | ± 10 V |
| Impedance of setpoint input | 70kOhm |
| Safety function | Safe brake control (SBC) |
| Safety integrity level (SIL) | Safe brake control (SBC)/SIL 3/SILCL 3 |
| Performance Level (PL) | Safe brake control (SBC)/category 3, performance level e |
| Diagnostic coverage | 97% |
| SFF safe failure fraction | 99% |
| Hardware fault tolerance | 1 |
| Number of safe 2-pin inputs | 2 |
| Number of diagnostic outputs | 2 |
