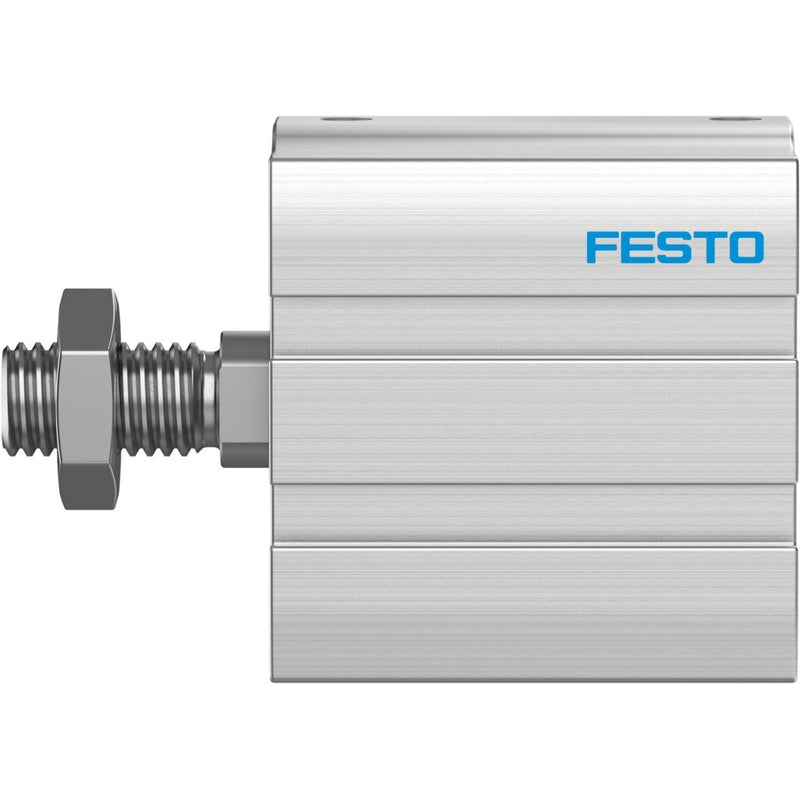

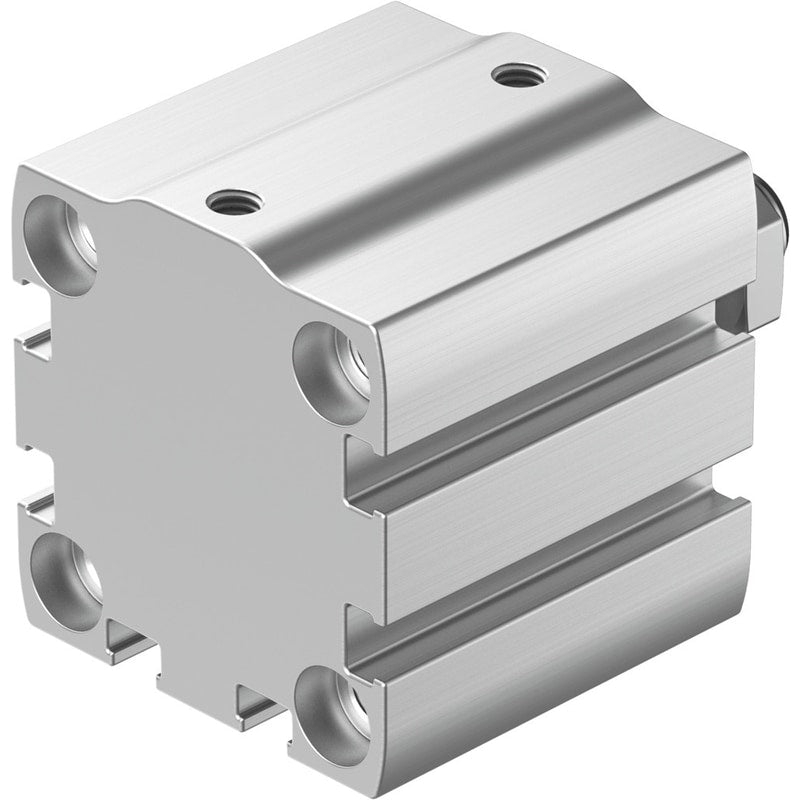

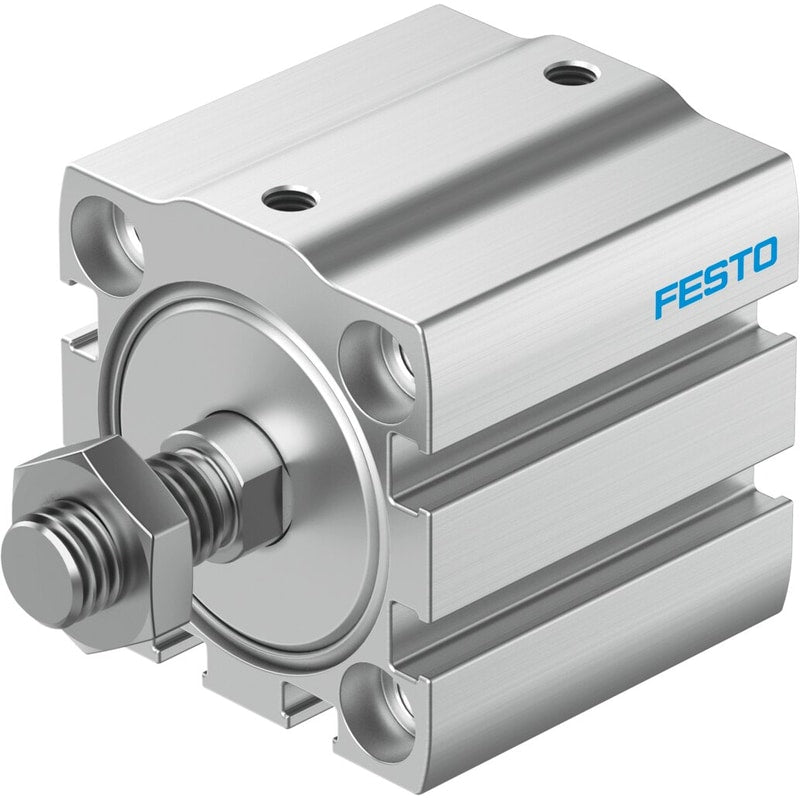

Compact cylinder
ADN-S-32-35-A-P-A-F1A
8142872
GTIN 4052568571375
Vendor Festo
- Mode of operation
- Double-acting
- Piston diameter
- 32 mm
- Theoretical force at 6 bar, advancing
- 483 N
- Stroke
- 35 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
