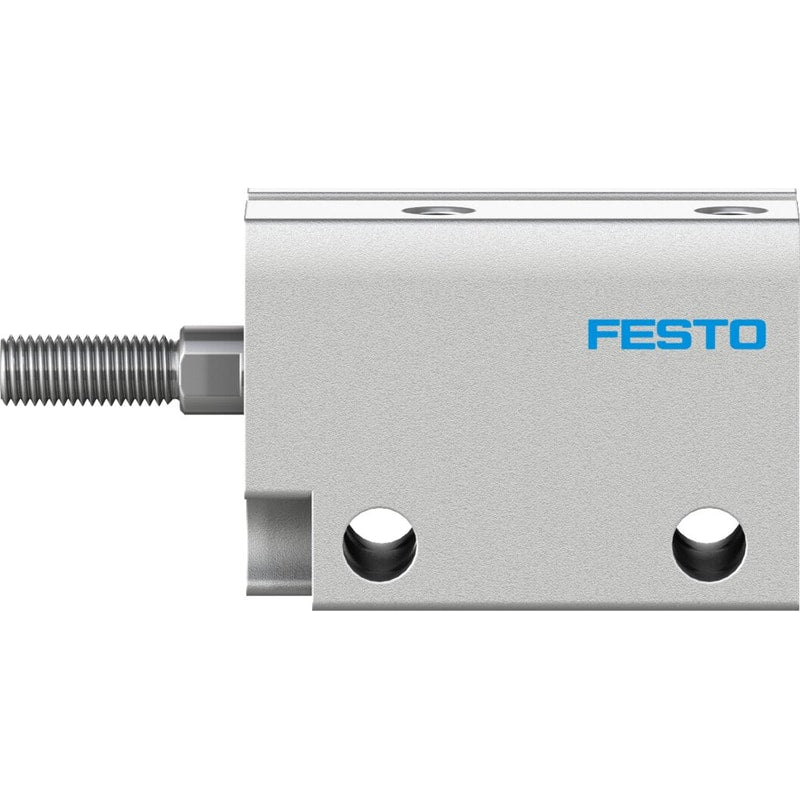

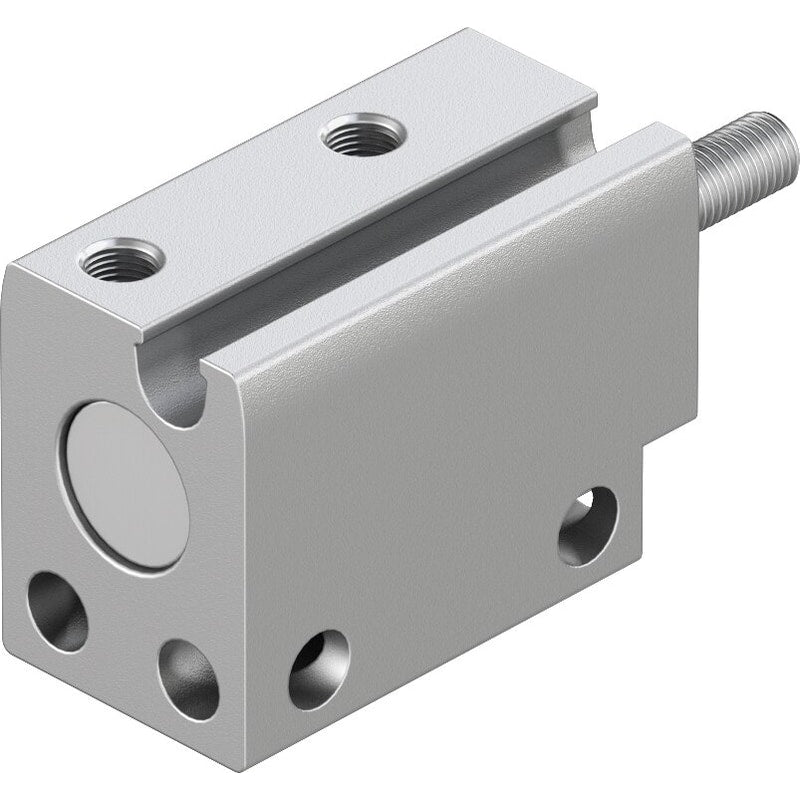

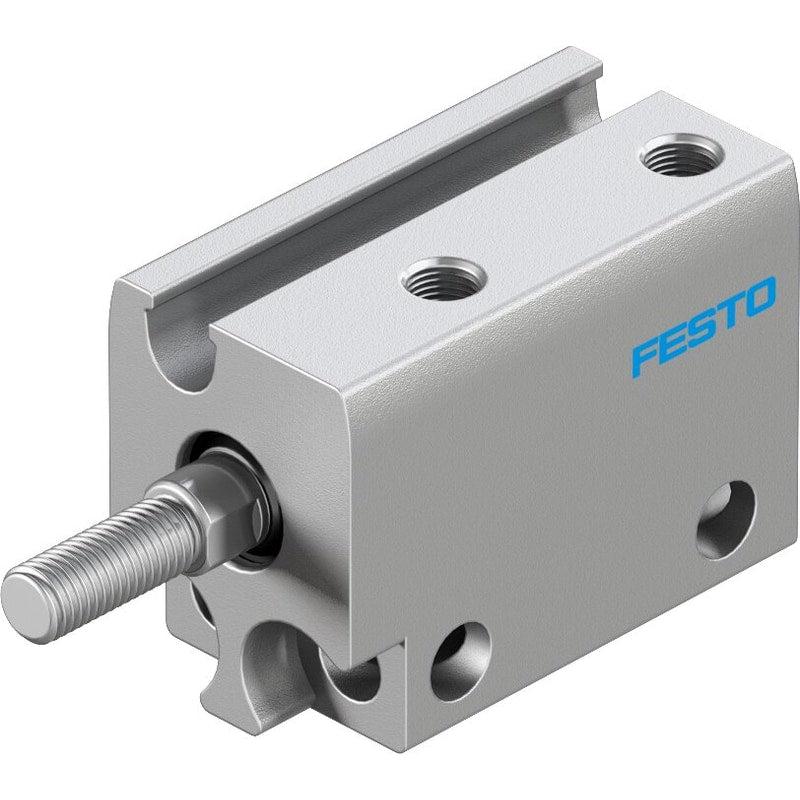

Compact cylinder
ADN-S-6-5-A-A-F1A
8142515
GTIN 4052568570439
Vendor Festo
- Mode of operation
- Double-acting
- Piston diameter
- 6 mm
- Theoretical force at 6 bar, advancing
- 17 N
- Stroke
- 5 mm
- Cushioning
- No cushioning
Regular price
$44.86
Unit price
ADN-S-6-5-A-A-F1A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
ADN-S-6-5-A-A-F1A
Regular price
$44.86
Unit price
ADN-S-6-5-A-A-F1A is backordered and will ship as soon as it is back in stock.
| Stroke | 5 mm |
|---|---|
| Piston diameter | 6 mm |
| Cushioning | No cushioning |
| Mounting position | Any |
| Mode of operation | Double-acting |
| Piston rod end | External thread |
| Structural design | Piston Piston rod |
| Position sensing | For proximity sensor |
| Symbol | 00991216 |
| Variants | Recommended for production facilities for the manufacture of lithium-ion batteries Piston rod at one end |
| Operating pressure | 0.2 MPa ... 0.8 MPa |
| Operating pressure | 2 bar ... 8 bar |
| Operating pressure | 21.75 psi ... 116 psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| RSBP classification to CD-0033 | F1a |
| Cleanroom class | ISO Class 6 |
| Ambient temperature | -10 °C ... 60 °C |
| Impact energy in the end positions | 0.006 J |
| Theoretical force at 6 bar, retracting | 9.4 N |
| Theoretical force at 6 bar, advancing | 17 N |
| Moving mass | 1.6 g |
| Product weight | 10.9 g |
| Type of mounting | With through-hole |
| Pneumatic connection | M3 |
| Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy |
| Material of dynamic seals | NBR TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized Anodized |
| Piston rod material | High-alloy stainless steel |
