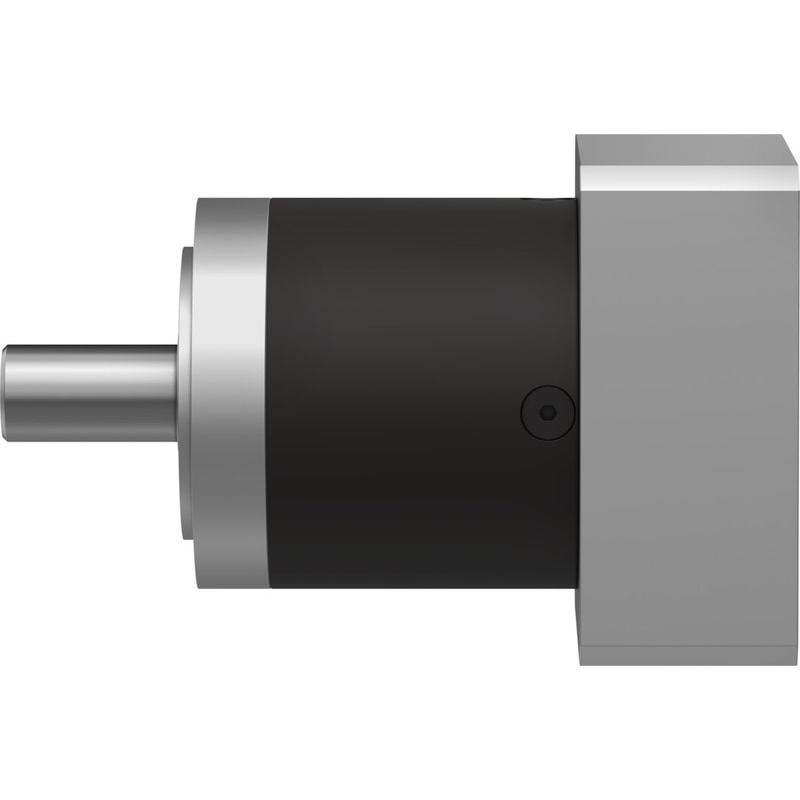

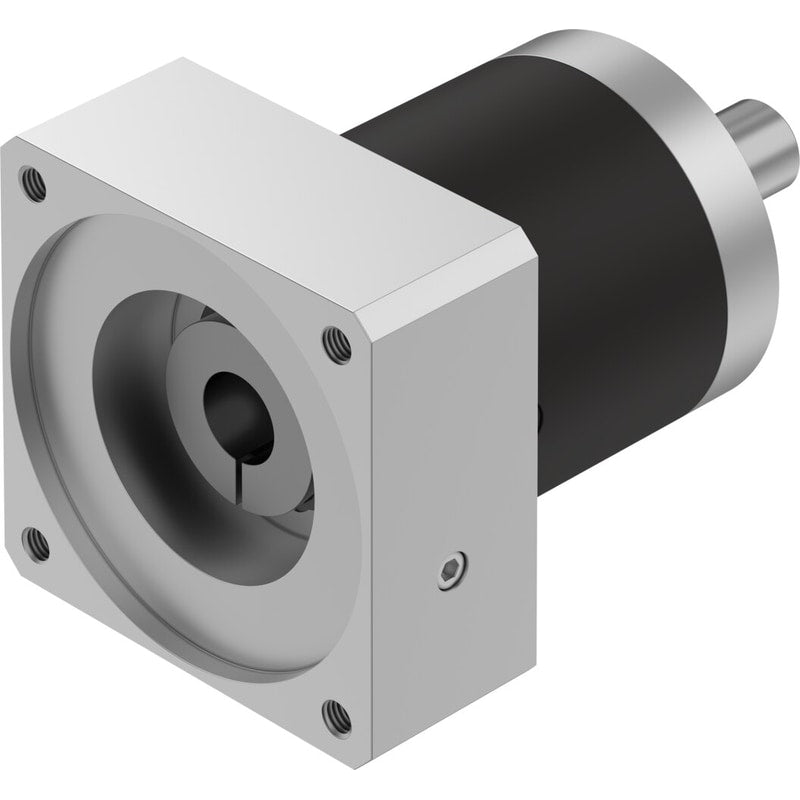

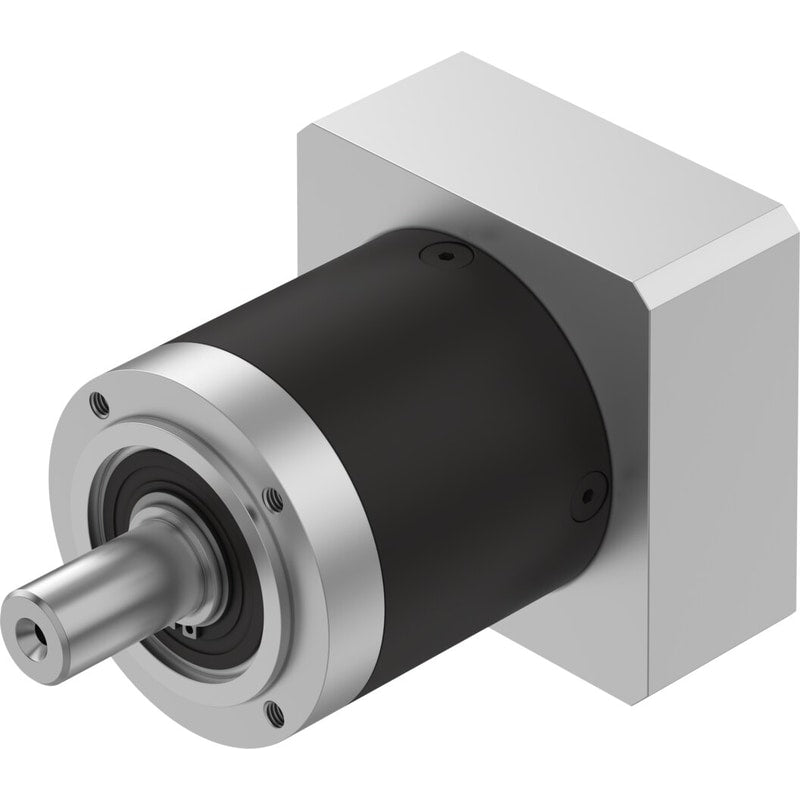

Gear unit
EMGA-80-P-G12-SAS-100
8141751
GTIN 4052568565305
Vendor Festo
- Continuous output torque
- 120 Nm
- Max. actuator speed
- 7000 1/min
- Torsional rigidity
- 10.2 Nm/arcmin
- Gear ratio
- 12:1
- Gearbox type
- Planetary gear
Regular price
$1,184.13
Unit price
EMGA-80-P-G12-SAS-100 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
Factory shipments may take up to one week. Festo Fast items typically ship the next business day. Contact us for specific shipping estimates.
EMGA-80-P-G12-SAS-100
Regular price
$1,184.13
Unit price
EMGA-80-P-G12-SAS-100 is backordered and will ship as soon as it is back in stock.
| Gearbox flange size | 80 mm |
|---|---|
| Motor flange size | 100 mm |
| Torsional backlash | 0.15 deg |
| Gearbox type | Planetary gear |
| Gear ratio | 12:1 |
| Max. actuator speed | 7000 1/min |
| Gearbox operating temperature | -25 °C ... 90 °C |
| LABS conformity | VDMA24364-B2-L |
| Degree of protection | IP54 |
| Continuous output torque | 120 Nm |
| Mass moment of inertia, gearbox | 0.589 kgcm² |
| Max. output torque | 192 Nm |
| Max. efficiency | 96 % |
| Torsional rigidity | 10.2 Nm/arcmin |
| Product weight | 2800 g |
| Gearbox interface, output shaft | 80G |
| Gearbox interface, actuator | 100A |
| Note on materials | RoHS-compliant |
